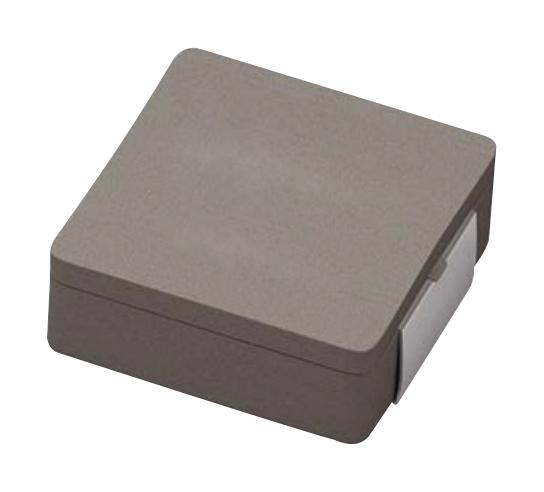

KEMET MPX1D2213L2R2 Power Inductor
The KEMET MPX power inductor is a surface mount component designed for high power applications. It features a 2.2 µH inductance with a 20% tolerance, operating efficiently within a temperature range of -55°C to +155°C. Made with a composite core, it offers a shielded design, low DC resistance of 1.4 mOhms, and self-resonant frequency of 14 MHz. The inductor is well-suited for power supply smoothing, filtering, and energy storage in high-performance electronic circuits, ensuring reliable operation in demanding industrial environments.
KEMET MPX1D2213L2R2 Power Inductor Specifications:
- Inductance: 2.2 µH
- Tolerance: 20%
- Temperature Range: -55°C to +155°C
- Core Material: Composite
- Shielded: Yes
- Dimensions: 22mm x 13mm (±0.5mm)
- DC Resistance: 1.4 mOhms
- Self-Resonant Frequency: 14 MHz
- Maximum Temperature Rise: 40K
- Current (Irms): 59A
- Current (Isat): 38A at 20% inductance drop, 56A at 30% drop
- Packaging: T&R, 330mm reel, quantity 50
- RoHS Compliant: Yes
Buy the KEMET MPX1D2213L2R2 – Reliable Power Inductor for Industrial Applications
Purchase the KEMET MPX power inductor online today and ensure stable power management in your electronic designs. With a 2.2 µH inductance, shielded construction, and high current capacity, this surface mount component is perfect for industrial, automation, and power supply applications. RoHS compliant and designed for durability, it offers a wide temperature range of -55°C to +155°C, low DC resistance, and a self-resonant frequency of 14 MHz. Buy now for high-performance, reliable inductors that meet your industrial needs.
Get KEMET MPX1D2213L2R2 today—built for reliable power performance in high-demand industrial environments.
Frequently Asked Questions
Where can I buy KEMET MPX1D2213L2R2?
You can click on the BUY or RFQ button to purchase MPX1D2213L2R2 from an authorized KEMET distributor.
How do I troubleshoot issues or seek technical support for part MPX1D2213L2R2?
You can download the MPX1D2213L2R2 datasheet or visit the KEMET website for support.
Who is the manufacturer of MPX1D2213L2R2?
KEMET
