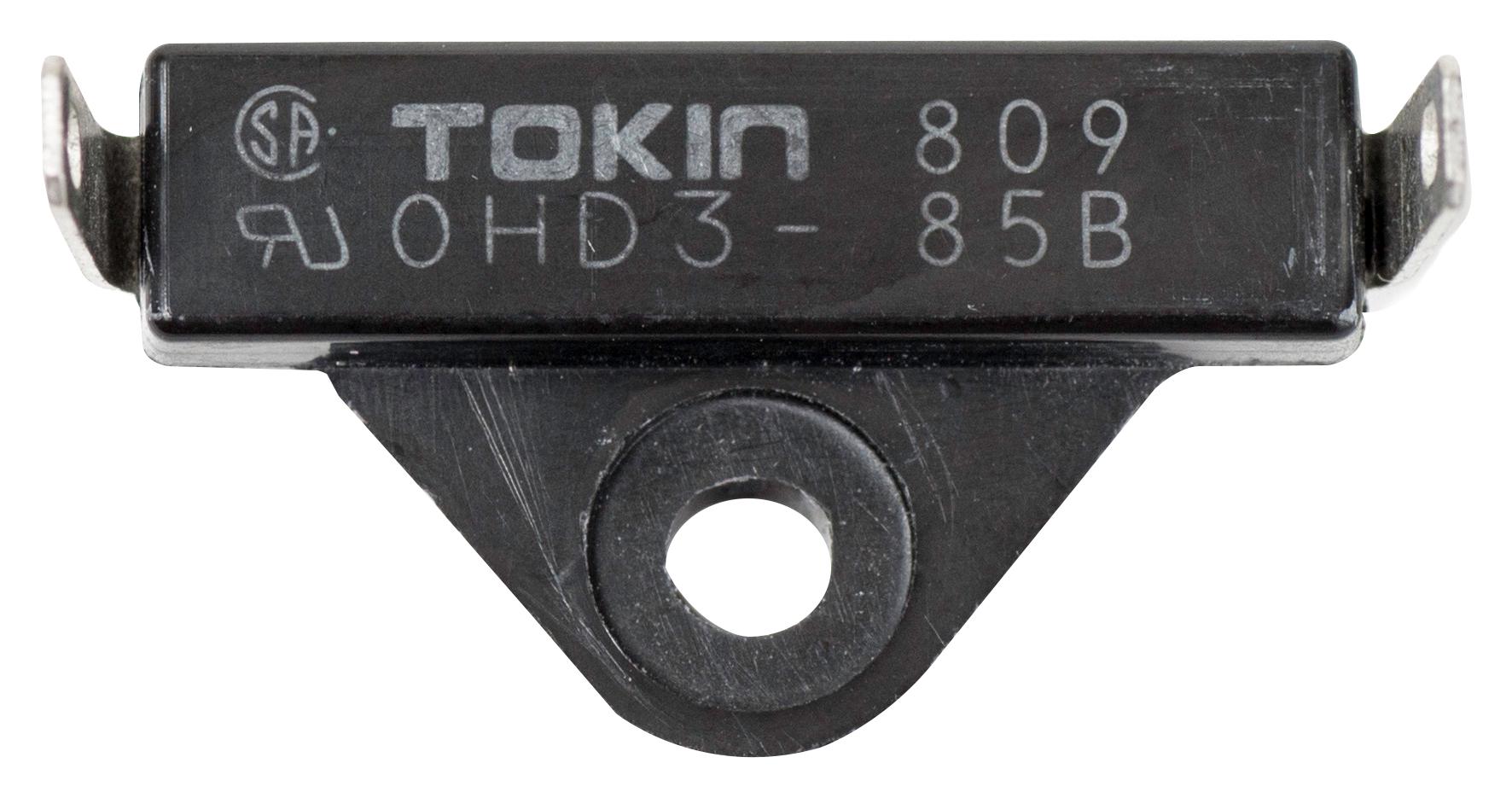

KEMET OHD3115M Thermal Reed Switch
The KEMET OHD Thermal Reed Switch with radial tab leads offers high reliability, fast response, and a long operational life. Designed for robust environmental durability, it operates accurately at 115°C with a temperature range of -20°C to +150°C. This switch features make contact type, high voltage and current ratings, and UL, CSA, TUV certifications. Its compact dimensions include a maximum length of 27mm and height of 6mm, making it ideal for demanding applications requiring precise thermal switching and environmental resilience.
KEMET OHD3115M Thermal Reed Switch Specifications:
- Switching Temperature: 115°C +/-5°C
- Temperature Range: -20°C to +150°C
- Contact Type: Make
- Voltage DC: 2500 VAC/1 min, 3000 VAC/1 sec
- Voltage AC: 110 VAC MAX (Opening/Closing)
- Current: 0.3 Amps MAX (Opening/Closing), 0.1 mAmps MIN
- Contact Resistance: 150 milliohms MAX
- Max Power: 6 W (AC/DC)
- Max Voltage: 110 V (AC/DC)
- Dimensions: Length 27mm MAX, Height 6mm
- Weight: 28 grams
- Mounting: Radial Tab Leads
- Certifications: UL, CSA, TUV
- RoHS: Yes
- REACH: Yes
Buy the Buy KEMET Thermal Reed Switch Part Number OHD3115M Online
Purchase the KEMET Thermal Reed Switch online today to ensure high efficiency, environmental durability, and reliable thermal control. Ideal for applications demanding precise temperature switching of 115°C, this switch features radial tab leads, long operational life, and certifications for safety and quality. With quick response and durable design, it guarantees optimal operation in demanding environments. Buy now and ensure your system’s reliable temperature management with this high-quality, certified thermal switch from KEMET.
Buy KEMET OHD3115M now and experience unmatched reliability and precise thermal switching performance.
