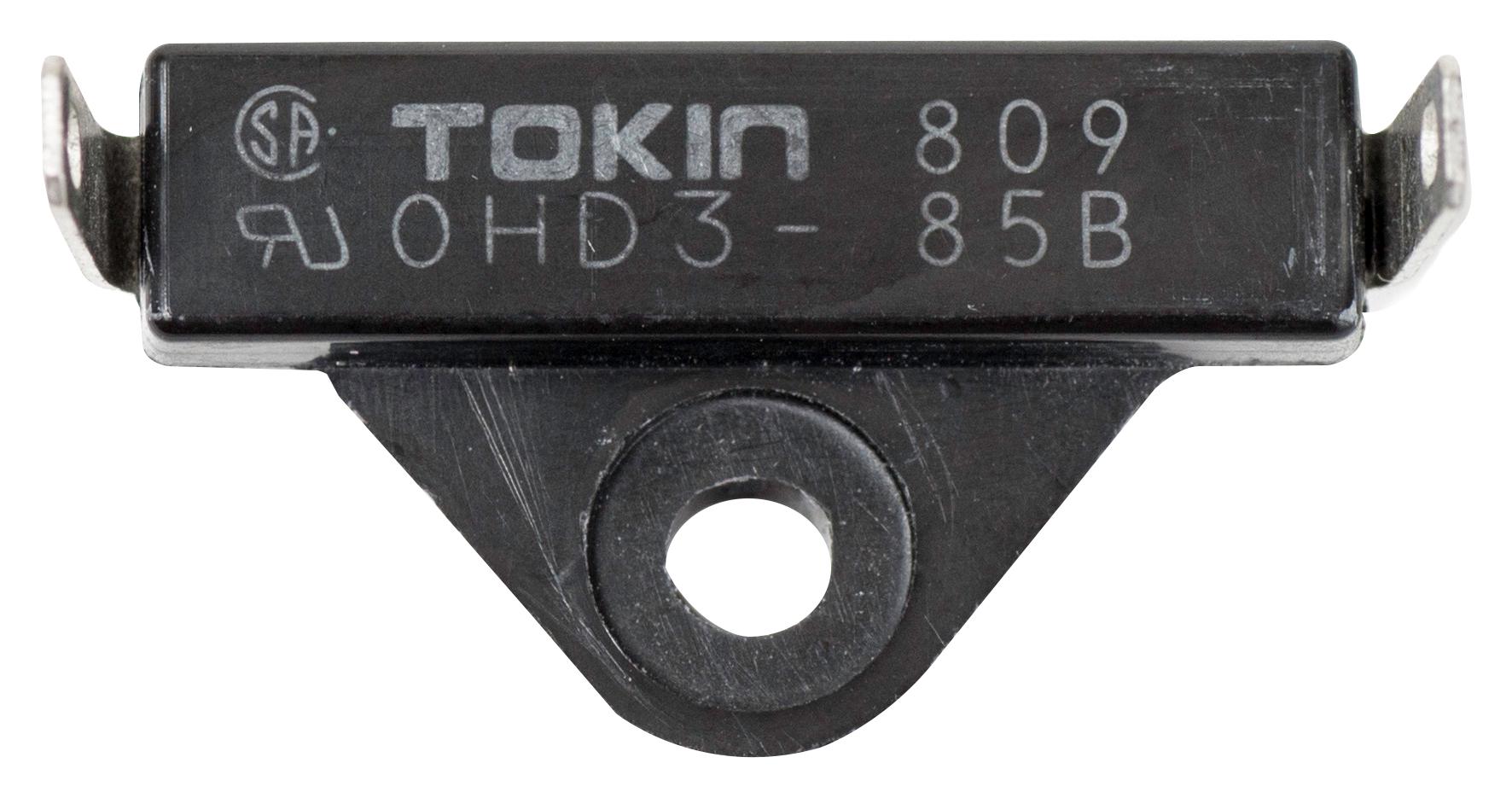

KEMET OHD375M Thermal Reed Switch
The KEMET OHD thermal reed switch offers high reliability, fast response, and excellent environmental durability for precise temperature control. Designed with a radial tab mounting style, it features a 75°C switching temperature tolerance of ±5°C and operates within a temperature range of -20°C to +150°C. The switch provides make contact in response to thermal stimuli, with a maximum voltage of 110 VAC/DC and current of 0.3 A, making it suitable for various high-precision applications requiring long operational life and environmental resistance. RoHS and REACH compliant, with UL, CSA, and TUV certifications, it ensures safety and quality.
KEMET OHD375M Thermal Reed Switch Specifications:
- Switching Temperature: 75°C ±5°C
- Temperature Range: -20°C to +150°C
- Contact Type: Make
- Mounting Style: Radial Tab
- Dimensions: Length 27 mm MAX, Height 6 mm
- Voltage DC: 2500 VAC/1 minute, 3000 VAC/1 second
- Voltage AC: 110 VAC MAX (Opening/Closing)
- Current: 0.3 A MAX (Opening/Closing), 0.1 mA MIN
- Contact Resistance: 150 mOhms MAX
- Max Power: 6 W (AC/DC)
- Max Voltage: 110 V (AC/DC)
- Differential Temperature: 10°C MAX
- Weight: 28 g
- RoHS: Yes
- REACH: Yes
- Certifications: UL, CSA, TUV
Buy the KEMET Series OHD Thermal Switch: OHD375M
Order the KEMET OHD375M thermal reed switch online today and enjoy fast delivery, competitive pricing, and a product engineered for high reliability and environmental durability. This switch features a radial tab mounting style, a precise 75°C switching temperature with ±5°C tolerance, and operates within a versatile temperature range of -20°C to +150°C. Certified by UL, CSA, and TUV, it ensures safe, long-lasting performance in demanding thermal control applications. Perfect for automation, HVAC, and industrial systems requiring accurate and durable thermal switching components.
Buy KEMET OHD375M thermal reed switch now and experience unmatched reliability, high-speed response, and precise temperature control for your applications.
