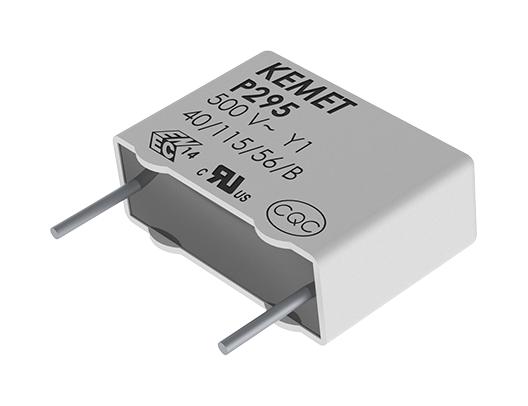

KEMET P295BE471M500A Metallized Paper Film Capacitor
The P295BE471M500A is a metallized paper film capacitor suitable for automotive safety applications. It features a capacitance of 470 pF with 20% tolerance, rated for 500 VAC and 1500 VDC. Designed for high reliability, it can operate within a temperature range of -40°C to +115°C. With RoHS compliance and various safety certifications including UL and ENEC, it offers EMI safety and durability in radial style with lead spacing of 15mm, making it ideal for demanding electronic and automotive circuits.
KEMET P295BE471M500A Metallized Paper Film Capacitor Specifications:
- Capacitance: 470 pF ±20%
- Voltage Rating: 500 VAC, 1500 VDC
- Temperature Range: -40°C to +115°C
- Lead Spacing: 15mm ±0.4mm
- Dielectric: Metallized Paper
- Style: Radial
- RoHS: Yes
- Safety Class: Yl
- Certification: UL, ENEC, cUL, CQC, AEC-Q200
- Dissipation Factor: 1.3% at 1kHz
- Insulation Resistance: 12 GOhms
- Maximum Dimensions: Length 125mm, Width 18mm, Thickness 5.5mm
- Lead Wire: Leads
- Rated Temperature: 115°C
- Max dV/dt: 2000 V/us
- Packaging: Bulk, quantity 500
Buy the YAGEO Series 295 Metallized Paper Film Capacitor: P295BE471M500A
Purchase the YAGEO P295BE471M500A metallized paper film capacitor online today and ensure optimal safety and performance for your automotive and electronic projects. This high-quality capacitor offers a capacitance of 470 pF with 20% tolerance, rated for 500 VAC and 1500 VDC, designed to operate efficiently within a temperature range of -40°C to +115°C. Its radial style with 15mm lead spacing makes installation straightforward, while RoHS compliance guarantees environmental safety and adherence to industry standards. Ideal for sensitive safety-critical applications.
Buy YAGEO P295BE471M500A now and experience reliable automotive safety performance with high voltage capacity and excellent EMI safety features.
Frequently Asked Questions
Where can I buy KEMET P295BE471M500A?
You can click on the BUY or RFQ button to purchase P295BE471M500A from an authorized KEMET distributor.
How do I troubleshoot issues or seek technical support for part P295BE471M500A?
You can download the P295BE471M500A datasheet or visit the KEMET website for support.
Who is the manufacturer of P295BE471M500A?
KEMET
