KEMET P295BE821M500A High-Voltage Safety Capacitor
The P295 Series consists of self-extinguishing multilayer metallized paper capacitors designed for automotive safety and high-voltage applications. These safety capacitors meet UL 94 V-0 standards, withstand voltage tests up to 4,000 VAC for 60 seconds, and are approved by ENEC, UL, cUL, and CQC. With a rated voltage of 500 VAC at 50/60 Hz, they offer capacitance from 470 pF to 4,700 pF with ±20% tolerance. Features include high dV/dt capability, excellent self-healing, and broad temperature range from -40°C to +115°C, making them highly reliable for demanding environments.
KEMET P295BE821M500A High-Voltage Safety Capacitor Specifications:
- Capacitance: 820 pF
- Capacitance Tolerance: 20%
- Voltage AC: 500 VAC (Y1)
- Voltage DC: 1500 VDC
- Temperature Range: -40°C to +115°C
- Rated Temperature: 115°C
- Lead Spacing: 15mm
- Dimensions: Length 18mm MAX, Height 12.5mm MAX, Thickness 5.5mm MAX
- Insulation Resistance: 12 GOhms
- Dissipation Factor: 1.3% at 1kHz
- Packaging: Bulk, Bag
- RoHS Compliant: Yes
- Safety Class: Y1
- Certifications: UL, ENEC, cUL, CQC
- Dielectric: Metallized Paper
- Style: Radial
- Features: EMI Safety, Self-extinguishing, RoHS
- Qualification: AEC-Q200
- Design Standards: IEC 60068-1 Climatic category 40/115/56
- Weight: 153g
- Performance: SRF=49 MHz
- Packaging Quantity: up to 500 units

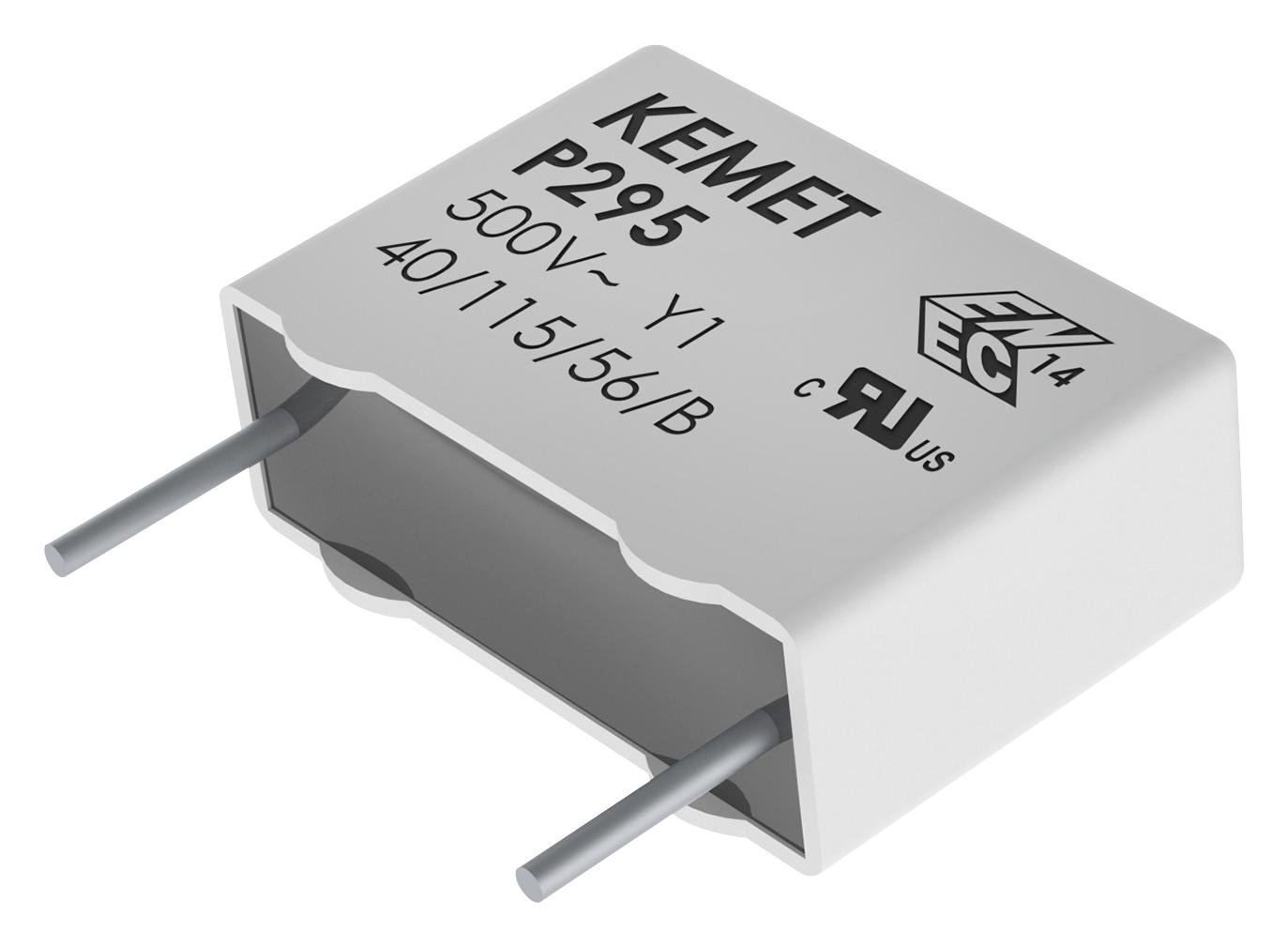

Buy the Buy KEMET P295BE821M500A Part Number 820 pF Capacitor Online
Purchase the KEMET P295BE821M500A safety capacitor online today to benefit from high-voltage stability, robust construction, and compliance with industry standards. This metallized paper capacitor is ideal for automotive safety applications, offering a rated voltage of 500 VAC and wide temperature tolerance from -40°C to +115°C. Its self-extinguishing, RoHS-compliant design ensures long-term reliability in demanding environments. With a capacitance of 820 pF and ±20% tolerance, it provides high dV/dt capability, excellent dielectric properties, and UL, ENEC, cUL, certification, making it perfect for critical insulation and bridging applications in various electronic systems.
Order your KEMET SeriesP295BE821M500A high-voltage safety capacitor today and ensure reliable insulation bridging with excellent self-healing properties.
Frequently Asked Questions
Where can I buy KEMET P295BE821M500A?
You can click on the BUY or RFQ button to purchase P295BE821M500A from an authorized KEMET distributor.
How do I troubleshoot issues or seek technical support for part P295BE821M500A?
You can download the P295BE821M500A datasheet or visit the KEMET website for support.
Who is the manufacturer of P295BE821M500A?
KEMET
