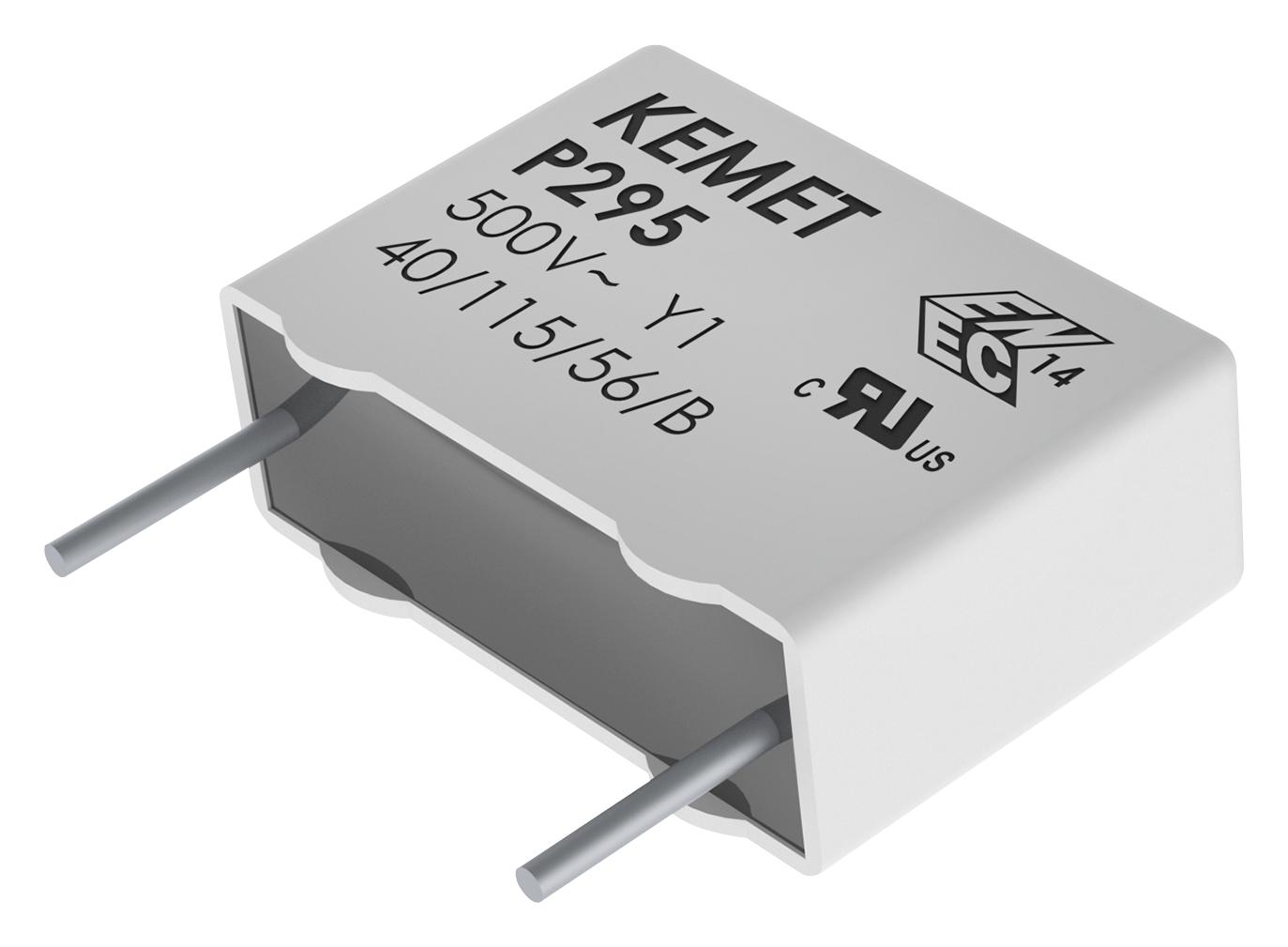

KEMET P295BL272M500A Safety Metallized Paper Capacitor
The P295 Series capacitors are constructed from multilayer metallized paper, encapsulated and impregnated in a UL 94 V-0 compliant self-extinguishing material. Designed for bridging double or reinforced insulation applications, these safety capacitors withstand voltage tests up to 4,000 VAC for 60 seconds without removal. Certified by ENEC, UL, cUL, and CQC, with a rated voltage of 500 VAC at 50/60 Hz, they feature capacitance ranging from 470 pF to 4,700 pF with a ±20% tolerance. Operating reliably from -40°C to +115°C, they are RoHS compliant with lead-free terminations, offering excellent safety, stability, and longevity for continuous operation in demanding environments.
KEMET P295BL272M500A Safety Metallized Paper Capacitor Specifications:
- Capacitance: 2700 pF
- Capacitance Tolerance: ±20%
- Rated Voltage AC: 500 VAC (Y1)
- Rated Voltage DC: 1500 VDC
- Maximum Dimensions: Length 18mm, Height 14.5mm, Thickness 7mm
- Temperature Range: -40°C to +115°C
- Operating Temperature: 115°C
- Dielectric: Metallized Paper
- Style: Radial
- Lead Spacing: 15mm
- Dissipation Factor: 1.3% at 1kHz
- Insulation Resistance: 12 GOhms
- Packaging: Bulk, Bag
- UL Flammability Standard: UL 94 V-0
- Compliance: RoHS, ENEC, UL, cUL, CQC
- Operating Frequency: 30 MHz
- Safety Class: Y1
- Impregnation Material: Self-extinguishing, impregnated paper
- Safety Features: Surpasses voltage withstand requirements, high dV/dt capability, self-healing properties
Buy the Buy KEMET Safety Capacitor Part Number P295BL272M500A Online
Purchase the KEMET P295BL272M500A safety metallized paper capacitor online. This high-quality component ensures safety, stability, and durability for insulation bridging and surge protection applications. Certified by UL, ENEC, cUL, and CQC, it features a robust 500 VAC rating, 2700 pF capacitance with ±20% tolerance, and operates reliably from -40°C to +115°C. Its RoHS compliance and self-extinguishing impregnation ensure environmentally friendly, long-lasting performance under demanding conditions, making it ideal for industrial, automotive, and electronic safety solutions.
Get KEMET P295BL272M500A today—designed for safety, stability, and long-lasting reliability in industrial and automotive applications.
Frequently Asked Questions
Where can I buy KEMET P295BL272M500A?
You can click on the BUY or RFQ button to purchase P295BL272M500A from an authorized KEMET distributor.
How do I troubleshoot issues or seek technical support for part P295BL272M500A?
You can download the P295BL272M500A datasheet or visit the KEMET website for support.
Who is the manufacturer of P295BL272M500A?
KEMET
