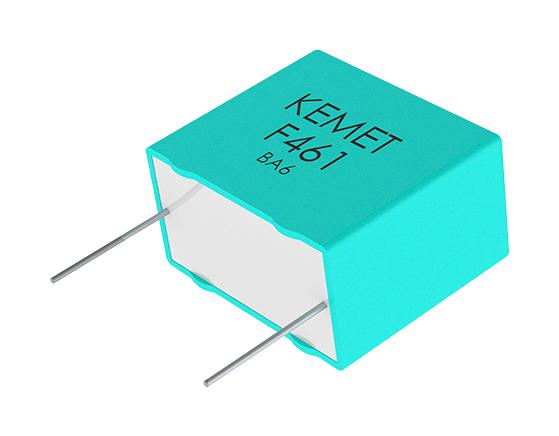

KEMET PHE426DJ4100JR05 Film Capacitor
The PHE426DJ4100JR05 is a metallized polypropylene film capacitor designed for general-purpose applications. It features a capacitance of 1000 pF with a tolerance of 5%, and is rated for 63 VAC AC voltage and 100 VDC at 105°C. With a maximum lead length of 7.2mm and dimensions up to 65mm in height and 2.5mm in diameter, it offers excellent insulation resistance of 100 GOhms, low inductance of 6nH, and low dissipation factor, making it suitable for pulse and filtering applications in electronic circuits operating from -55°C to +105°C.
KEMET PHE426DJ4100JR05 Film Capacitor Specifications:
- Capacitance: 1000 pF
- Capacitance Tolerance: 5%
- Voltage AC: 63 VAC
- Voltage DC: 100 VDC at 105°C
- Maximum Lead Length: 7.2mm
- Maximum Height: 65mm
- Maximum Diameter: 2.5mm
- Temperature Range: -55°C to +105°C
- Dissipation Factor: 0.05% at 1kHz, 0.25% at 100kHz
- Insulation Resistance: 100 GOhms
- Inductance: 6nH
- Packaging: Bulk, Bag
- Quantity: 2000 units
Buy the YAGEO Series PHE426 Capacitor: PHE426DJ4100JR05
Purchase the YAGEO Series PHE426DJ4100JR05 film capacitor online now and benefit from fast shipping and trusted quality. Designed for pulse and filtering applications, this 1000 pF capacitor features a 63 VAC rating, 100 VDC compatibility at 105°C, and exceptional insulation resistance. Its compact size with a maximum height of 65mm and diameter of 2.5mm makes it ideal for various electronic circuits. Reliable and RoHS compliant, order today to ensure your project’s success with top-tier components.
Order your YAGEO Series PHE426DJ4100JR05 film capacitor today and enhance the reliability of your electronic projects with high-quality polypropylene components.
Frequently Asked Questions
Where can I buy KEMET PHE426DJ4100JR05?
You can click on the BUY or RFQ button to purchase PHE426DJ4100JR05 from an authorized KEMET distributor.
How do I troubleshoot issues or seek technical support for part PHE426DJ4100JR05?
You can download the PHE426DJ4100JR05 datasheet or visit the KEMET website for support.
Who is the manufacturer of PHE426DJ4100JR05?
KEMET
