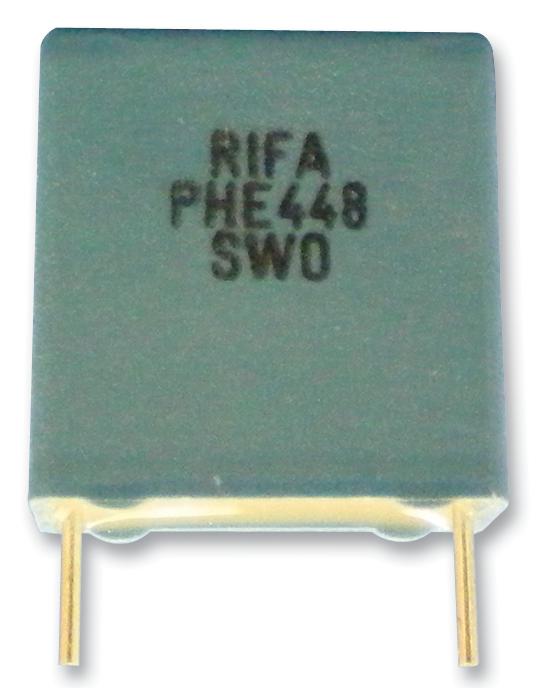

KEMET PHE448RB4330JR06 Polypropylene Film Capacitor
The PHE448/F448 series is a film/foil polypropylene capacitor designed for general-purpose applications, offering a capacitance of 3300 pF with a 5% tolerance and rated voltage of 1600 VDC. It features a radial style with wire leads, RoHS compliance, and pulse capabilities, making it suitable for high-voltage, pulse, and filtering operations. The capacitor operates within a temperature range of -55°C to +105°C and has dimensions of approximately 18mm in length, 12.5mm height, and 6.5mm thickness, with a lead spacing of 15mm. Its low dissipation factor and high insulation resistance ensure performance reliability.
KEMET PHE448RB4330JR06 Polypropylene Film Capacitor Specifications:
- Capacitance: 3300 pF
- Capacitance Tolerance: 5%
- Voltage DC: 1600 VDC
- Voltage AC: 650 VAC
- Temperature Range: -55°C to +105°C
- Rated Temperature: 85°C
- Dimensions: Length 18mm ±0.5mm, Height 12.5mm ±0.5mm, Thickness 6.5mm ±0.5mm, Lead Spacing 15mm ±0.4mm
- Insulation Resistance: 9.0909 GOhms
- Dissipation Factor: 0.03% at 1kHz
- Inductance: 6 nH
- RoHS: Yes
- Features: Pulse capability, wire leads, radial style
- Maximum dVidt: 15000 V/μs
- Component Weight: 2g
Buy the Buy KEMET PHE448RB4330JR06 Part Number 3300 pF 1600 VDC Online
Get your KEMET PHE448RB4330JR06 polypropylene film capacitor now available online. Perfect for high-voltage pulse applications, this 3300 pF capacitor offers high insulation resistance, stability from -55°C to +105°C, and a robust radial design with wire leads. Its 1600 VDC rating and RoHS compliance ensure dependable operation in various circuits. Purchase today for efficient filtering, energy storage, and pulse operations, and experience quick delivery with excellent product support for your projects.
Order your KEMET Series PHE448RB4330JR06 capacitor today for reliable high-voltage performance, pulse capability, and excellent insulation resistance.
Frequently Asked Questions
Where can I buy KEMET PHE448RB4330JR06?
You can click on the BUY or RFQ button to purchase PHE448RB4330JR06 from an authorized KEMET distributor.
How do I troubleshoot issues or seek technical support for part PHE448RB4330JR06?
You can download the PHE448RB4330JR06 datasheet or visit the KEMET website for support.
Who is the manufacturer of PHE448RB4330JR06?
KEMET
