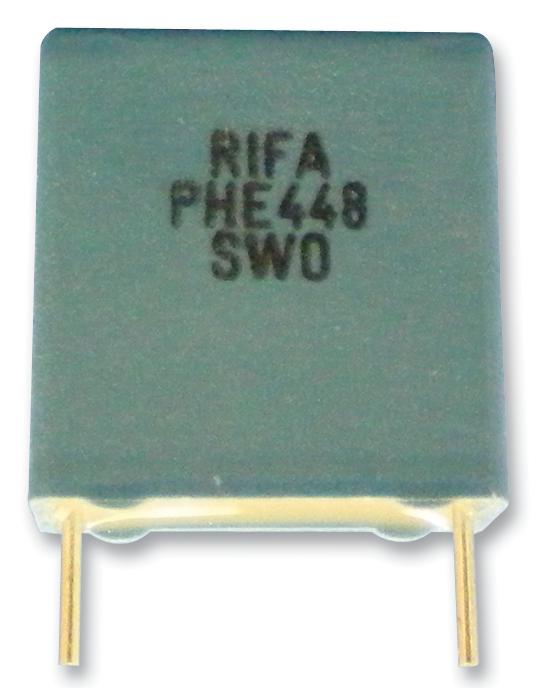

KEMET PHE448SB3220JR06 High-Voltage Film Capacitor
The PHE448SB3220JR06 is a reliable film/foil polypropylene capacitor designed for general-purpose applications. Featuring a capacitance of 220 pF with a 5% tolerance, it operates at a maximum voltage of 2000 VDC and a temperature range from -55°C to +105°C. Its radial style with wire leads makes it suitable for pulse and high-voltage circuits. The capacitor's dimensions include a length of 18mm, height of 10.5mm, and a lead spacing of 15mm, ensuring easy integration into various electronic assemblies. It is RoHS compliant and rated for up to 85°C, offering high insulation resistance and low dissipation factor for dependable performance.
KEMET PHE448SB3220JR06 High-Voltage Film Capacitor Specifications:
- Capacitance: 220 pF
- Capacitance Tolerance: 5%
- Voltage DC: 2000 VDC, 1480 VDC at 105°C
- Voltage AC: 700 VAC
- Temperature Range: -55°C to +105°C
- Rated Temperature: 85°C
- Dimensions: Length 18mm, Height 10.5mm, Lead Spacing 15mm, Thickness 5.5mm
- Dielectric: Film/Foil Polypropylene
- Style: Radial, Wire Leads
- Features: Pulse, RoHS Compliant
- Insulation Resistance: 136.36 GOhms
- Dissipation Factor: 0.03% at 1kHz
- Inductance: 6 nH
- Max dVidt: 25000 V/us
- Packaging: Bulk, Quantity 1000
Buy the KEMET PHE448SB3220JR06 – Reliable Polypropylene Film Capacitor for Industrial Applications
Order the KEMET PHE448SB3220JR06 online and ensure your electronic projects benefit from high-quality, reliable polypropylene film capacitance. Designed for high-voltage, pulse, and general-purpose applications, this capacitor offers exceptional insulation resistance, low dissipation factor, and broad temperature tolerance. Its compact size and robust construction make it easy to integrate into various circuits, providing consistent performance in demanding environments. Purchase now for fast delivery and elevate your electronic design with this dependable, RoHS-compliant component tailored for industrial and professional use.
Get KEMET PHE448SB3220JR06 today—built for high-voltage and pulse applications with dependable performance.
Frequently Asked Questions
Where can I buy KEMET PHE448SB3220JR06?
You can click on the BUY or RFQ button to purchase PHE448SB3220JR06 from an authorized KEMET distributor.
How do I troubleshoot issues or seek technical support for part PHE448SB3220JR06?
You can download the PHE448SB3220JR06 datasheet or visit the KEMET website for support.
Who is the manufacturer of PHE448SB3220JR06?
KEMET
