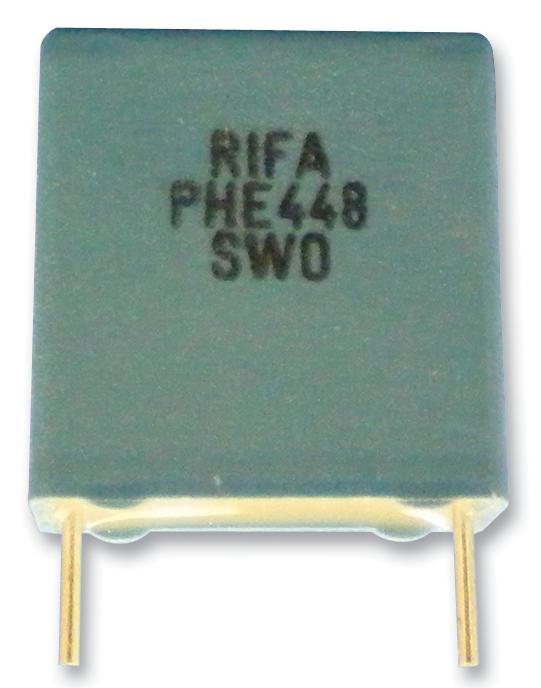

KEMET PHE448SB3470JR06 High Voltage Film Capacitor
The PHE448SB3470JR06 is a high-performance film/foil polypropylene capacitor suitable for general purpose applications. With a capacitance of 470 pF and a voltage rating of 2000 VDC, it features a radial style with wire leads, RoHS compliance, and pulse capability. Designed to operate reliably from -55°C to +105°C, this capacitor provides excellent insulation resistance of over 63 GOhms, low inductance of 6 nH, and a dissipation factor of 0.03% at 1kHz. Its compact dimensions include an 18mm length, 10.5mm height, and 15mm lead spacing, making it ideal for high-voltage circuitry requiring precise capacitance and reliability.
KEMET PHE448SB3470JR06 High Voltage Film Capacitor Specifications:
- Capacitance: 470 pF
- Capacitance Tolerance: 5%
- Voltage DC: 2000 VDC, 1480 VDC at 105°C
- Temperature Range: -55°C to +105°C
- Insulation Resistance: 63.8298 GOhms
- Dissipation Factor: 0.03% at 1kHz
- Inductance: 6 nH
- Dimensions: Length 18mm ±0.5mm, Height 10.5mm ±0.5mm, Lead Spacing 15mm ±0.4mm, Thickness 5.5mm ±0.5mm
- Material: Film/Foil Polypropylene
- Features: Pulse, Radial Style, RoHS compliant
- Packaging: Bulk, Bag, Quantity 1000
Buy the Buy KEMET Film Capacitor Part Number PHE448SB3470JR06 Online
Purchase the high-voltage polypropylene film capacitor designed for demanding applications online today. With a capacitance of 470 pF and voltage rating of 2000 VDC, this high-quality component features radial wire leads for easy installation, RoHS compliance, and a broad temperature range from -55°C to +105°C. Its low dissipation factor and high insulation resistance ensure long-term reliability in pulse and high-voltage applications. Order now to benefit from fast shipping, competitive pricing, and guaranteed quality from trusted suppliers.
Buy KEMET PHE448SB3470JR06 now and experience reliable high-voltage performance with excellent insulation resistance and low inductance for your circuits.
Frequently Asked Questions
Where can I buy KEMET PHE448SB3470JR06?
You can click on the BUY or RFQ button to purchase PHE448SB3470JR06 from an authorized KEMET distributor.
How do I troubleshoot issues or seek technical support for part PHE448SB3470JR06?
You can download the PHE448SB3470JR06 datasheet or visit the KEMET website for support.
Who is the manufacturer of PHE448SB3470JR06?
KEMET
