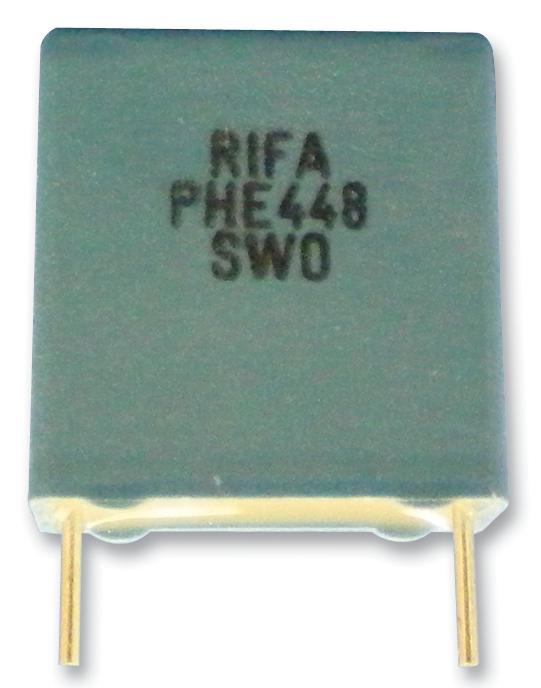

KEMET PHE448SB4150JR06 Film Capacitor
The PHE448F448 series film capacitor is designed for general-purpose applications, featuring a polypropylene dielectric and a radial style with wire leads. It offers a capacitance of 1500 pF with a 5% tolerance, rated for 2000 VDC operation at 85°C. The capacitor exhibits low dissipation factor, high insulation resistance of 20 GOhms, and excellent pulse handling capabilities. Its compact dimensions include an 18mm length, 12.5mm height, and 15mm lead spacing, making it suitable for various industrial and electronic applications requiring reliable voltage endurance and stability.
KEMET PHE448SB4150JR06 Film Capacitor Specifications:
- Capacitance: 1500 pF
- Capacitance Tolerance: 5%
- Voltage DC: 2000 VDC, 1480 VDC at 105°C
- Temperature Range: -55°C to +105°C
- Dielectric: Film/Foil Polypropylene
- Style: Radial
- Features: Pulse handling
- Lead Spacing: 15mm ±0.4mm
- Dimensions: Length 18mm -0.5mm, Height 12.5mm -0.5mm, Thickness 6.5mm -0.5mm
- Insulation Resistance: 20 GOhms
- Max dVidt: 25000 V/us
- Dissipation Factor: 0.03% at 1kHz
- Inductance: 6 nH
- Component Weight: 2g
Buy the Buy KEMET Film Capacitor Part Number PHE448SB4150JR06 Online
Purchase the reliable KEMET film capacitor PHE448SB4150JR06 online and enhance your industrial and electronic applications with a high-voltage, polypropylene dielectric component. With 1500 pF capacitance, 2000 VDC rating, and excellent pulse handling, this capacitor delivers consistent performance in demanding environments. Its radial style with wire leads makes installation straightforward, while compact dimensions save space. Order now to incorporate this durable capacitor into your critical systems, ensuring stability, high insulation resistance, and superior performance for your electronic and industrial projects.
Order your KEMET Series PHE448SB4150JR06 film capacitor today and ensure your electronic projects benefit from high voltage reliability and stable performance.
Frequently Asked Questions
Where can I buy KEMET PHE448SB4150JR06?
You can click on the BUY or RFQ button to purchase PHE448SB4150JR06 from an authorized KEMET distributor.
How do I troubleshoot issues or seek technical support for part PHE448SB4150JR06?
You can download the PHE448SB4150JR06 datasheet or visit the KEMET website for support.
Who is the manufacturer of PHE448SB4150JR06?
KEMET
