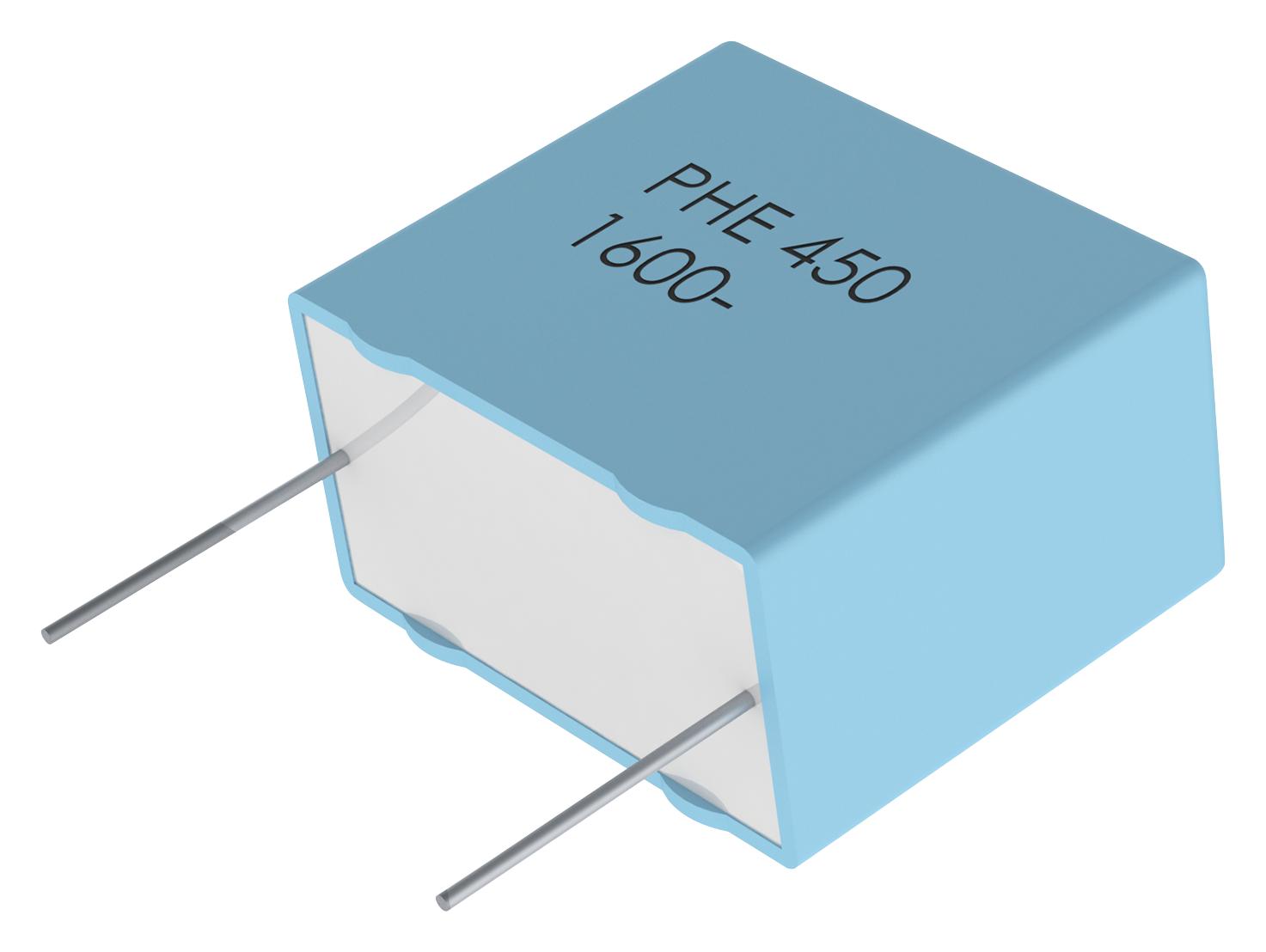

KEMET PHE450MK5150JR20 Film Capacitor
The PHE450MK5150JR20 is a reliable film capacitor with double metallized polypropylene dielectric. Designed for general purpose applications, it features a capacitance of 0.015 uF with 5% tolerance and a maximum voltage of 630 VDC at 85°C. Its radial style with wire leads ensures easy mounting. The capacitor offers a temperature range of -55°C to +105°C, low dissipation factor, high insulation resistance, and RoHS compliance. Suitable for various electronic circuits requiring stable performance under pulse conditions and high voltage environments.
KEMET PHE450MK5150JR20 Film Capacitor Specifications:
- Capacitance: 0.015 uF
- Capacitance Tolerance: 5%
- Voltage DC: 630 VDC (85°C)
- Voltage AC: 300 VAC
- Temperature Range: -55°C to +105°C
- Rated Temperature: 85°C
- Dielectric: Double Metallized Polypropylene
- Style: Radial
- Lead/spacing: 7.5mm
- Dimensions: Length 10mm ±0.5mm, Height 11mm ±0.5mm, Diameter 5mm ±0.5mm
- Leakage current: Max 1400 μA
- Insulation Resistance: 100 GOhms
- Dissipation Factor: 0.03% at 1kHz
- Inductance: 6 nH
- RoHS: Yes
Buy the KEMET PHE450MK5150JR20 – Reliable Film Capacitor for Industrial Applications
Purchase the KEMET PHE450MK5150JR20 film capacitor online today to ensure your electronic circuits benefit from stable performance, high voltage tolerance, and long-term reliability. This high-quality polypropylene dielectric capacitor is ideal for general-purpose applications, pulse environments, and high-voltage circuits. With a capacitance of 0.015 uF, 630 VDC rating, and RoHS compliance, it guarantees excellent insulation resistance, low dissipation factor, and durability in varied industrial and consumer electronics. Order now and secure trusted performance for your critical projects.
Order your KEMET PHE450MK5150JR20 film capacitor today and enhance your electronic projects with high-quality, dependable components suitable for demanding environments.
Frequently Asked Questions
Where can I buy KEMET PHE450MK5150JR20?
You can click on the BUY or RFQ button to purchase PHE450MK5150JR20 from an authorized KEMET distributor.
How do I troubleshoot issues or seek technical support for part PHE450MK5150JR20?
You can download the PHE450MK5150JR20 datasheet or visit the KEMET website for support.
Who is the manufacturer of PHE450MK5150JR20?
KEMET
