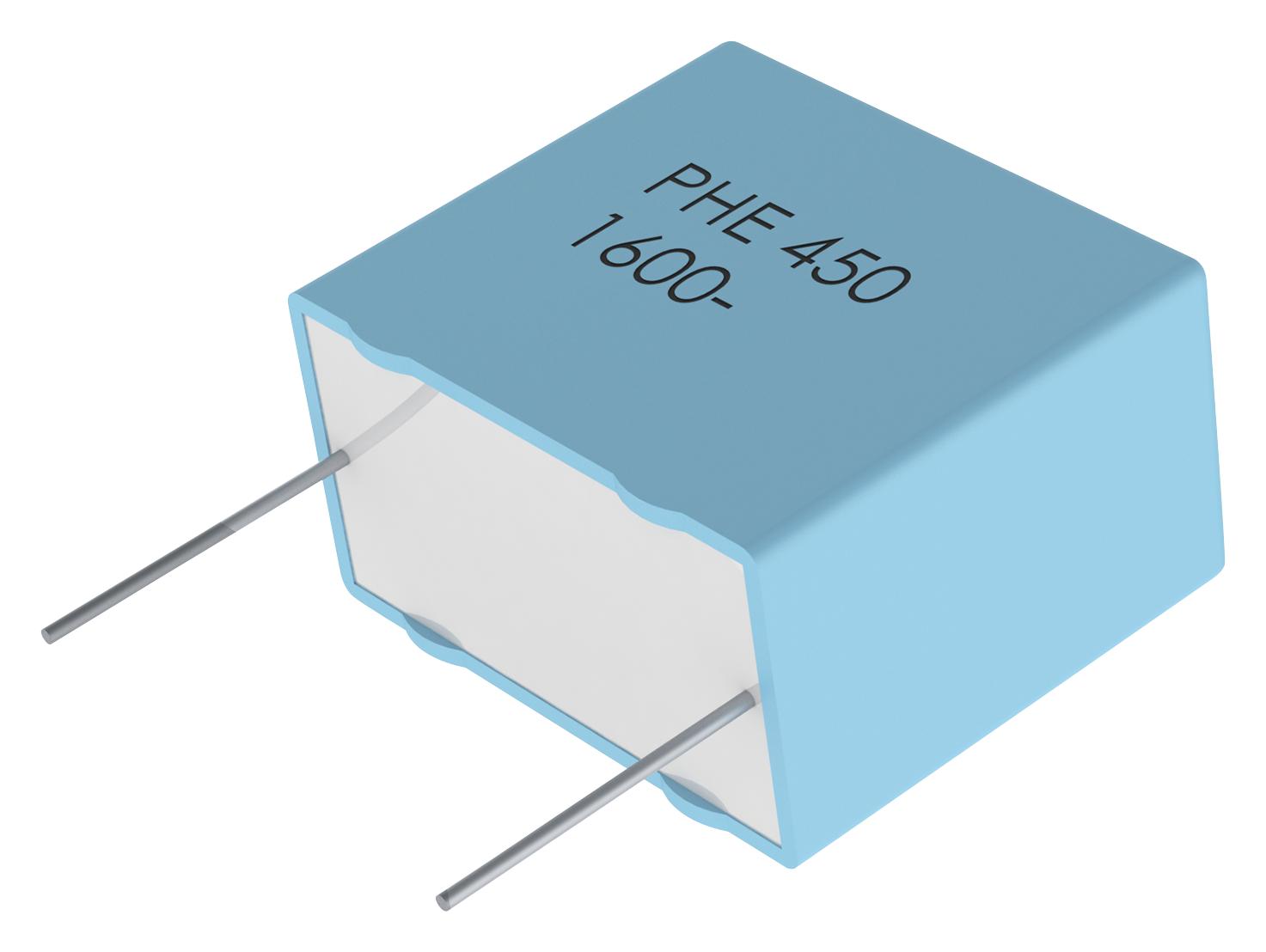

KEMET PHE450PD6220JD16R30L2 Film Capacitor
The PHE450PD6220JD16R30L2 is a film capacitor featuring double metallized polypropylene dielectric, designed for general-purpose applications. It offers a capacitance of 0.22 uF with a tolerance of 5%, rated for 1000 VDC and an operating temperature range from -55°C to +105°C. This radial style component has wire leads, a lead spacing of 22.5mm, and weighs approximately 6.522 grams. It is RoHS compliant and suitable for pulse applications, making it ideal for various industrial and electronic circuit uses.
KEMET PHE450PD6220JD16R30L2 Film Capacitor Specifications:
- Dielectric: Double Metallized Polypropylene
- Capacitance: 0.22 uF
- Capacitance Tolerance: 5%
- Voltage DC: 1000 VDC (740 VDC at 85°C)
- Voltage AC: 600 VAC
- Temperature Range: -55°C to +105°C
- Rated Temperature: 85°C
- Dimension Length: 26mm -0.5mm
- Width: 21.5mm -0.5mm
- Height: 11mm -0.5mm
- Lead Spacing: 22.5mm +0.4/-0.4mm
- Wire Leads: Yes
- Insulation Resistance: 100 GOhms
- Max Dissipation Voltage: 1800 V
- Packaging: Tray; Quantity: 253 units
- Weight: approximately 6.522 grams
- RoHS Compliant: Yes
- Pulse application: Yes
Buy the KEMET PHE450PD6220JD16R30L2 – Reliable Film Capacitor for Industrial Applications
Experience the reliability and performance of the KEMET PHE450PD6220JD16R30L2 film capacitor. Featuring double metallized polypropylene dielectric, it offers 0.22 uF capacitance at 1000 VDC, suitable for industrial and electronic applications requiring high voltage and temperature stability. Its robust design ensures durability under pulse conditions and wide temperature range from -55°C to +105°C. This model’s wire leads and precise dimensions make it easy to implement into various electronic assemblies. Order online today for fast delivery and assured quality for your projects.
Get KEMET PHE450PD6220JD16R30L2 today—built for precision with high voltage and temperature ratings ideal for demanding industrial applications.
Frequently Asked Questions
Where can I buy KEMET PHE450PD6220JD16R30L2?
You can click on the BUY or RFQ button to purchase PHE450PD6220JD16R30L2 from an authorized KEMET distributor.
How do I troubleshoot issues or seek technical support for part PHE450PD6220JD16R30L2?
You can download the PHE450PD6220JD16R30L2 datasheet or visit the KEMET website for support.
Who is the manufacturer of PHE450PD6220JD16R30L2?
KEMET
