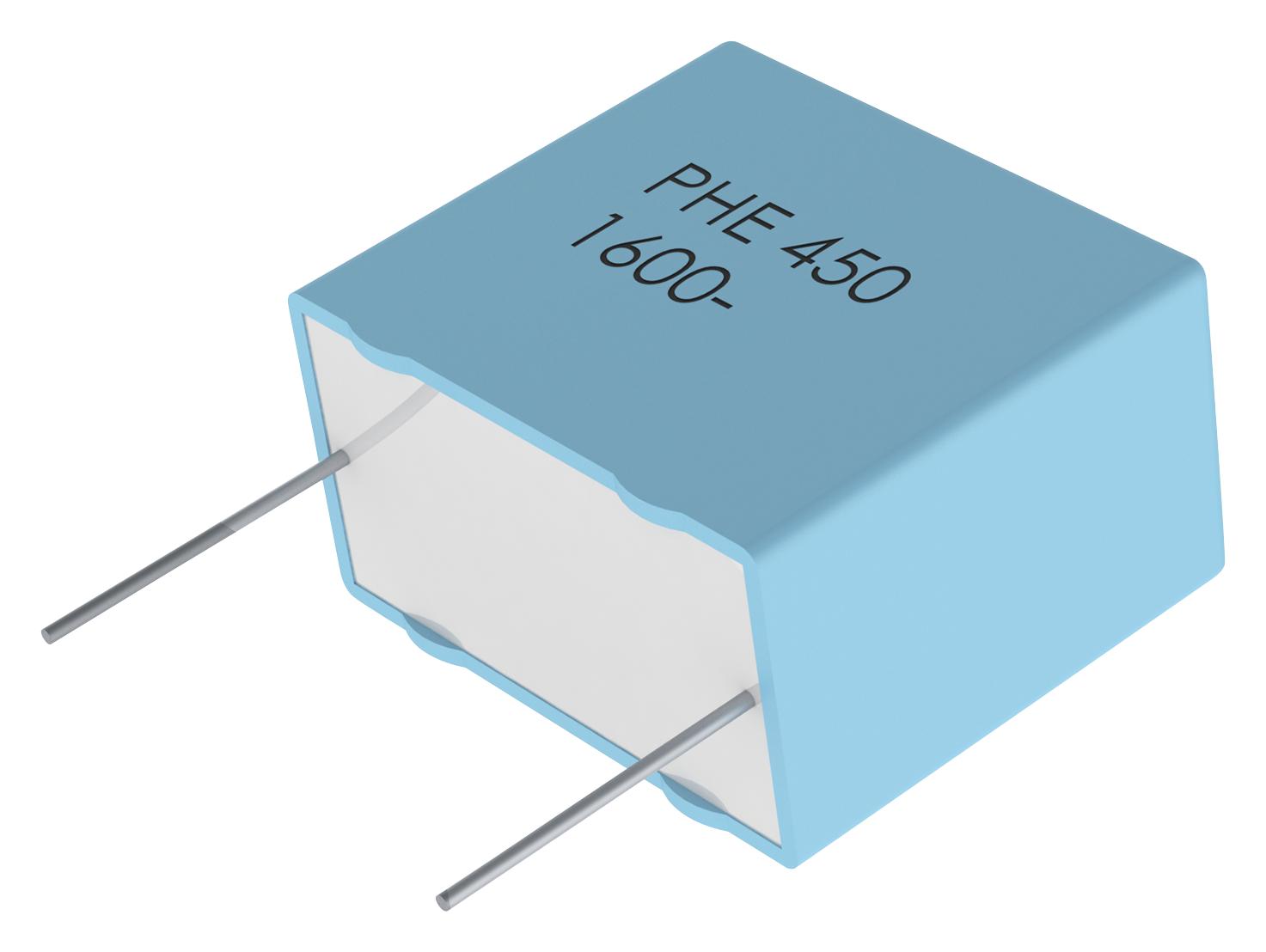

KEMET PHE450SF6100JF12R30L2 High-Voltage Film Capacitor
The PHE450SF6100JF12R30L2 is a general-purpose film capacitor featuring double metallized polypropylene dielectric, ideal for pulse applications. It has a capacitance of 0.1 uF with a 5% tolerance, rated for 2000 VDC at 85°C, and operates within a temperature range of -55°C to +105°C. The capacitor's dimensions include a length of 31.5mm, height of 22.5mm, and thickness of 11.5mm, with a lead spacing of 27.5mm. Its robust construction ensures high insulation resistance of 100 GOhms and low inductance of 6 nH, suitable for high-voltage electronic circuits and surge protection.
KEMET PHE450SF6100JF12R30L2 High-Voltage Film Capacitor Specifications:
- Capacitance: 0.1 uF
- Capacitance Tolerance: 5%
- Rated Voltage DC: 2000 VDC
- Voltage AC: 700 VAC
- Temperature Range: -55°C to +105°C
- Rated Temperature: 85°C
- Dimensions: Length 31.5mm, Height 22.5mm, Thickness 11.5mm, Lead Spacing 27.5mm
- Insulation Resistance: 100 GOhms
- Dissipation Factor: 0.03% at 1kHz
- Inductance: 6 nH
- Material: Double Metallized Polypropylene
- RoHS Compliant: Yes
- Style: Radial
- Weight: 10.39 grams
Buy the Buy KEMET Film Capacitor Part Number PHE450SF6100JF12R30L2 Online
Order the KEMET PHE450SF6100JF12R30L2 film capacitor online today and ensure reliable performance for your high-voltage pulse applications. With a 0.1 uF capacitance, 2000 VDC rating, and polypropylene dielectric, this capacitor offers outstanding insulation resistance of 100 GOhms, low inductance of 6 nH, and wide temperature operation from -55°C to +105°C. Its radial style and robust construction make it ideal for surge protection, electronics, and industrial applications. Experience fast shipping and competitive pricing when you purchase online now.
Get KEMET PHE450SF6100JF12R30L2 today—crafted for high-voltage reliability and pulse durability in electronic circuits.
Frequently Asked Questions
Where can I buy KEMET PHE450SF6100JF12R30L2?
You can click on the BUY or RFQ button to purchase PHE450SF6100JF12R30L2 from an authorized KEMET distributor.
How do I troubleshoot issues or seek technical support for part PHE450SF6100JF12R30L2?
You can download the PHE450SF6100JF12R30L2 datasheet or visit the KEMET website for support.
Who is the manufacturer of PHE450SF6100JF12R30L2?
KEMET
