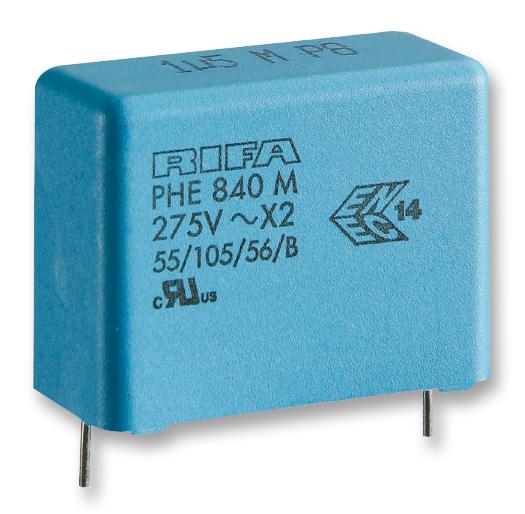

KEMET PHE840MD6220MD13R06L2 Safety Film Capacitor
The PHE840M/F840 series is a safety-rated, metallized polypropylene film capacitor designed for EMI filtering and safety applications. It features a capacitance of 0.22 uF with 20% tolerance, rated for 275 VAC (X2) and 760 VDC, with an operating temperature range of -55°C to +105°C. The radial style ensures reliable performance in various electronic circuits. Its RoHS compliance and safety certifications include UL, cUL, and ENEC, making it suitable for industrial, consumer, and appliance markets. Compact and durable, it provides excellent insulation resistance of 30 GOhms and low dissipation factor for efficient energy handling.
KEMET PHE840MD6220MD13R06L2 Safety Film Capacitor Specifications:
- Capacitance: 0.22 uF
- Capacitance Tolerance: 20%
- Voltage AC: 275 VAC (X2)
- Voltage DC: 760 VDC
- Temperature Range: -55°C to +105°C
- Rated Temperature: 105°C
- Dissipation Factor: 0.1% at 1kHz, 0.4% at 10kHz
- Insulation Resistance: 30 GOhms
- Dimensions: Length 26mm MAX, Height 14.5mm MAX, Thickness 6.5mm MAX, Lead Spacing 22.5mm ±0.4mm
- Lead: Wire Leads
- Safety Class: X2
- Features: EMI Safety, RoHS compliant
- Packaging: Tray, Quantity: 234
Buy the Buy KEMET Safety Film Capacitor Part Number PHE840MD6220MD13R0 Online
Purchase the KEMET safety-rated film capacitor online now for reliable EMI filtering and circuit safety. With a capacitance of 0.22 uF, 275 VAC, and 760 VDC ratings, it provides excellent insulation resistance and stable performance over temperature. The compact radial design features wire leads and complies with RoHS standards, making it suitable for various industrial and commercial applications. Ensure your project meets safety and performance standards with this high-quality, certified capacitor—order today for quick delivery and dependable quality.
Order your KEMET Series PHE840MD6220MD13R0 safety film capacitor today and ensure reliable EMI filtering for your electronic projects.
Frequently Asked Questions
Where can I buy KEMET PHE840MD6220MD13R06L2?
You can click on the BUY or RFQ button to purchase PHE840MD6220MD13R06L2 from an authorized KEMET distributor.
How do I troubleshoot issues or seek technical support for part PHE840MD6220MD13R06L2?
You can download the PHE840MD6220MD13R06L2 datasheet or visit the KEMET website for support.
Who is the manufacturer of PHE840MD6220MD13R06L2?
KEMET
