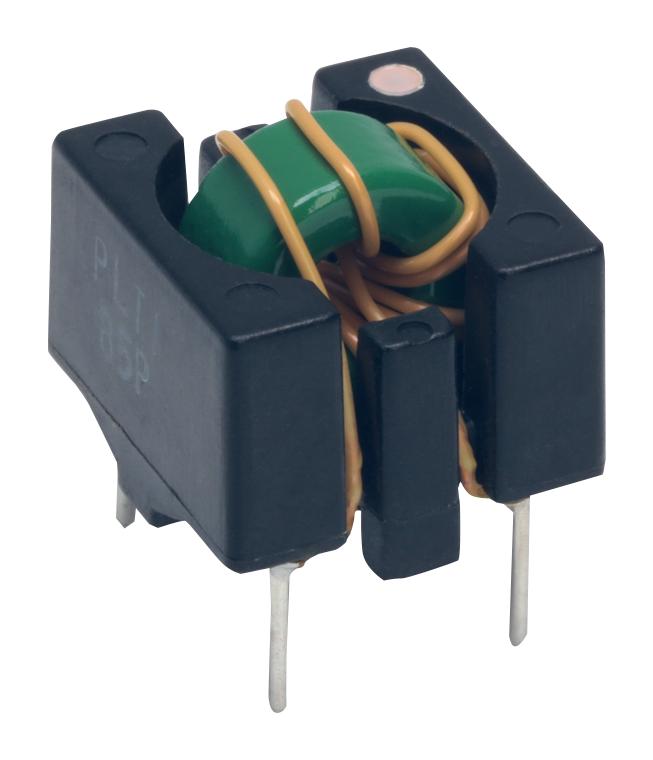

KEMET PLT01 Pulse Transformer
The pulse transformer features a proprietary ferrite core material, designed for through-hole mounting with dimensions of approximately 13.5mm in length, 12.3mm in width, and 12.5mm in height. It offers excellent insertion loss characteristics and is UL94 V-0 flame retardant. Rated for a maximum voltage of 264 VAC with a dielectric withstand of 3600 VAC for 2 seconds without abnormality. Operating temperature range is -25°C to +100°C, with a DC resistance of 55 mOhms. Suitable for various electronic applications requiring reliable signal isolation and performance.
KEMET PLT01 Pulse Transformer Specifications:
- Dimension Length: 13.5 mm max
- Width: 12.3 mm max
- Height: 12.5 mm max
- Maximum Voltage AC: 264 VAC
- Dielectric Voltage: 3600 VAC between coil and coil for 2 seconds
- Operating Temperature Range: -25°C to +100°C
- DC Resistance: 55 mOhms
- Flame Retardancy: UL94 V-0
- Material: Proprietary ferrite core
- Insertion Loss Characteristics: Yes
- Packaging: Bulk, box
- Packaging Quantity: 280 units
- Component Weight: 1.89 grams
Buy the Buy AYEGO Pulse Transformer Part Number PLT01 Online
Enhance your electronic projects with this high-quality pulse transformer featuring UL94 V-0 flame retardant material, optimal dimensions, and a wide operating temperature range. Perfect for reliable signal isolation and switching in industrial and consumer electronics, the transformer supports maximum voltage of 264 VAC and dielectric withstand of 3600 VAC for 2 seconds. Its compact size and robust construction make it ideal for through-hole mounting, ensuring durability and safety. Purchase online to benefit from fast delivery and expert support in selecting the right component for your needs.
Buy AYEGO PLT01 now and experience unmatched reliability and performance in signal isolation and switching applications.
Frequently Asked Questions
Where can I buy KEMET PLT01?
You can click on the BUY or RFQ button to purchase PLT01 from an authorized KEMET distributor.
How do I troubleshoot issues or seek technical support for part PLT01?
You can download the PLT01 datasheet or visit the KEMET website for support.
Who is the manufacturer of PLT01?
KEMET
