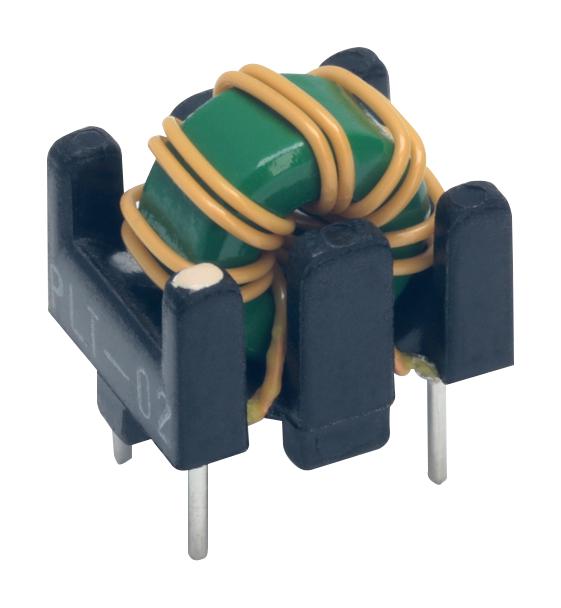

KEMET PLT02 Pulse Transformer

The Pulse Transformer series PLT by KEMET features through-hole mounting with proprietary ferrite material for optimal performance. Designed for AC applications, it supports a maximum voltage of 110 VAC and a dielectric voltage of 3600 VAC for 2 seconds between coils, ensuring reliable isolation. Its compact dimensions include a length of 9.5mm, height of 12mm, and width of 3mm, with a coil spacing of 5.08mm. The transformer operates efficiently within a temperature range of -25°C to +100°C, with a DC resistance of 55 milliohms. Suitable for bulk packaging with 900 units per box, weighing 1.39 grams each, it complies with RoHS and UL94 V-0 flame retardant standards, making it ideal for various electrical and electronic applications.

View PLT02Datasheet [pdf]

Buy the KEMET Series PLT Pulse Transformer: PLT02

Purchase the KEMET Series PLT02 Pulse Transformer online today and benefit from rapid delivery, genuine quality, and proven reliability. Designed with proprietary ferrite cores, this through-hole transformer supports up to 110 VAC and ensures safe operation with a dielectric voltage of 3600 VAC for 2 seconds. Its compact size, operating temperature range of -25°C to +100°C, and UL94 V-0 flame retardant rating make it suitable for various electronic applications. Get this essential component now for dependable circuit isolation and optimal performance in your projects.

Order your KEMET Series PLT02 Pulse Transformer today and enhance your electronic projects with reliable electrical isolation and high-performance features.
