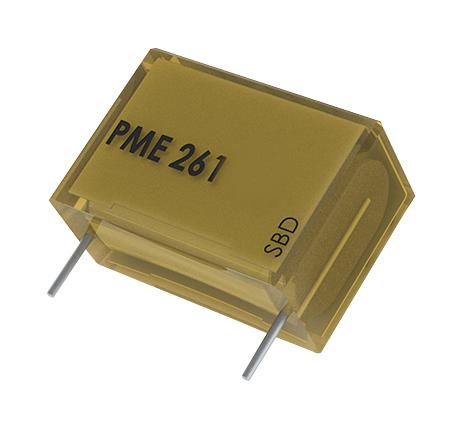

KEMET PME261EA4220KR19T0 Film Capacitor
The PME261EA4220KR19T0 is a high-quality film capacitor designed for general purpose applications. It features metallized paper dielectric with a capacitance of 2200 pF, a capacitance tolerance of 10%, and a voltage rating of 630 VDC. Suitable for AC operation up to 70°C, this molded component offers reliable performance in low-frequency pulse and Foley S. applications. With radial lead configuration and dimensions of 13.5mm length, 3.9mm diameter, and lead spacing of 10.2mm, it ensures easy integration within various electronic circuits. It also boasts RoHS compliance and an insulation resistance of 12 GOhms.
KEMET PME261EA4220KR19T0 Film Capacitor Specifications:
- Capacitance: 2200 pF
- Capacitance Tolerance: 10%
- Voltage DC: 630 VDC
- Voltage AC: 300 VAC
- Dimensions: Length 13.5 mm (-0.5 mm), Diameter 3.9 mm (-0.5 mm), Lead Spacing 10.2 mm (+0.6/-0.1 mm)
- Temperature Range: -40°C to +100°C
- Rated Temperature: 85°C
- Dissipation Factor: 1.3% at 1kHz
- Insulation Resistance: 12 GOhms
- Construction: Molded
- Lead Type: Wire Leads
- ROHS Compliant: Yes
- Series: PME261/P561
Buy the KEMET PME261EA4220KR19T0 – Reliable Film Capacitor for Industrial Applications
Purchase KEMET PME261EA4220KR19T0 film capacitor online today for reliable and high-performing industrial applications. This molded component features metallized paper dielectric, 2200 pF capacitance, 630 VDC voltage rating, and wide temperature range. Its radial lead configuration simplifies installation, making it suitable for low-frequency pulse and Foley S. applications. RoHS compliant and with 12 GOhms insulation resistance, it guarantees durability, stability, and safety in demanding environments. Order now to ensure consistent performance in your electronic systems.
Buy KEMET PME261EA4220KR19T0 now and experience unmatched reliability and performance in your electronic projects. This high-quality film capacitor ensures stable operation, robust construction, and excellent dielectric properties, making it ideal for low-frequency pulse and Foley S. applications. Order online today to enhance your industrial equipment with this dependable component designed for long-term use and consistent performance in demanding environments.
Frequently Asked Questions
Where can I buy KEMET PME261EA4220KR19T0?
You can click on the BUY or RFQ button to purchase PME261EA4220KR19T0 from an authorized KEMET distributor.
How do I troubleshoot issues or seek technical support for part PME261EA4220KR19T0?
You can download the PME261EA4220KR19T0 datasheet or visit the KEMET website for support.
Who is the manufacturer of PME261EA4220KR19T0?
KEMET
