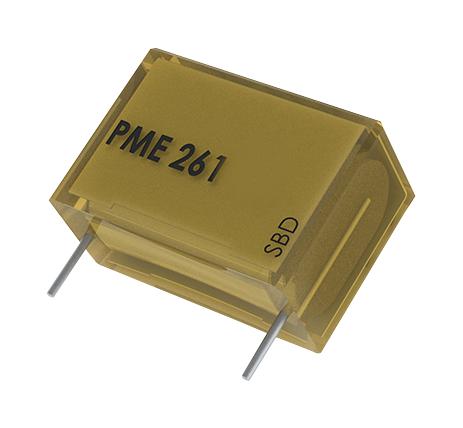

KEMET PME261EA5100KR19T0 Film Capacitor
The PME261EA5100KR19T0 is a versatile general-purpose film capacitor featuring metallized paper dielectric and radial wire leads. It offers a capacitance of 0.01 uF with a 10% tolerance, rated for 630 VDC, and an operating temperature range from -40°C to +100°C. Suitable for AC operation up to 70°C, this molded component provides reliable performance in various electronic applications. With insulation resistance of 12 GOhms and maximum voltage of 2000 V, it is ideal for pulse, RF, and general electronic circuit use, ensuring durability and efficiency.
KEMET PME261EA5100KR19T0 Film Capacitor Specifications:
- Capacitance: 0.01 uF
- Capacitance Tolerance: 10%
- Voltage DC: 630 VDC
- Voltage AC: 300 VAC
- Temperature Range: -40°C to +100°C
- Rated Temperature: 85°C
- Insulation Resistance: 12 GOhms
- Dissipation Factor: 1.3% at 1kHz
- Dimensions: Length 13.5mm ±0.5mm, Height 18.5mm ±0.5mm, Lead Spacing 10.2mm +0.6/-0.1mm
- Lead Type: Wire Leads
- Construction: Molded
- RoHS Compliant: Yes
- Series: PME261/P561
- Dielectric: Metallized Paper
- Mounting Style: Radial
- Maximum Voltage: 2000 V
- Packaging: T&R, Quantity: 600 units
Buy the KEMET PME261EA5100KR19T0 – Reliable Film Capacitor for Industrial Applications
Secure the KEMET PME261EA5100KR19T0 film capacitor online today to enhance your electronic circuits with reliable, high-performance components. This versatile capacitor offers a 0.01 uF capacitance with a 10% tolerance and withstands voltages up to 630 VDC. Its molded design and metallized paper dielectric make it suitable for pulse, RF, and general-purpose applications. Operating reliably from -40°C to +100°C, it provides excellent insulation resistance of 12 GOhms and maximum voltage of 2000 V. Purchase now to ensure your projects meet quality and durability standards.
Order your KEMET PME261EA5100KR19T0 series capacitor today and ensure your electronic projects benefit from dependable performance and high-quality components.
