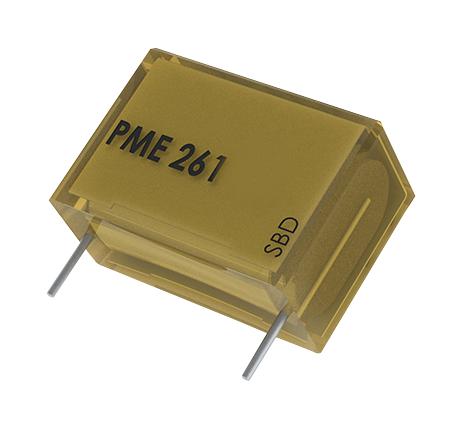

KEMET PME261JA4220KR19T0 Film Capacitor
The PME261JA4220KR19T0 is a high-quality film capacitor with metallized paper dielectric, designed for general-purpose applications. It features a capacitance of 2200 pF with a tolerance of 10%, rated voltage of 1000 VDC, and a maximum operating temperature of 85°C. Constructed with molded insulation and wire lead terminals, this capacitor suits AC and DC circuit needs. Its compact size, low dissipation factor of 1.3% at 1kHz, and insulation resistance of 12 GOhms ensure reliable performance in demanding electrical environments. Ideal for industrial, audio, and power filtering uses.
KEMET PME261JA4220KR19T0 Film Capacitor Specifications:
- Dielectric: Metallized Paper
- Capacitance: 2200 pF
- Capacitance Tolerance: 10%
- Voltage DC: 1000 VDC
- Voltage AC: 500 VAC
- Rated Temperature: 85°C
- Maximum Operating Temperature: 85°C
- Temperature Range: -40°C to +100°C
- Insulation Resistance: 12 GOhms
- Dissipation Factor: 1.3% at 1kHz
- Dimensions: Length 13.5mm ±0.5mm, Height 3.9mm ±0.5mm, Lead Spacing 10.2mm +0.6/-0.1mm
- Construction: Molded with wire leads
- Weight: 0.63 g
- RoHS Compliant: Yes
- Packaging: Tape and Reel, Quantity 700
Buy the KEMET PME261JA4220KR19T0 – Reliable Film Capacitor for Industrial Applications
Order the KEMET PME261JA4220KR19T0 film capacitor today online to ensure your electrical systems operate smoothly with high voltage resilience. Designed for general-purpose use, this capacitor offers 2200 pF capacitance at 1000 VDC, with a maximum temperature of 85°C. Its metallized paper dielectric and molded construction deliver excellent insulation resistance of 12 GOhms and low dissipation factor of 1.3% at 1kHz. Perfect for industrial, power, and audio applications, purchase now and enhance your circuit reliability with this high-quality component.
Buy KEMET PME261JA4220KR19T0 now and experience unmatched reliability and high-voltage performance in your electrical circuits.
Frequently Asked Questions
Where can I buy KEMET PME261JA4220KR19T0?
You can click on the BUY or RFQ button to purchase PME261JA4220KR19T0 from an authorized KEMET distributor.
How do I troubleshoot issues or seek technical support for part PME261JA4220KR19T0?
You can download the PME261JA4220KR19T0 datasheet or visit the KEMET website for support.
Who is the manufacturer of PME261JA4220KR19T0?
KEMET
