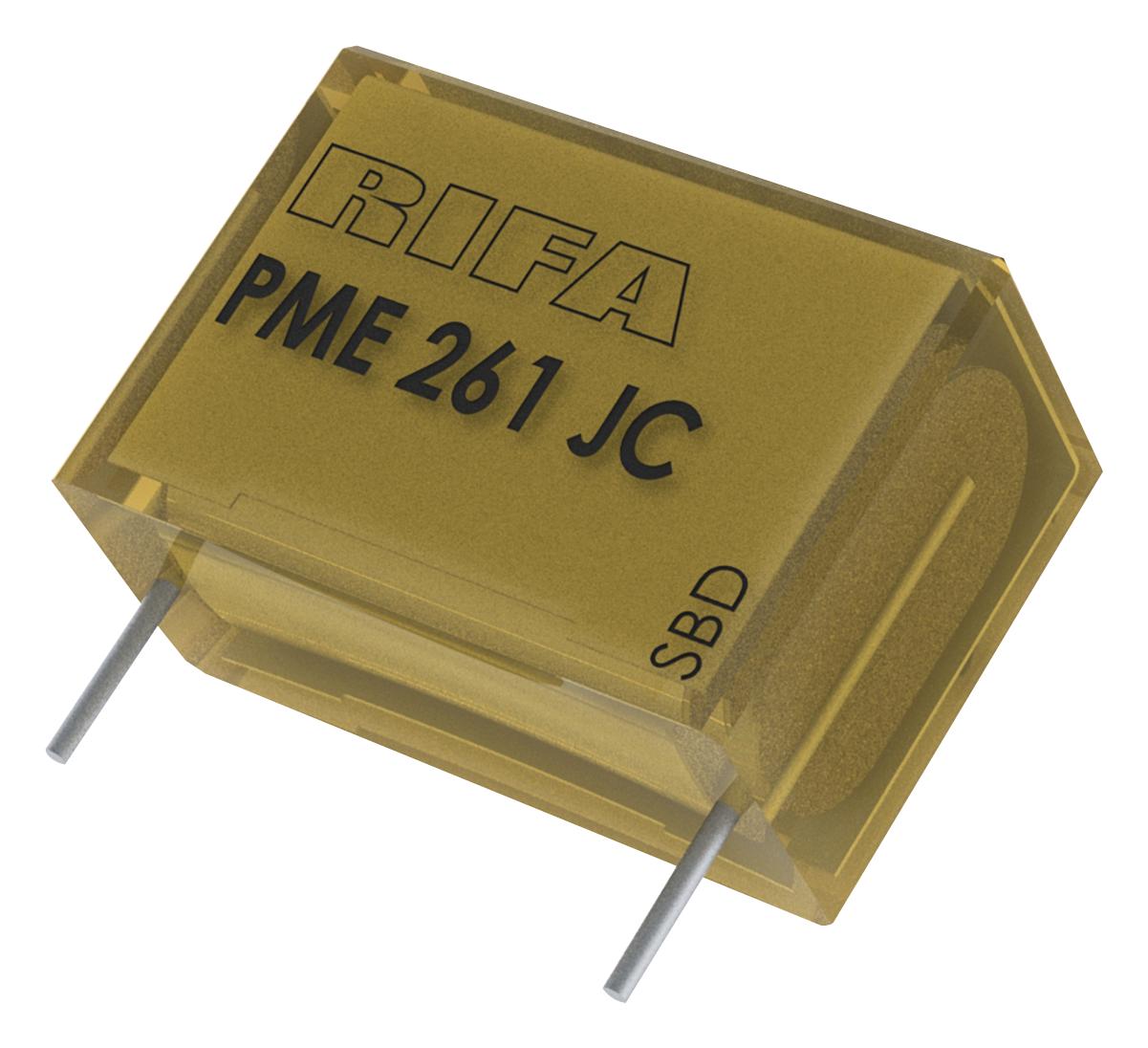

KEMET PME261KA5100KR19T0 Film Capacitor
The PME261KA5100KR19T0 is a high-quality film capacitor featuring metallized paper dielectric, designed for general-purpose applications. It offers a capacitance of 0.01 uF with a 10% tolerance, and a maximum voltage rating of 400 VDC. Operating effectively within -40°C to +100°C, it ensures reliable performance in various electrical environments. Constructed with molded design and wire leads, this capacitor is RoHS compliant and suitable for AC operation up to 70°C. Ideal for use in low-frequency pulse, Foley, and general industrial applications, it provides excellent insulation resistance and low dissipation factor for dependable performance.
KEMET PME261KA5100KR19T0 Film Capacitor Specifications:
- Capacitance: 0.01 uF
- Capacitance Tolerance: 10%
- Voltage DC: 400 VDC
- Voltage AC: 220 VAC
- Temperature Range: -40°C to +100°C
- Rated Temperature: 85°C
- Dimensions: Length 13.5mm -0.5mm, Height 18.5mm +/-0.5mm, Diameter 3.9mm -0.5mm, Lead Spacing 10.2mm +0.6/-0.1mm
- Dielectric: Metallized Paper
- Construction: Molded, Radial leaded
- Dissipation Factor: 1.3% at 1kHz
- Insulation Resistance: 12 GOhms
- Maximum dVidt: 2000 V
- Packaging: T&R, Quantity: 700 units
- RoHS Compliant: Yes
- Weight: 0.63 g
Buy the KEMET PME261KA5100KR19T0 – Reliable Film Capacitor for Industrial Applications
Order the KEMET PME261KA5100KR19T0 film capacitor today to ensure high performance and reliable operation in your industrial projects. Featuring metallized paper dielectric, this 0.01 uF capacitor handles voltages up to 400 VDC and operates efficiently between -40°C and +100°C. Its molded construction with wire leads makes installation straightforward, and its RoHS compliance guarantees environmentally friendly manufacturing. Ideal for low-frequency pulse, Foley, and general industrial applications, it offers an insulation resistance of 12 GOhms and a dissipation factor of 1.3%. Purchase online now for fast delivery and dependable performance.
Buy KEMET PME261KA5100KR19T0 now and experience unmatched reliability and performance in low-frequency pulse and general industrial use.
Frequently Asked Questions
Where can I buy KEMET PME261KA5100KR19T0?
You can click on the BUY or RFQ button to purchase PME261KA5100KR19T0 from an authorized KEMET distributor.
How do I troubleshoot issues or seek technical support for part PME261KA5100KR19T0?
You can download the PME261KA5100KR19T0 datasheet or visit the KEMET website for support.
Who is the manufacturer of PME261KA5100KR19T0?
KEMET
