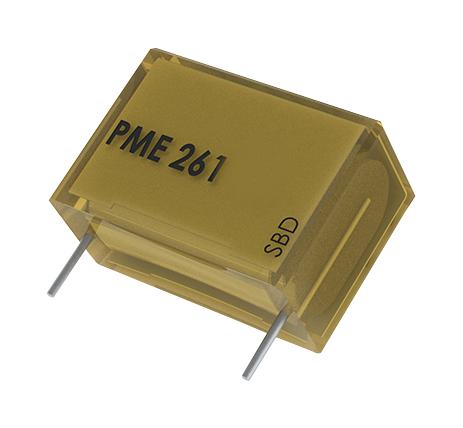

KEMET PME261KB5680KR30 Metallized Paper Film Capacitor
The PME261KB5680KR30 is a general-purpose metallized paper film capacitor with a capacitance of 0.068 uF and a voltage rating of 400 VDC. Designed for AC operation up to 70°C, it features a molded construction with lead wire terminals and radial style layout. Suitable for various electronic applications, this capacitor provides reliable insulation resistance of 12 GOhms and a dissipation factor of 1.3% at 1kHz. Its compact size and robust design make it ideal for both industrial and commercial use, conforming to RoHS standards.
KEMET PME261KB5680KR30 Metallized Paper Film Capacitor Specifications:
- Capacitance: 0.068 uF
- Capacitance Tolerance: 10%
- Rated Voltage DC: 400 VDC
- Rated Temperature: 85°C
- Maximum Voltage AC: 220 VAC
- Dimensions: Length 18.5mm ±0.5mm, Lead Spacing 15.2mm ±0.4mm, Diameter 30mm +5mm
- Dielectric: Metallized Paper
- Construction: Molded
- Lead Type: Wire Leads
- Dissipation Factor: 1.3% at 1kHz
- Insulation Resistance: 12 GOhms
- Temperature Range: -40°C to +100°C
- Packaging: Bulk, Bag, Quantity: 400
- RoHS Compliant: Yes
Buy the KEMET Series PME261 Capacitor: PME261KB5680KR30
Shop online for the KEMET PME261KB5680KR30 metallized paper film capacitor, offering 0.068 uF capacitance, 400 VDC voltage rating, and rated temperature of 85°C. Ideal for general-purpose applications, it features a molded design with wire leads, providing excellent insulation resistance and low dissipation factor. Perfect for industrial circuits, it meets RoHS standards and ensures long-term durability. Order now to enhance your electronic projects with this reliable, high-performance capacitor suited for AC and DC applications with easy online purchasing.
Buy KEMET PME261KB5680KR30 now and experience unmatched reliability and performance with high-quality metallized paper film components.
Frequently Asked Questions
Where can I buy KEMET PME261KB5680KR30?
You can click on the BUY or RFQ button to purchase PME261KB5680KR30 from an authorized KEMET distributor.
How do I troubleshoot issues or seek technical support for part PME261KB5680KR30?
You can download the PME261KB5680KR30 datasheet or visit the KEMET website for support.
Who is the manufacturer of PME261KB5680KR30?
KEMET
