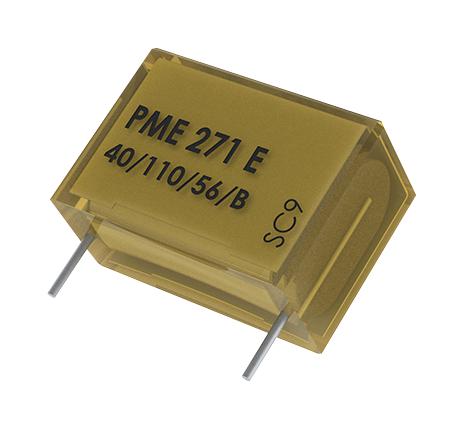

KEMET PME271E533MR30 Film Metallized Paper Capacitor
The KEMET PME271E533MR30 is a high-quality film metallized paper capacitor designed for safety and EMI filtering applications. With a capacitance of 0.033 uF and a tolerance of ±20%, it is rated for 300 VAC (X1 safety class) and 630 VDC. This radial-style component operates from -40°C to +110°C, featuring a molded construction, wire leads, and RoHS compliance. It is suitable for use in power supplies, motor drives, and industrial electronics, offering reliable insulation resistance of 12 GOhms and a dissipation factor of 1.3% at 1kHz.
KEMET PME271E533MR30 Film Metallized Paper Capacitor Specifications:
- Capacitance: 0.033 uF
- Capacitance Tolerance: ±20%
- Voltage AC: 300 VAC (X1)
- Voltage DC: 630 VDC
- Temperature Range: -40°C to +110°C
- Rated Temperature: 110°C
- Dissipation Factor: 1.3% at 1kHz
- Insulation Resistance: 12 GΩ
- Max Dielectric Voltage: 1200 V (peak)
- Dimensions: Length 30mm +5mm, Width 15.2mm ±0.4mm, Height 13mm MAX, Max diameter 19mm, Lead spacing 15.2mm ±0.4mm
- Construction: Molded, radial style
- Features: EMI Safety, RoHS compliant
- Material: Metallized paper dielectric
- Weight: 2.7g
- Certifications: ENEC, UL, cUL
Buy the Buy KEMET Film Metallized Paper Capacitor Part Number PME271E533MR30 Online
Purchase the KEMET PME271E533MR30 film metallized paper capacitor online for your power supply, industrial, or motor drive applications. This high-quality component offers 0.033 uF capacitance with a ±20% tolerance, rated at 300 VAC (X1 safety class) and 630 VDC for versatile use. Operating in temperatures from -40°C to +110°C, it features molded construction, wire leads, and ensures safety compliance with RoHS, UL, and ENEC certifications. Ideal for EMI filtering and safety-critical applications, it provides highly reliable insulation resistance of 12 GOhms and minimal dissipation, ensuring long-lasting performance in demanding environments.
Get KEMET PME271E533MR30 today—designed for safety, EMI filtering, and reliable power applications.
Frequently Asked Questions
Where can I buy KEMET PME271E533MR30?
You can click on the BUY or RFQ button to purchase PME271E533MR30 from an authorized KEMET distributor.
How do I troubleshoot issues or seek technical support for part PME271E533MR30?
You can download the PME271E533MR30 datasheet or visit the KEMET website for support.
Who is the manufacturer of PME271E533MR30?
KEMET
