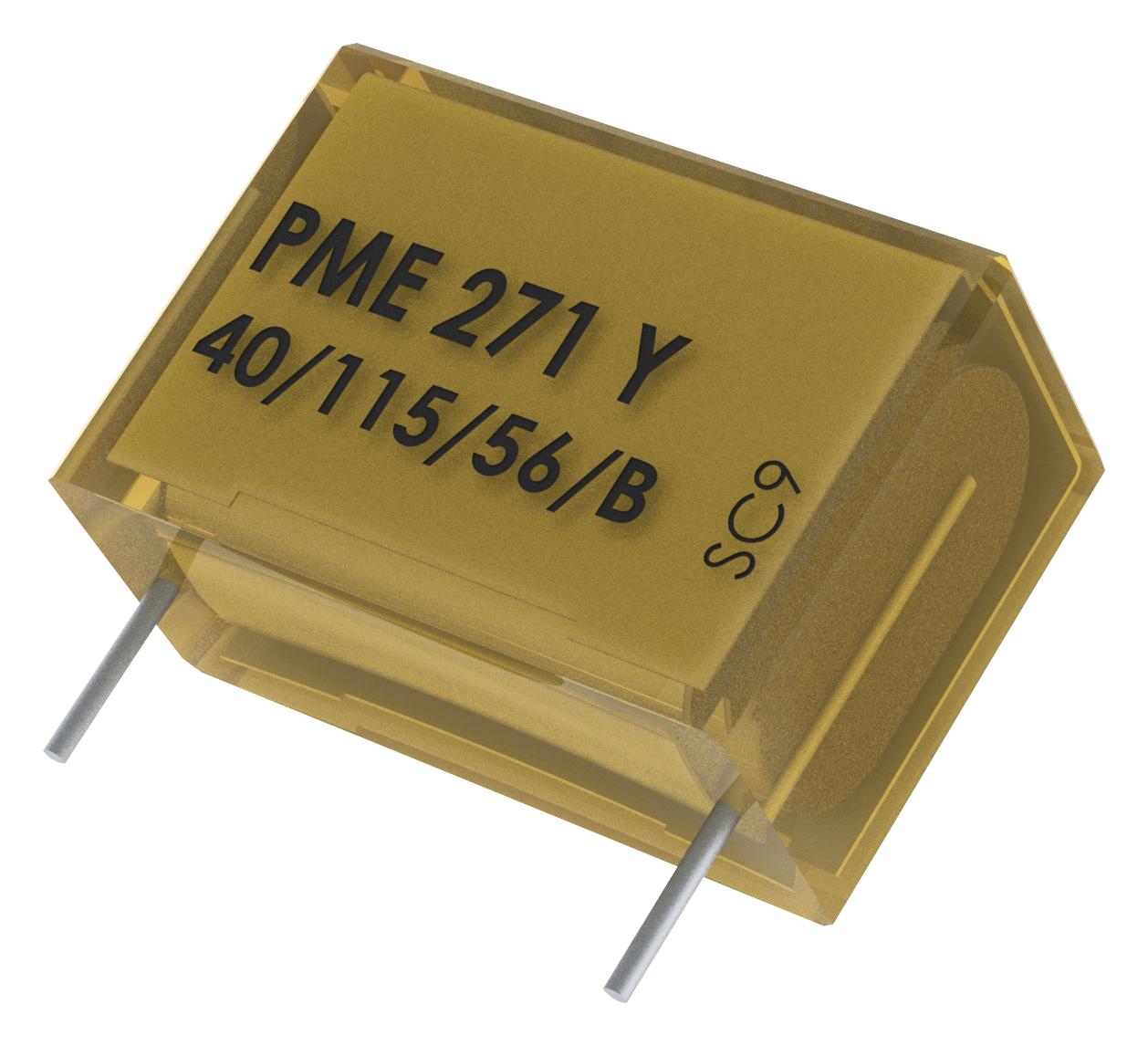

KEMET PME271M422MR30 Safety Capacitor
The PME271M422MR30 is a high-reliability film metallized paper capacitor designed for safety and EMI filtering in industrial and electronic applications. Featuring a capacitance of 2200 pF with ±20% tolerance, it operates at 275 VAC (X2) and 630 VDC, with a maximum temperature range of -40°C to +110°C. Encased in a molded construction with wire leads, it offers excellent insulation resistance of 12 GOhms and a dissipation factor of 1.3% at 1kHz. Suitable for safety-critical environments, it is RoHS compliant, ENEC, UL, and cUL certified, and features a radial style with lead spacing of 10.2mm.
KEMET PME271M422MR30 Safety Capacitor Specifications:
- Capacitance: 2200 pF
- Capacitance Tolerance: 20%
- Voltage AC: 275 VAC (X2)
- Voltage DC: 630 VDC
- Temperature Range: -40°C to +110°C
- Rated Temperature: 110°C
- Dissipation Factor: 1.3% 1kHz
- Insulation Resistance: 12 GOhms
- Lead Spacing: 10.2mm +/- 0.4mm
- Dimensions: Length 13.5mm MAX, Height 7.5mm MAX, Thickness 3.9mm MAX
- Style: Radial, Molded Construction
- Features: EMI Safety
- Certifications: ENEC, UL, cUL
- RoHS Compliant
Buy the KEMET Series PME271M Capacitor: 2200 pF 275 VAC 630 VDC
Purchase the KEMET PME271M422MR30 safety capacitor online today and enjoy reliable performance with high capacitance, voltage capacity, and safety certifications. Designed for industrial and electronic applications, it features a robust molded construction, excellent insulation resistance, and compliance with RoHS standards. Its radial style with precise lead spacing ensures easy installation in safety-critical systems. Whether for EMI filtering or safety applications, this high-performance film capacitor guarantees durability, stability, and adherence to international safety standards, making it an essential component for your electronic equipment.
Buy KEMET PME271M422MR30 high-reliability safety capacitor now and ensure optimal EMI filtering and performance for your industrial and electronic applications.
Frequently Asked Questions
Where can I buy KEMET PME271M422MR30?
You can click on the BUY or RFQ button to purchase PME271M422MR30 from an authorized KEMET distributor.
How do I troubleshoot issues or seek technical support for part PME271M422MR30?
You can download the PME271M422MR30 datasheet or visit the KEMET website for support.
Who is the manufacturer of PME271M422MR30?
KEMET
