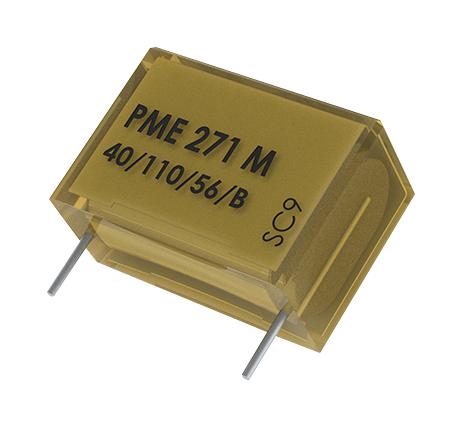

KEMET PME271M433MR30 Safety Capacitor
The KEMET PME271M/P276 is a safety-rated metallized paper capacitor designed for EMI safety applications. It features a capacitance of 3300 pF with a tolerance of 20%, rated for 275 VAC (X2) and 630 VDC. This molded, radial component operates within a temperature range of -40°C to +110°C, with a dissipation factor of 1.3% at 1kHz and an insulation resistance of 12 GOhms. Its compact dimensions include a maximum length of 13.5mm, height of 8.2mm, and lead spacing of 10.2mm, ideal for industrial safety and filtering uses.
KEMET PME271M433MR30 Safety Capacitor Specifications:
- Capacitance: 3300 pF
- Capacitance Tolerance: 20%
- Voltage AC: 275 VAC (X2)
- Voltage DC: 630 VDC
- Temperature Range: -40°C to +110°C
- Rated Temperature: 110°C
- Dissipation Factor: 1.3% at 1kHz
- Insulation Resistance: 12 GOhms
- Max dVidt: 1200 Vius
- Dimensions: Length 13.5mm MAX, Height 8.2mm MAX, Thickness 4.1mm MAX, Lead Spacing 10.2mm +/-0.4mm, Lead Length 30mm +5mm, F 0.6mm NOM
- Construction: Molded, Radial
- Features: EMI Safety, Safety Class X2
- Certification: ENEC, UL, cUL, RoHS Compliant
- Packaging: Bulk, Bag, Quantity 1000
Buy the KEMET PME271M – Reliable EMI Safety Capacitor for Industrial Applications
Purchase the KEMET PME271M safety capacitor online now to enhance your industrial and electronic safety projects. With a capacitance of 3300 pF and rated voltage of 275 VAC and 630 VDC, it ensures reliable EMI filtering and safety compliance. Its molded radial design, operating temperature up to +110°C, and compact dimensions make it ideal for tight spaces and demanding environments. Buy online today to secure fast delivery, quality assurance, and technical support for your safety-critical applications.
Order your KEMET series PME271M capacitor today and ensure your projects benefit from high-quality EMI safety performance and dependable reliability.
Frequently Asked Questions
Where can I buy KEMET PME271M433MR30?
You can click on the BUY or RFQ button to purchase PME271M433MR30 from an authorized KEMET distributor.
How do I troubleshoot issues or seek technical support for part PME271M433MR30?
You can download the PME271M433MR30 datasheet or visit the KEMET website for support.
Who is the manufacturer of PME271M433MR30?
KEMET
