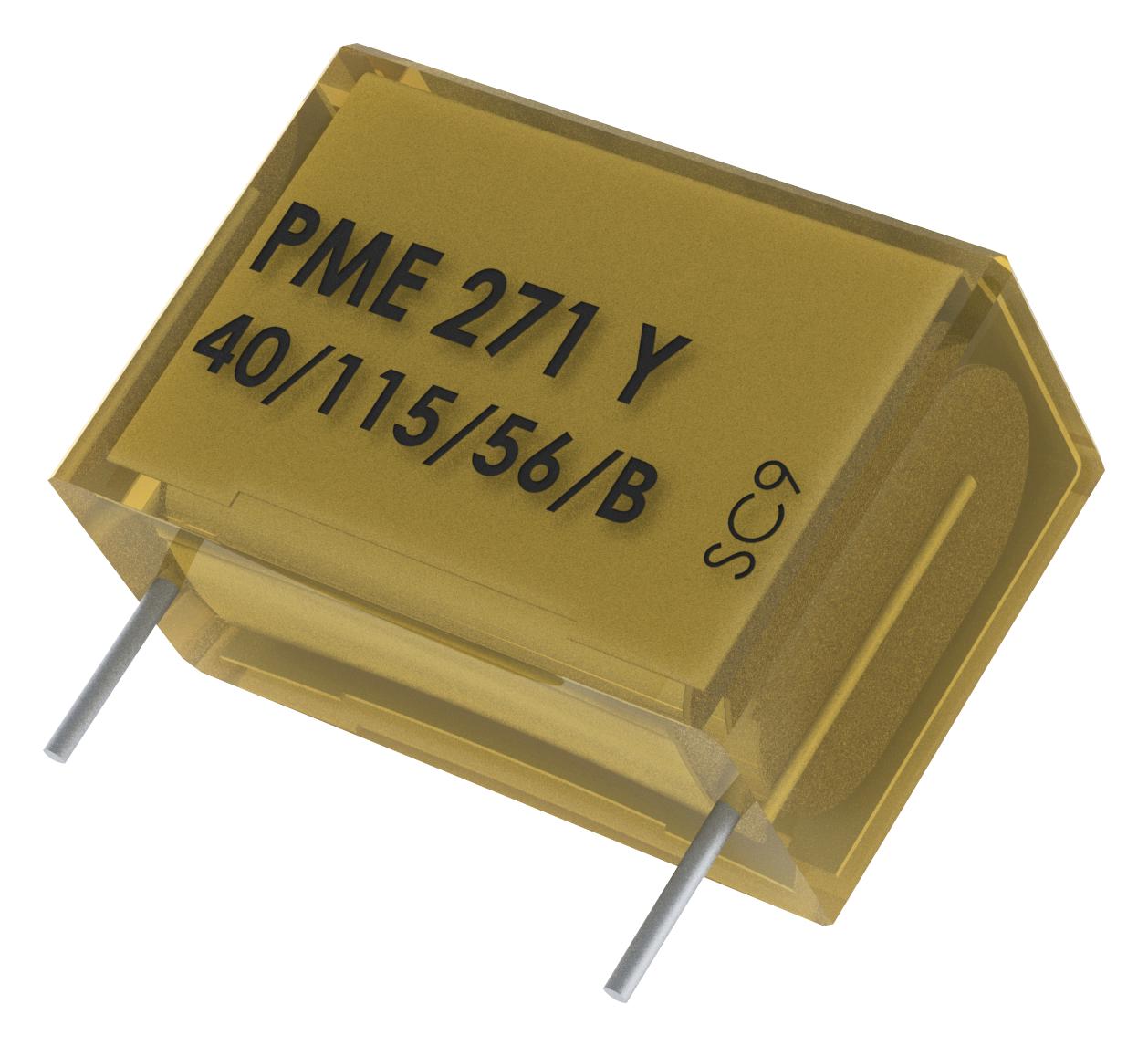

KEMET PME271M447MR30 Film Metallized Paper Capacitor
The PME271M/P276 series film metallized paper capacitor features a radial style design with EMI safety and UL, ENEC, and cUL certification. It offers a capacitance of 4700 pF with a 20% tolerance, rated for 275 VAC (X2) and 630 VDC, suitable for safety applications. Operating within a temperature range of -40°C to +110°C, it has a dissipation factor of 1.3% at 1kHz and an insulation resistance of 12 GOhms. The capacitor's molded construction and lead wire configuration make it ideal for industrial and safety-critical electronic circuits.
KEMET PME271M447MR30 Film Metallized Paper Capacitor Specifications:
- Capacitance: 4700 pF
- Capacitance Tolerance: 20%
- Voltage AC: 275 VAC (X2)
- Voltage DC: 630 VDC
- Temperature Range: -40°C to +110°C
- Rated Temperature: 110°C
- Dissipation Factor: 1.3% at 1kHz
- Insulation Resistance: 12 GOhms
- Max dVidt: 1200 Vius
- Style: Radial
- Features: EMI Safety
- Safety Class: X2
- RoHS Compliant: Yes
- Construction: Molded
- Lead: Wire Leads
- Dimensions: Max width 13.5mm, height 10.5mm, length 30mm +5mm, lead spacing 10.2mm ±0.4mm
- Packaging: Bulk, Bag, Quantity: 800
- Certifications: UL, ENEC, cUL
Buy the KEMET Series PME271M Capacitor: 4700 pF, 275 VAC, 630 VDC
Enhance your electrical projects with the KEMET Series PME271M metallized paper capacitor, offering 4700 pF capacitance, 275 VAC safety rating, and UL/ENEC/cUL certifications. Its molded construction and wide operating temperature range of -40°C to +110°C make it suitable for industrial and safety applications. With a dissipation factor of 1.3% at 1kHz and insulation resistance of 12 GOhms, this reliable capacitor ensures stable performance in complex circuits. Compatible with various safety-critical systems, it’s available in bulk for efficient procurement.
Order your KEMET Series PME271M 4700 pF capacitor today and enhance your safety-critical electronic designs with trusted quality and performance.
Frequently Asked Questions
Where can I buy KEMET PME271M447MR30?
You can click on the BUY or RFQ button to purchase PME271M447MR30 from an authorized KEMET distributor.
How do I troubleshoot issues or seek technical support for part PME271M447MR30?
You can download the PME271M447MR30 datasheet or visit the KEMET website for support.
Who is the manufacturer of PME271M447MR30?
KEMET
