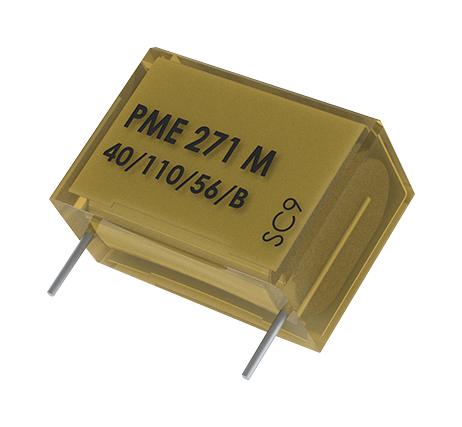

KEMET PME271MA4680MR30 High-Voltage Film Capacitor
The PME271M/P276 series ceramic capacitor is designed with metallized paper dielectric, offering EMI safety and high voltage handling. It features a radial H style construction with wire leads, rated for 275 VAC (X2), 630 VDC, and a temperature range from -40°C to +110°C. Compact and molded, it provides a capacitance of 6800 pF with a tolerance of 20% and a dissipation factor of 1.3% at 1kHz. Suitable for industrial and safety applications offering reliable performance in demanding environments.
KEMET PME271MA4680MR30 High-Voltage Film Capacitor Specifications:
- Dielectric: Metallized Paper
- H Style: Radial
- Features: EMI Safety
- RoHS: Yes
- Lead Type: Wire Leads
- Safety Class: X2
- Certifications: ENEC, UL, cUL
- Construction: Molded
- Dimensions: Length 13.5mm MAX, Height 10.5mm MAX, Thickness 5.1mm MAX, Lead Spacing 10.2mm
- Capacitance: 6800 pF
- Capacitance Tolerance: 20%
- Voltage AC: 275 VAC (X2)
- Voltage DC: 630 VDC
- Temperature Range: -40/+110°C
- Dissipation Factor: 1.3% at 1kHz
- Insulation Resistance: 12 GOhms
- Max dV/dt: 1200 V/μs
Buy the KEMET Series PME271M Capacitor: 6800 pF 275 VAC 630 VDC
Purchase the KEMET PME271M high-voltage film capacitor online today to ensure dependable performance in demanding industrial environments. With a capacitance of 6800 pF, rated for 275 VAC and 630 VDC, it features EMI safety, a compact molded design, and a wide operating temperature range from -40°C to +110°C. Its robust construction guarantees longevity and consistent performance, making it suitable for safety-critical applications requiring high insulation resistance and low dissipation factor. Order now for quick delivery and reliable operation.
Buy KEMET PME271M capacitor now and experience unmatched reliability and high-voltage safety for industrial applications.
Frequently Asked Questions
Where can I buy KEMET PME271MA4680MR30?
You can click on the BUY or RFQ button to purchase PME271MA4680MR30 from an authorized KEMET distributor.
How do I troubleshoot issues or seek technical support for part PME271MA4680MR30?
You can download the PME271MA4680MR30 datasheet or visit the KEMET website for support.
Who is the manufacturer of PME271MA4680MR30?
KEMET
