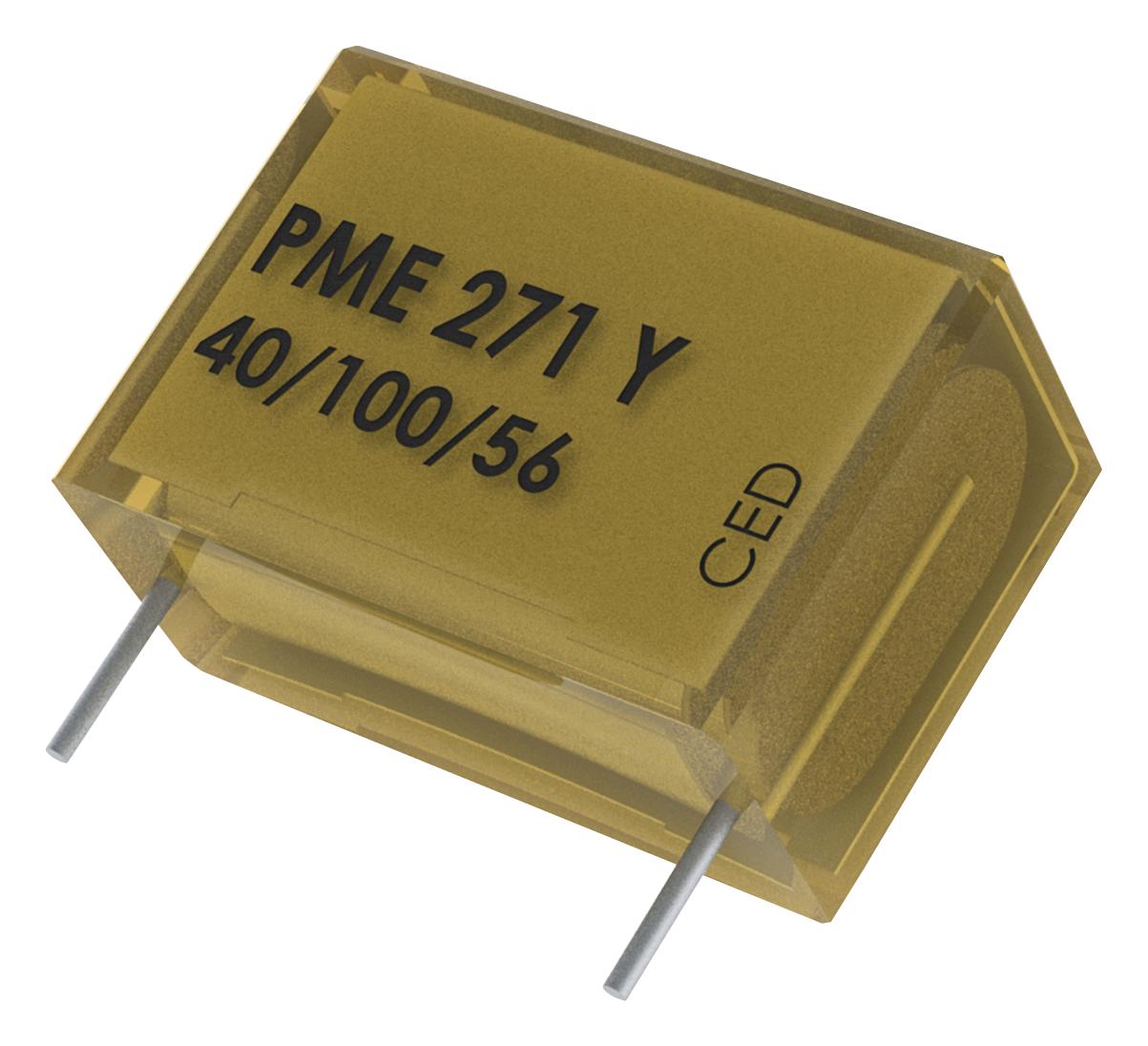

KEMET PME271Y447MR19T0 Metallized Paper Capacitor
The PME271Y/P271 series metallized paper radial capacitor offers 4700 pF capacitance with a 20% tolerance, suitable for safety and EMI filtering applications. Designed for AC voltages up to 250 VAC and DC voltages up to 1000 VDC, it features a molded construction with a dielectric of metallized paper. It operates within a temperature range of -40°C to +100°C, with a dissipation factor of 1.3% at 1 kHz and an insulation resistance of 12 GOhms. The capacitor includes leads with a 10.2mm spacing, weighs 108g, and complies with RoHS, UL, ENEC, cUL, and CQC standards.
KEMET PME271Y447MR19T0 Metallized Paper Capacitor Specifications:
- Capacitance: 4700 pF
- Capacitance Tolerance: 20%
- Voltage AC: 250 VAC (Y2)
- Voltage DC: 1000 VDC
- Temperature Range: -40°C to +100°C
- Rated Temperature: 100°C
- Dissipation Factor: 1.3% at 1 kHz
- Insulation Resistance: 12 GOhms
- Lead Spacing: 10.2mm
- Component Weight: 108g
- Dielectric: Metallized Paper
- Construction: Molded
- Features: EMISafety, RoHS compliant
- Certifications: UL, ENEC, cCUL, CQC
- Series: PME271Y/P271
- Safety Class: Y2
- Max dV/dt: 2000 V/us
Buy the KEMET Series PME271Y/P271 Metallized Paper Capacitor: PME271Y447MR19T0
Purchase the KEMET PME271Y447MR19T0 metallized paper capacitor online today. It offers 4700 pF capacitance, 250 VAC voltage, 1000 VDC rating, and RoHS compliance. Designed for safety and EMI filtering, this molded component with lead spacing of 10.2mm features a temperature range from -40°C to +100°C and a dissipation factor of 1.3% at 1 kHz. Weighing 108g with UL, ENEC, cCUL, and CQC certifications, it ensures high performance and safety across various demanding applications. Order now for reliable component integration.
Buy KEMET PME271Y447MR19T0 now and experience unmatched reliability and high-voltage performance for safety and filtering applications.
Frequently Asked Questions
Where can I buy KEMET PME271Y447MR19T0?
You can click on the BUY or RFQ button to purchase PME271Y447MR19T0 from an authorized KEMET distributor.
How do I troubleshoot issues or seek technical support for part PME271Y447MR19T0?
You can download the PME271Y447MR19T0 datasheet or visit the KEMET website for support.
Who is the manufacturer of PME271Y447MR19T0?
KEMET
