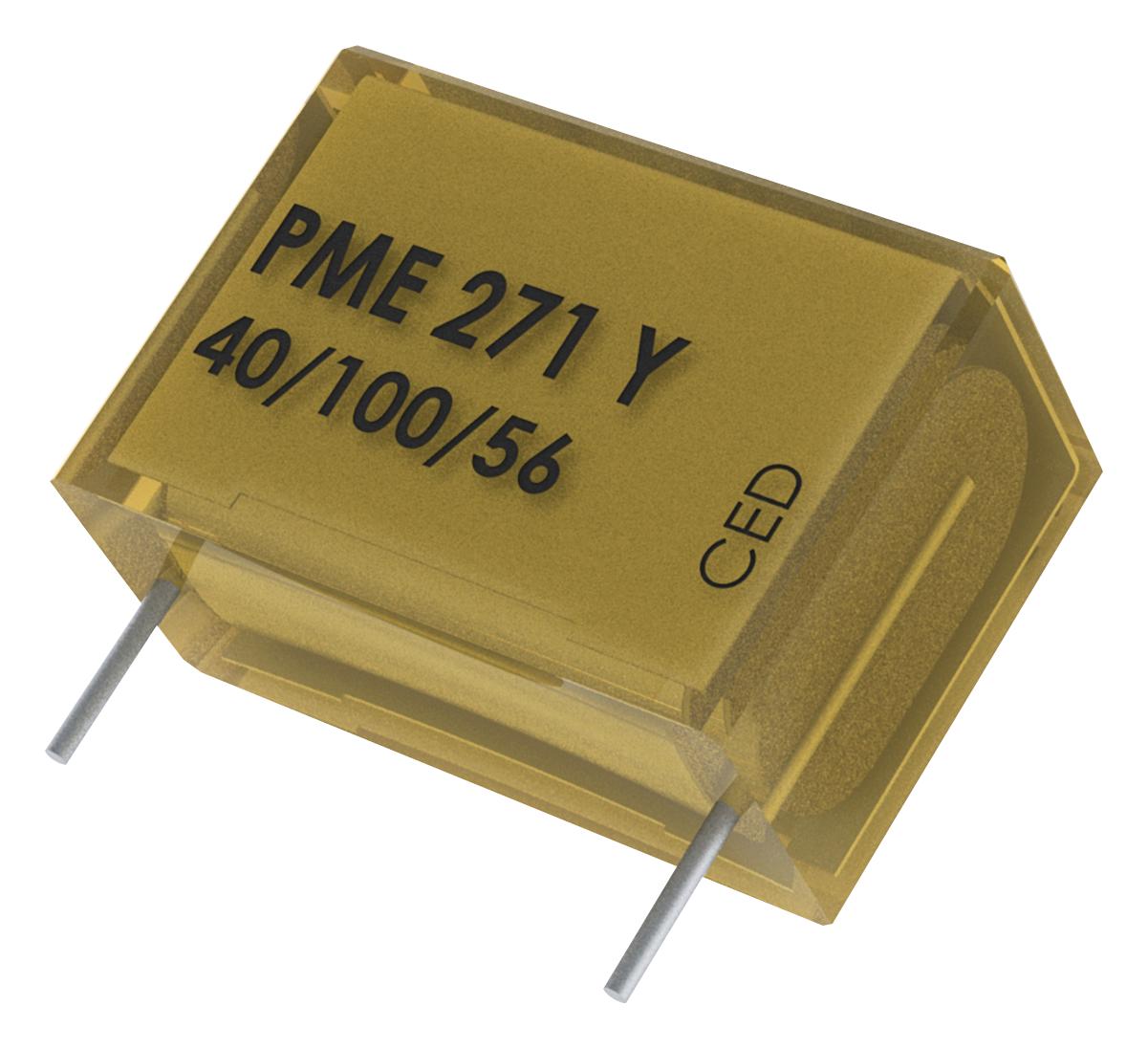

KEMET PME271Y510MR30 Multilayer Metallized Paper Capacitor
The PME271Y Series are multilayer metallized paper capacitors encapsulated in self-extinguishing material meeting UL 94 V-0 standards. Designed mainly for electromagnetic interference suppression in Y2 applications, these capacitors are suitable for line-to-earth configurations worldwide. They feature approvals from ENEC, UL, cUL, and CQC, operate at a rated voltage of 250 VAC, and have capacitance values ranging from 0.001 to 0.1 µF with ±20% tolerance. Capable of operating from -40°C to +100°C, they conform to climatic category 40/100/56/B and undergo rigorous screening, ensuring high safety and reliability in industrial and safety applications.
KEMET PME271Y510MR30 Multilayer Metallized Paper Capacitor Specifications:
- Capacitance: 0.01 µF
- Capacitance Tolerance: ±20%
- Rated Voltage DC: 1000 VDC
- Voltage AC: 250 VAC
- Dimensions: Length 18.5mm MAX, Height 10.5mm MAX, Thickness 5.2mm MAX, Lead Spacing 15.2mm ±0.4mm, Package Size: 30mm +5mm
- Temperature Range: -40°C to +100°C
- Dissipation Factor: 1.3% at 1kHz
- Insulation Resistance: 12 GOhms
- Max dv/dt: 1,400 V
- Agency Approvals: ENEC, UL, CUL, CQC
- RoHS Compliant, Lead-Free
- Packaging: Bulk, Tape and Reel per IEC 60286-2
- Safety Class: Y2
- Screening: 100% at 3,000 VDC
- Flammability: UL 94 V-0 material
- Application: EMI suppression for industrial safety
- Construction: Molded multilayer metallized paper
Buy the KEMET PME271Y – Reliable EMI Suppressor Capacitors for Industrial Applications
Discover the high-quality KEMET PME271Y capacitor designed for EMI suppression and safety in industrial applications. With UL 94 V-0 flame retardant casing, approvals from ENEC, UL, CUL, and CQC, and rated for 250 VAC, these capacitors ensure reliable performance from -40°C to +100°C. They are RoHS compliant, lead-free, and rigorously tested for safety. Ideal for line-to-earth configurations in various electronic systems, this versatile capacitor combines durability, safety, and compliance, making it a top choice for professionals seeking dependable EMI suppression components.
Buy KEMET PME271Y now and experience unmatched reliability and performance in EMI suppression for industrial safety.
Frequently Asked Questions
Where can I buy KEMET PME271Y510MR30?
You can click on the BUY or RFQ button to purchase PME271Y510MR30 from an authorized KEMET distributor.
How do I troubleshoot issues or seek technical support for part PME271Y510MR30?
You can download the PME271Y510MR30 datasheet or visit the KEMET website for support.
Who is the manufacturer of PME271Y510MR30?
KEMET
