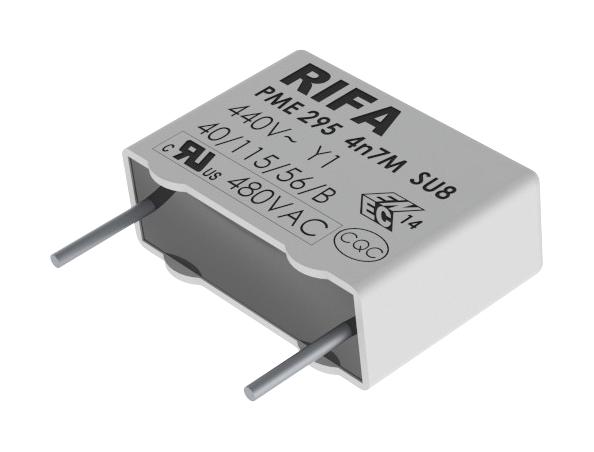

KEMET PME295RB4220MR30 High-Voltage Film Capacitor
The PME295RB4220MR30 is a high-voltage film capacitor designed for safety applications. Featuring a capacitance of 2200 pF with a 20% tolerance, it operates at voltages up to 440 VAC AC and 1500 VDC. It conforms to ENEC, UL, and cUL standards, with a maximum operating temperature of 115°C. Constructed with metallized paper dielectrics and radial lead configuration, this capacitor ensures reliable performance in safety-critical systems. Its compact size, rated at 125mm maximum height and 18mm maximum length, makes it suitable for industrial and electronic applications requiring robust insulation and high dielectric strength.
KEMET PME295RB4220MR30 High-Voltage Film Capacitor Specifications:
- Capacitance: 2200 pF
- Capacitance Tolerance: 20%
- Voltage AC: 440 VAC (ENEC), 480 VAC (UL, cUL)
- Voltage DC: 1500 VDC
- Maximum Temperature: 115°C
- Rated Temperature: 115°C
- Dielectric: Metallized paper
- Style: Radial
- Features: EMISafety
- RoHS Compliant: Yes
- Lead Wire: Leads
- Insulation Resistance: 12 GOhms
- Dissipation Factor: 1.3% at kHz
- Max dv/dt: 2000 V/us
- Component Weight: 225g
- Certification: ENEC, UL, cUL
- Dimensions: Length up to 18mm, height up to 125mm, thickness up to 6.5mm
- Packaging: Bulk, Bag, Quantity: 400
Buy the Buy KEMET High-Voltage Film Capacitor Part Number PME295RB4220MR30 Online
Purchase the KEMET PME295RB4220MR30 high-voltage safety capacitor online today. Featuring 2200 pF capacitance, 440 VAC and 1500 VDC ratings, and UL, ENEC standards, it ensures high reliability and insulation in demanding environments. Its compact design with radial leads makes it ideal for industrial and electronic applications requiring durable, high-performance dielectric materials. Easy to order in bulk, this capacitor offers excellent safety features, temperature resilience up to 115°C, and robust dielectric strength, providing peace of mind for critical safety and high-voltage projects.
Get KEMET PME295RB4220MR30 today—built for safety, high-voltage performance, and reliable insulation in industrial and electronic systems.
Frequently Asked Questions
Where can I buy KEMET PME295RB4220MR30?
You can click on the BUY or RFQ button to purchase PME295RB4220MR30 from an authorized KEMET distributor.
How do I troubleshoot issues or seek technical support for part PME295RB4220MR30?
You can download the PME295RB4220MR30 datasheet or visit the KEMET website for support.
Who is the manufacturer of PME295RB4220MR30?
KEMET
