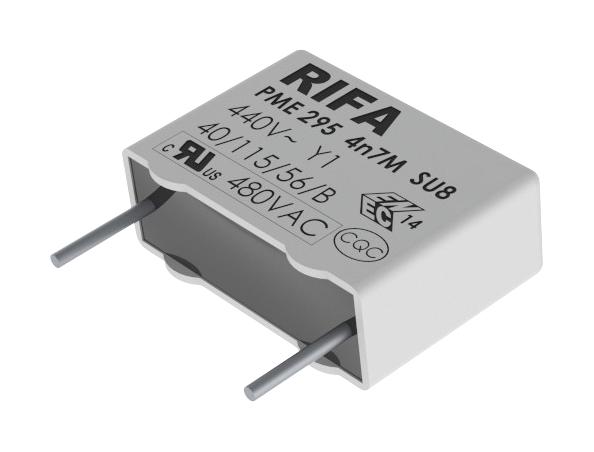

KEMET PME295RB4470MR30 High-Voltage Safety Capacitor
The PME295RB4470MR30 is a high-voltage, metallized paper capacitor designed for safety and industrial applications. It features a capacitance of 4700 pF with a 20% tolerance, rated for 440 VAC (ENEC) and 480 VAC (UL, cUL). Suitable for environments requiring reliable performance up to 115°C, this radial-style capacitor includes safety certifications such as UL and ENEC. It has a lead spacing of 15mm, dissipation factor of 1.3%, and insulation resistance of 12GOhms, making it ideal for energy, filtering, and safety functions in electrical systems.
KEMET PME295RB4470MR30 High-Voltage Safety Capacitor Specifications:
- Capacitance: 4700 pF
- Capacitance Tolerance: 20%
- Voltage AC: 440 VAC (ENEC), 480 VAC (UL, cUL)
- Voltage DC: 1500 VDC
- Temperature Range: -40°C to +115°C
- Rated Temperature: 115°C
- Dielectric: Metallized Paper
- Style: Radial
- Features: EMISafety, RoHS Compliant
- Lead Spacing: 15mm
- Dissipation Factor: 1.3% at kHz
- Insulation Resistance: 12 GOhms
- Max dv/dt: 2000 V/us
- Component Weight: 35g
Buy the Buy KEMET High-Voltage Capacitor Part Number PME295RB4470MR30 Online
Purchase the KEMET PME295RB4470MR30 online to benefit from a high-quality, UL and ENEC certified safety capacitor. With a capacitance of 4700 pF, rated for 440/480 VAC and 115°C, it is ideal for energy and safety applications. Its radial design, lead spacing of 15mm, and excellent insulation resistance make it suitable for demanding electrical environments. Enjoy quick online ordering, competitive pricing, and trusted performance that enhances your electrical safety and filtering systems efficiently and reliably.
Buy KEMET PME295RB4470MR30 now and ensure reliable safety and energy filtering with this high-voltage metallized paper capacitor.
Frequently Asked Questions
Where can I buy KEMET PME295RB4470MR30?
You can click on the BUY or RFQ button to purchase PME295RB4470MR30 from an authorized KEMET distributor.
How do I troubleshoot issues or seek technical support for part PME295RB4470MR30?
You can download the PME295RB4470MR30 datasheet or visit the KEMET website for support.
Who is the manufacturer of PME295RB4470MR30?
KEMET
