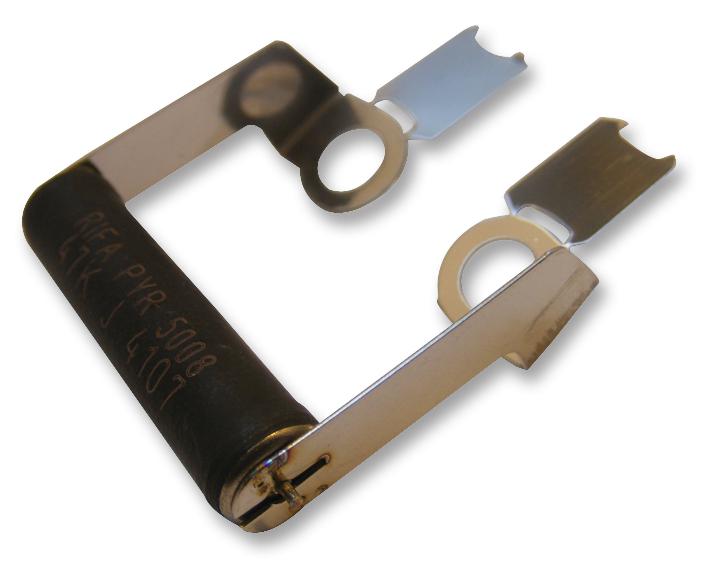

KEMET PYR751118 Voltage Balancing Resistor
The PYR 7511 series resistors are wire-wound stainless steel components designed for voltage balancing and discharge of electrolytic capacitors. They fit capacitor diameters from 75 to 90 mm and are easy to mount using adjustable brackets. Manufactured according to CECC 40201 and MIL-R26E standards, these resistors have resistance values of 10, 13, 18, 27, or 47 kΩ with a tolerance of ±5%. Rated for 700 VDC, they operate from -55°C to +105°C and are ideal for safely discharging series-connected electrolytic capacitors, ensuring reliability in electronic and power systems.
KEMET PYR751118 Voltage Balancing Resistor Specifications:
- Resistance range: 10-47 kΩ
- Resistance tolerance: ±5%
- Rated voltage: 700 VDC according to CECC 40201-0038
- Temperature range: -55°C to +105°C
- Material: Stainless steel wire wound with ceramic core, coated with high temperature silicone
- Fits capacitor diameters: 75-90 mm
- Standards: CECC 40201, MIL-R26E
- Dimensions: Fits capacitor diameters 75-90 mm, adjustable brackets up to 28.5 mm
- Approximate weight: 10 g (PYR 7511), 10 g (PYR 5008)
Buy the Buy PyR Resistance Part Number PYR751118 Online
Enhance your electronic system with the PYR resistance series, ideal for voltage balancing and discharge of electrolytic capacitors. These stainless steel wire-wound resistors fit capacitor diameters from 75 to 90 mm, rated at 700 VDC, ensuring safety and efficiency. They comply with CECC 40201 and MIL-R26E standards, functioning effectively from -55°C to +105°C. Easy to mount with adjustable brackets, these resistors are durable, reliable, and suitable for demanding electronic applications, providing long-lasting performance and safety in power systems.
Get PyR resistance PYR751118 today—designed for reliable voltage balancing and capacitor discharge with high-temperature tolerance and easy mounting.
Frequently Asked Questions
Where can I buy KEMET PYR751118?
You can click on the BUY or RFQ button to purchase PYR751118 from an authorized KEMET distributor.
How do I troubleshoot issues or seek technical support for part PYR751118?
You can download the PYR751118 datasheet or visit the KEMET website for support.
Who is the manufacturer of PYR751118?
KEMET
