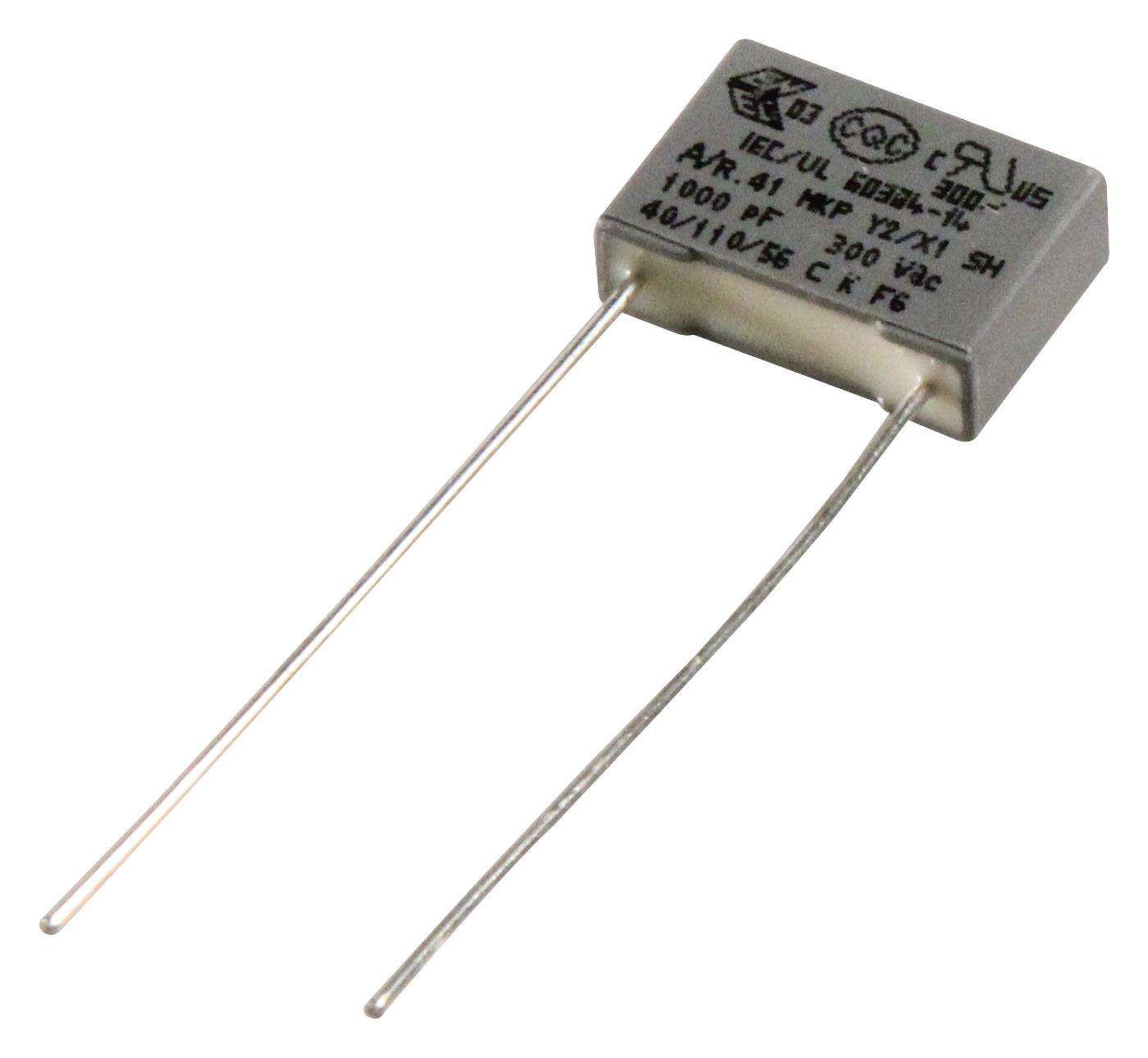

KEMET R413I215040M1M Automotive Safety Capacitor
The R41 series metallized polypropylene film capacitor with a voltage rating of 300 VAC and 1000 VDC is designed for automotive safety applications. It features a radial lead style, automotive-grade EMI safety, and RoHS compliance. With a capacitance of 0.015 uF and a tolerance of +/-20%, it is suitable for high-reliability electronic systems operating within a temperature range of -40°C to +110°C. The capacitor measures approximately 18mm in length, 11mm in height, and 5mm in thickness, and weighs around 1.411 grams. Its low dissipation factor ensures efficient performance in demanding environments.
KEMET R413I215040M1M Automotive Safety Capacitor Specifications:
- Capacitance: 0.015 uF
- Capacitance Tolerance: 20%
- Voltage AC: 300 VAC (V2)
- Voltage DC: 1000 VDC
- Temperature Range: -40°C to +110°C
- Rated Temperature: 110°C
- Dimensions: Length 18mm +0.3/-0.5mm, Height 11mm +0.1/-0.5mm, Thickness 5mm +0.2/-0.5mm
- Insulation Resistance: 100 GOhms
- Dissipation Factor: 0.2% at 1kHz
- Lead Spacing: 15mm
- Weight: 1.411 grams
- RoHS Compliant, Automotive Safety Grade Y2, AEC-Q200 qualified
Buy the KEMET Series R41 Metallized Polypropylene Capacitor: R4131215040M1M
Purchase the KEMET R4131215040M1M automotive-grade metallized polypropylene film capacitor online today. With a 0.015 uF capacitance, 300 VAC/1000 VDC voltage ratings, and RoHS compliance, it offers high reliability in demanding automotive and electronic applications. Its radial lead design, high insulation resistance, and low dissipation factor ensure optimal performance and safety. Designed for excellent thermal stability within a -40°C to +110°C temperature range, this capacitor is ideal for a variety of safety-critical systems, providing ease of installation and long-term durability for professional engineers and technicians.
Buy KEMET R4131215040M1M now and experience unmatched reliability and high-performance automotive safety capacitance.
Frequently Asked Questions
Where can I buy KEMET R413I215040M1M?
You can click on the BUY or RFQ button to purchase R413I215040M1M from an authorized KEMET distributor.
How do I troubleshoot issues or seek technical support for part R413I215040M1M?
You can download the R413I215040M1M datasheet or visit the KEMET website for support.
Who is the manufacturer of R413I215040M1M?
KEMET
