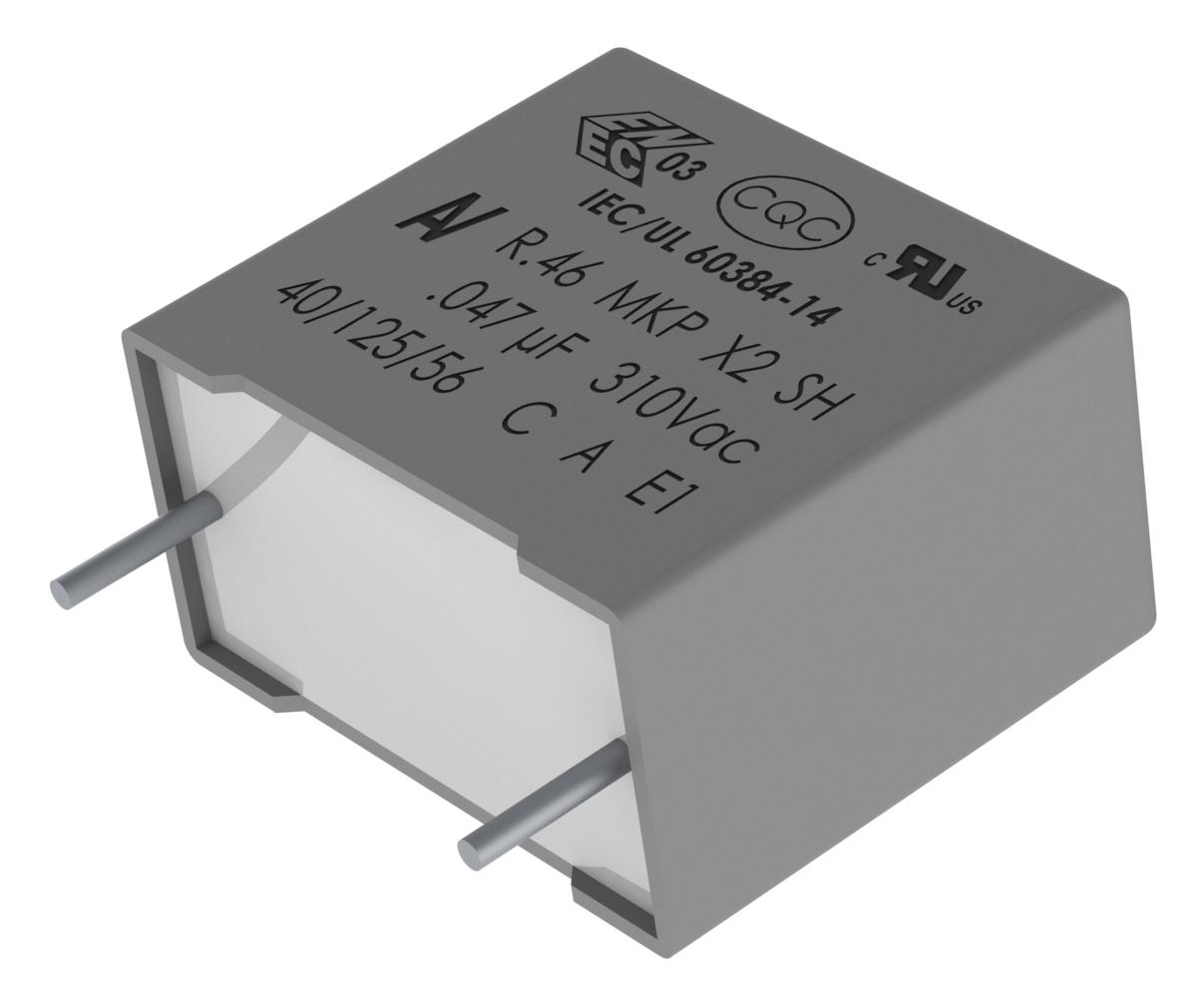

KEMET R463F2470JBH1K High-Voltage Safety Film Capacitor
The R463F2470JBH1K is a high-quality metallized polypropylene film capacitor designed for safety and EMI filtering applications. Rated at 310 VAC and 125°C, it features a capacitance of 0.047 uF with a 10% tolerance. Its radial style and safety class X2 make it suitable for AC/DC circuits, with robust insulation resistance of 100 GOhms and a maximum voltage differential of 500 V/us. Compact and reliable, this capacitor complies with RoHS standards and is qualified by ENEC, UL, cUL, and CQC, making it ideal for industrial and appliance applications.
KEMET R463F2470JBH1K High-Voltage Safety Film Capacitor Specifications:
- Capacitance: 0.047 uF
- Capacitance Tolerance: 10%
- Voltage AC: 310 VAC (X2)
- Voltage DC: 630 VDC
- Temperature Range: -40/+125°C
- Rated Temperature: 125°C
- Dielectric: Metallized Polypropylene
- Style: Radial
- Features: EMI Safety
- RoHS: Yes
- Lead Type: Cut
- Dimensions: Length 13mm +0.2/-0.5mm, Height 12mm +0.1/-0.5mm, Thickness 6mm +0.2/-0.5mm, Lead Spacing 10mm +/-0.4mm, Lead Length 3.5mm +0.5mm, Lead Diameter 0.6mm +/-0.05mm
- Insulation Resistance: 100 GOhms
- Dissipation Factor: 0.3% at 1kHz
- Max Differential Voltage: 500 V/us
- Packaging: Bulk, Bag, Quantity: 1000
- Certifications: ENEC, UL, cUL, CQC
- Safety Class: X2
- Component Weight: 1.3g
Buy the KEMET Series R46 310 VAC 125C: R463F2470JBH1K
Purchase the KEMET R463F2470JBH1K high-voltage safety film capacitor online today for dependable performance in AC/DC circuits. This 0.047 uF capacitor rated at 310 VAC and 125°C provides robust insulation resistance of 100 GOhms and features safety class X2. Its compact radial design, RoHS compliance, and international safety certifications (ENEC, UL, cUL, CQC) make it ideal for industrial, appliance, and EMI filtering applications. Order now and ensure your electronics operate safely and efficiently with this reliable component.
Order your KEMET Series R46 310 VAC 125C safety capacitor today and ensure reliable EMI filtering and protection for your industrial and electronic projects.
Frequently Asked Questions
Where can I buy KEMET R463F2470JBH1K?
You can click on the BUY or RFQ button to purchase R463F2470JBH1K from an authorized KEMET distributor.
How do I troubleshoot issues or seek technical support for part R463F2470JBH1K?
You can download the R463F2470JBH1K datasheet or visit the KEMET website for support.
Who is the manufacturer of R463F2470JBH1K?
KEMET
