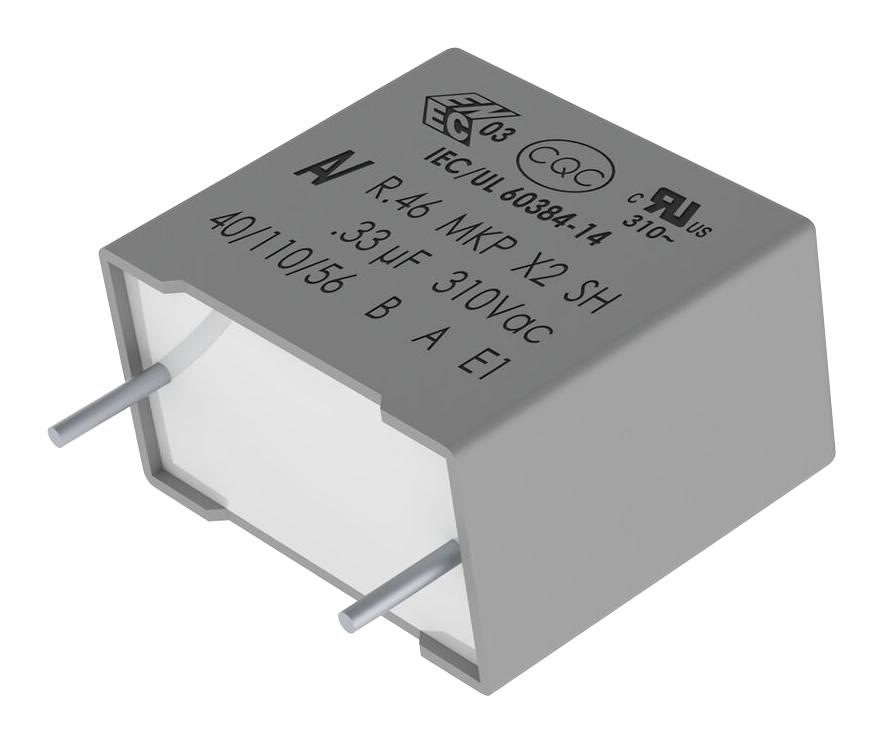

KEMET R463I24705001K High-voltage film capacitor
This high-quality film capacitor features metallized polypropylene dielectric and safety approvals, making it suitable for various electronic applications. It offers a capacitance of 0.047 uF with a 10% tolerance, rated for 310 VAC (X2) and 630 VDC. Designed with a radial lead configuration, it operates within a temperature range of -40°C to +110°C, ensuring reliability and safety. The capacitor's dimensions are approximately 18mm in length and 40.1mm in height, with a lead spacing of 15mm. Its low dissipation factor and high insulation resistance guarantee performance and durability in demanding environments.
KEMET R463I24705001K High-voltage film capacitor Specifications:
- Capacitance: 0.047 uF
- Capacitance Tolerance: 10%
- Voltage AC: 310 VAC (X2)
- Voltage DC: 630 VDC
- Dielectric: Metallized Polypropylene
- Temperature Range: -40°C to +110°C
- Rated Temperature: 110°C
- Dimensions: Length 18mm +0.3/-0.5mm, Height 40.1mm-0.5mm, Lead Spacing 15mm +/-0.4mm
- Dissipation Factor: 0.1% 1kHz
- Insulation Resistance: 100 GOhms
- Max dV/dt: 400 V/us
- Lead Type: Wire Leads
- Features: EMI Safety, Safety Class X2
- RoHS Compliant: Yes
Buy the Buy KEMET High-Voltage Film Capacitor Part Number R463124705001K Online
Purchase the KEMET high-voltage film capacitor R463124705001K online to ensure reliable performance in demanding electronic circuits. This metallized polypropylene capacitor provides excellent safety features, with ratings of 310 VAC and 630 VDC, making it ideal for filtering, surge suppression, and safety applications. Its robust construction allows operation from -40°C to +110°C, offering durability and stability. With low dissipation factor, high insulation resistance, and RoHS compliance, this capacitor guarantees quality and compliance for various industrial and consumer electronics projects, easily ordered for swift delivery.
Get KEMET R463124705001K today—built for precision, safety, and long-lasting durability in electrical and electronic applications.
