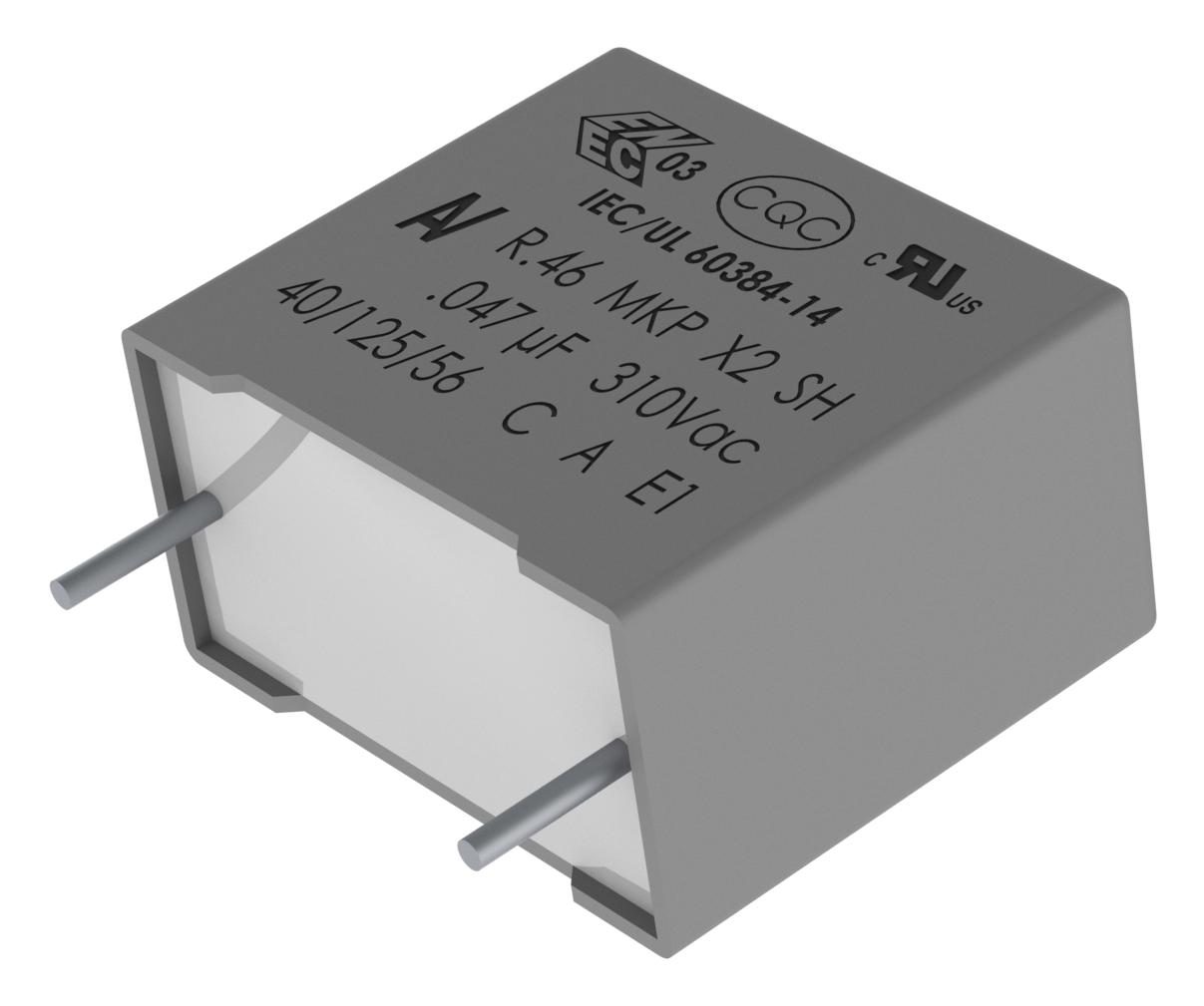

KEMET R463I3220CKH1K Safety Film Capacitor
The R46 series film capacitors are designed with metallized polypropylene dielectric, offering high safety and reliability for AC and DC applications. Rated for 310 VAC and 630 VDC at temperatures up to 125°C, these radial style capacitors feature EMI safety, RoHS compliance, and are suitable for industrial electronics. They come with wire leads, a lead spacing of 15mm, and are qualified under UL, ENEC, and cUL standards. Ideal for filtering, noise suppression, and safety applications in industrial environments, these capacitors combine durability with excellent electrical performance.
KEMET R463I3220CKH1K Safety Film Capacitor Specifications:
- Capacitance: 0.22 uF
- Capacitance Tolerance: 10%
- Voltage AC: 310 VAC (X2)
- Voltage DC: 630 VDC
- Temperature Range: -40°C to +125°C
- Rated Temperature: 125°C
- Dielectric: Metallized Polypropylene
- Style: Radial
- Features: EMI Safety
- RoHS Compliant: Yes
- Lead Type: Wire Leads
- Lead Spacing: 15mm
- Dimensions: Length 18mm ±0.5mm, Height 14.5mm +0.1/-0.5mm, Thickness 8.5mm +0.2/-0.5mm, Side Width 15mm ±0.4mm, Overall Height 18.5mm ±0.5mm, Frame Thickness 0.6mm ±0.05mm
- Packaging: T&R, Large, Quantity: 700
- Qualifications: UL, ENEC, cUL, CQC
- Dissipation Factor: 0.2% at 1KHz
- Insulation Resistance: 100 GOhms
- Max dVidt: 400 V/us
Buy the KEMET R46313220CKH1K – Reliable Safety Film Capacitor for Industrial Applications
Order the KEMET safety film capacitor R46313220CKH1K online today to ensure reliable performance in industrial and electronic applications. Designed with metallized polypropylene dielectric, it provides high safety standards and robust electrical characteristics. Suitable for filtering, noise suppression, and safety applications, this capacitor offers a high voltage rating of 310 VAC and 630 VDC, with a temperature range of -40°C to +125°C. Its radial style with wire leads and precise dimensions make installation straightforward and dependable for industrial environments, ensuring durability and consistent operation.
Get KEMET R46313220CKH1K today—built for industrial filtering, noise suppression, and long-lasting durability.
