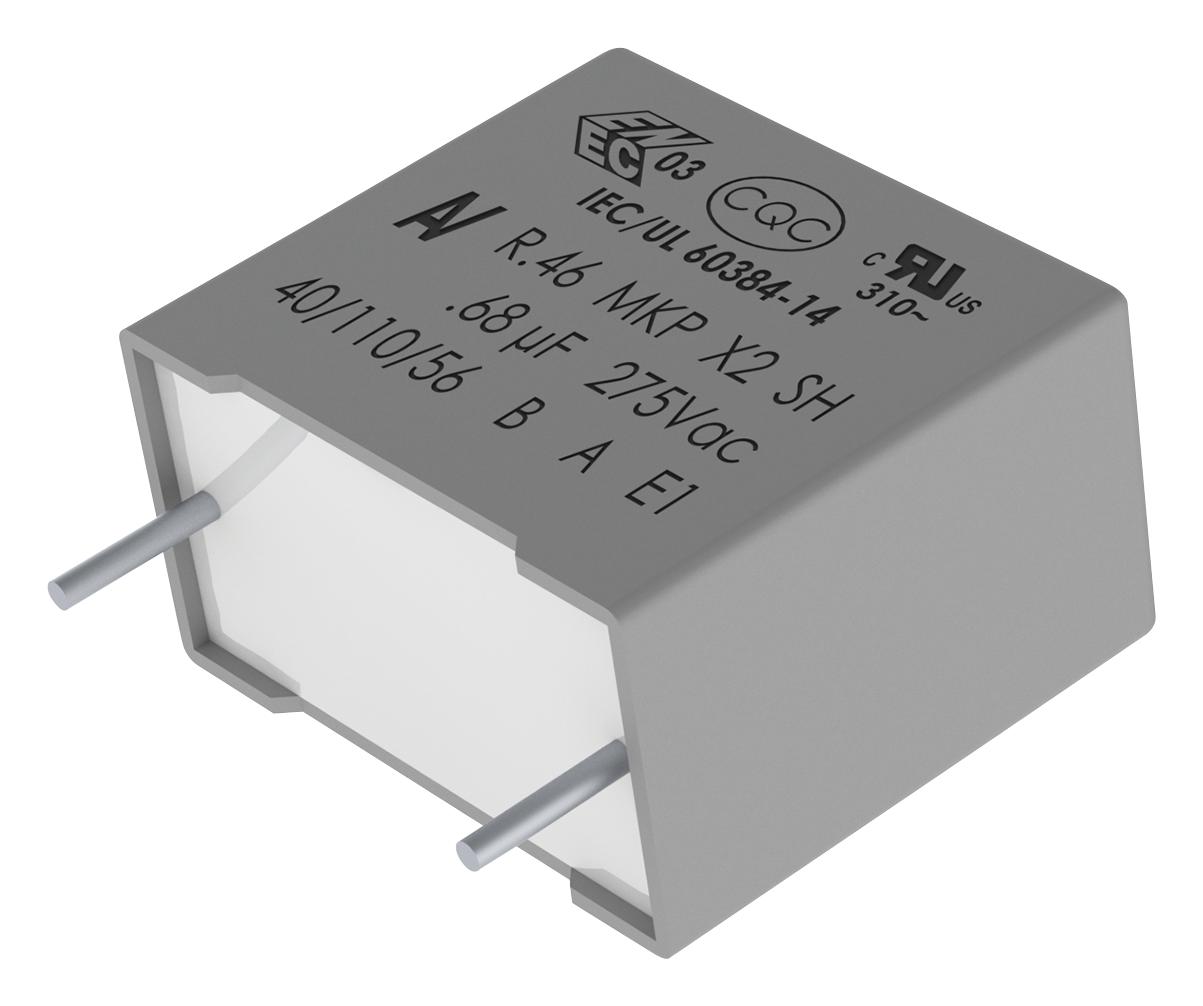

KEMET R463I347000N0M High Voltage Film Capacitor
The R46 series high-voltage film capacitor offers reliable performance with metallized polypropylene dielectric, rated at 310 VAC (X2), 630 VDC. Designed for EMI safety and safety applications, it features a radial style with lead spacing of 15mm, operating efficiently within a temperature range of -40°C to +110°C. Its compact size (18mm x 16mm x 10mm) and low dissipation factor of 0.1% ensure minimal energy loss, making it ideal for filtering, bypassing, and blocking in industrial and electronic equipment. Certified under ENEC, UL, cUL, and CQC standards, it supports demanding electronic environments with robust safety features.
KEMET R463I347000N0M High Voltage Film Capacitor Specifications:
- Capacitance: 0.47 uF
- Capacitance Tolerance: 20%
- Voltage AC: 310 VAC (X2)
- Voltage DC: 630 VDC
- Temperature Range: -40°C to +110°C
- Rated Temperature: 110°C
- Dimensions: Length 18mm ±0.5mm, Height 16mm +0.1/-0.5mm, Thickness 10mm +0.2/-0.5mm
- Lead Spacing: 15mm ±0.4mm
- Dissipation Factor: 0.1% at 1kHz
- Insulation Resistance: 63.8298 GOhms
- Maximum dV/dt: 400 V/us
- Packaging: Bulk, Bag, Quantity: 750
- Safety and Certification: ENEC, UL, cUL, CQC, X2 safety class
- Effective for filtering, bypass, and blocking applications in industrial electronics.
Buy the KEMET Series R46 High-Voltage Film Capacitor: R4631347000NOM
Enhance your electronic projects with the KEMET high-voltage film capacitor. Featuring metallized polypropylene dielectric, 310 VAC (X2), 630 VDC ratings, and safety certifications, this radial capacitor is perfect for filtering and bypassing applications. Compact and reliable, it operates efficiently within -40°C to +110°C with a low dissipation factor. Suitable for industrial, automation, and electronic systems, it offers consistent performance and easy integration. Purchase online today for dependable performance and quality assurance.
Buy KEMET R4631347000NOM now and experience unmatched reliability and performance with high voltage, safety features, and compact design.
Frequently Asked Questions
Where can I buy KEMET R463I347000N0M?
You can click on the BUY or RFQ button to purchase R463I347000N0M from an authorized KEMET distributor.
How do I troubleshoot issues or seek technical support for part R463I347000N0M?
You can download the R463I347000N0M datasheet or visit the KEMET website for support.
Who is the manufacturer of R463I347000N0M?
KEMET
