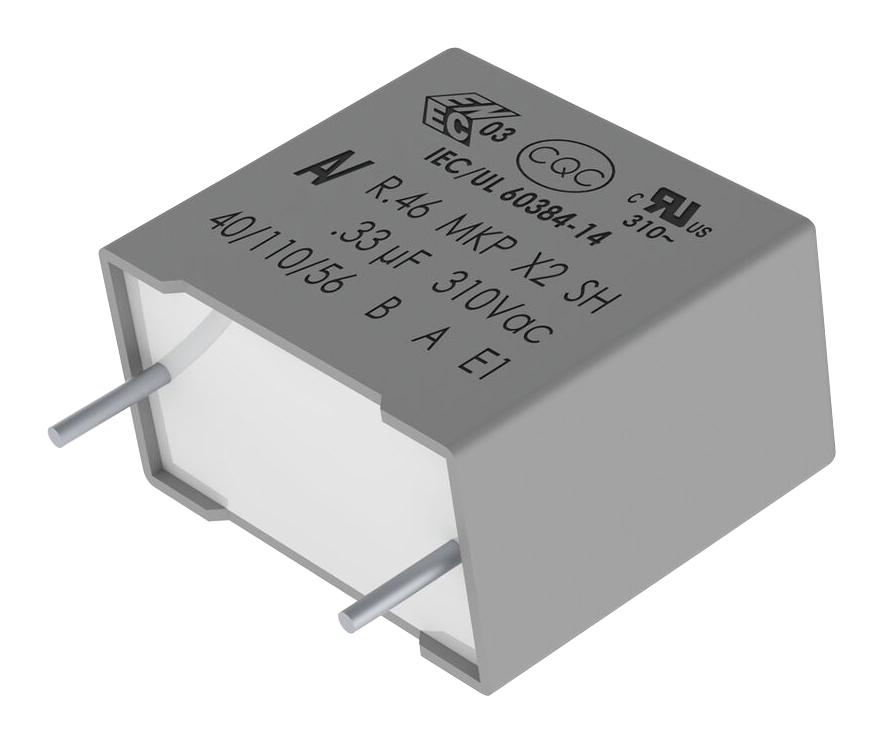

KEMET R463N347000N0M Safety Capacitor
The R46 series safety capacitor by KEMET is designed for EMI filtering in electronic circuits. Made with metallized polypropylene dielectric, it offers reliable performance at 310 VAC (X2), 630 VDC, and operating temperatures from -40°C to +110°C. Its radial style features a lead spacing of 22.5mm and safety certification including UL, ENEC, CQC. With a capacitance of 0.47 uF and 20% tolerance, this high-quality component ensures safe, stable operation for industrial and consumer electronic applications, providing excellent insulation resistance and dissipation factor.
KEMET R463N347000N0M Safety Capacitor Specifications:
- Capacitance: 0.47 uF
- Capacitance Tolerance: 20%
- Voltage AC: 310 VAC (X2)
- Voltage DC: 630 VDC
- Temperature Range: -40°C to +110°C
- Rated Temperature: 110°C
- Dielectric: Metallized Polypropylene
- Style: Radial
- Lead Spacing: 22.5mm +/-0.4mm
- Dimensions: Length 26.5mm +0.3/-0.5mm, Height 16mm +0.1/-0.5mm, Thickness 7mm +0.2/-0.5mm
- Packaging: Bulk, Bag, Quantity: 700
- Safety Certification: UL, ENEC, CQC
- Features: EMI Safety
- RoHS Compliant: Yes
- Insulation Resistance: 63.83 GOhms
- Dissipation Factor: 0.1% 1kHz
- Maximum dVdt: 200 V/us
- Component Weight: 3.625 g
Buy the KEMET R463N347000NOM – Reliable Safety Capacitor for Industrial Applications
Discover the KEMET safety capacitor R463N347000NOM, a high-performance component designed for EMI filtering and safety isolation in electronic circuits. With a capacitance of 0.47 uF, rated at 310 VAC (X2), and a 630 VDC voltage rating, it operates reliably from -40°C to +110°C. This metallized polypropylene radial capacitor features excellent insulation resistance, safety certifications including UL, ENEC, and CQC, and a lead spacing of 22.5mm. Perfect for industrial, consumer electronics, and safety-critical applications, ensuring performance and durability over time. Order online now for fast, secure delivery!
Get KEMET R463N347000NOM today—built for precision and long-lasting durability in electronic safety and EMI filtering.
Frequently Asked Questions
Where can I buy KEMET R463N347000N0M?
You can click on the BUY or RFQ button to purchase R463N347000N0M from an authorized KEMET distributor.
How do I troubleshoot issues or seek technical support for part R463N347000N0M?
You can download the R463N347000N0M datasheet or visit the KEMET website for support.
Who is the manufacturer of R463N347000N0M?
KEMET
