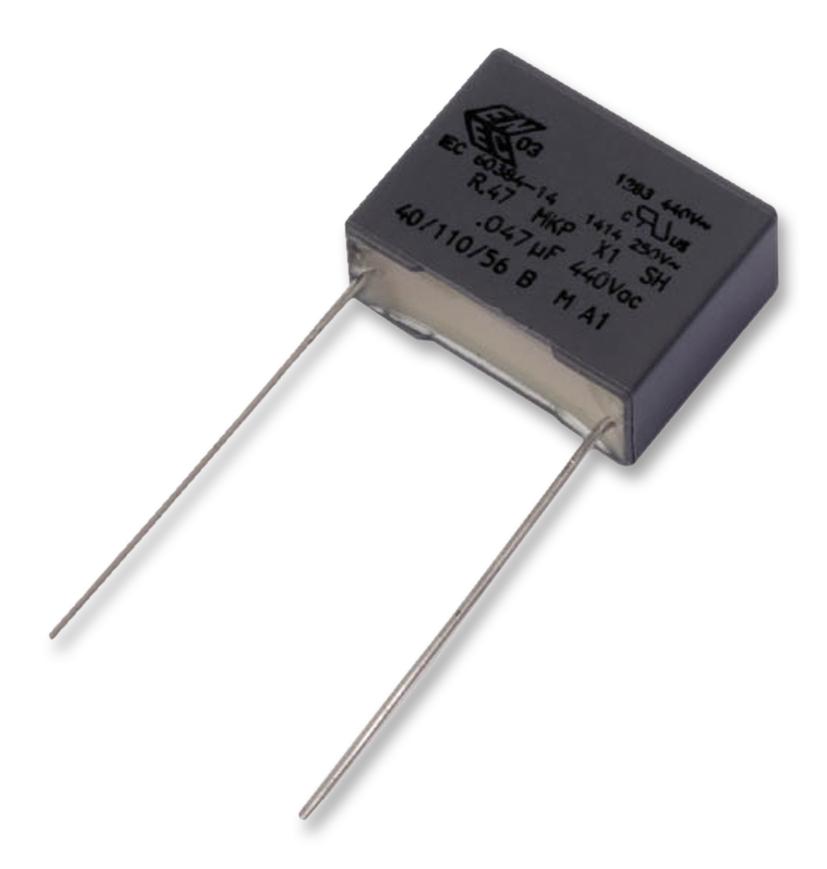

KEMET R474I247050A1K Automotive EMI Capacitor
The R47 X1 440 VAC film capacitor is designed for automotive safety and EMI safety applications, offering reliable performance with metallized polypropylene dielectric. It features a capacitance of 0.047 uF with 10% tolerance, rated for 440 VAC (X1) and 1000 VDC, with a maximum temperature of 110°C. The radial H-style component includes wire leads, with dimensions of 18mm length, 15mm lead spacing, and a height of 135mm. It adheres to RoHS standards and is qualified under AEC-Q200, ENEC, UL, and cUL certifications, suitable for demanding industrial and automotive environments.
KEMET R474I247050A1K Automotive EMI Capacitor Specifications:
- Capacitance: 0.047 uF
- Capacitance Tolerance: 10%
- Voltage AC: 440 VAC (X1)
- Voltage DC: 1000 VDC
- Temperature Range: -40°C to +110°C
- Rated Temperature: 110°C
- Dissipation Factor: 0.1% at 1kHz
- Insulation Resistance: 100 GOhms
- Max dV/dt: 600 V/us
- Dimensions: Length 18mm ±0.5mm, Height 135mm +0.1/-0.5mm, Thickness 7.5mm +0.2/-0.5mm
- Lead Spacing: 15mm
- Material: Metallized Polypropylene
- H Style: Radial with wire leads
- Features: Automotive Grade, EMI Safety
- Compliance: RoHS, AEC-Q200, ENEC, UL, cUL
Buy the YAGEO Series R47 X1 440 VAC Capacitor: R4741247050A1K
Purchase YAGEO automotive EMI safety capacitor R4741247050A1K online today and benefit from high-quality metallized polypropylene dielectric, 440 VAC rating, and robust performance in demanding industrial and automotive environments. Designed with wire leads for easy installation, it complies with RoHS and automotive safety standards. Available in bulk packaging, this capacitor provides exceptional durability with a maximum temperature of 110°C and insulation resistance of 100 GOhms, ensuring your projects meet professional standards for safety and reliability with a seamless online shopping experience.
Buy YAGEO R4741247050A1K now and experience unmatched reliability and performance in automotive safety and EMI filtering applications.
Frequently Asked Questions
Where can I buy KEMET R474I247050A1K?
You can click on the BUY or RFQ button to purchase R474I247050A1K from an authorized KEMET distributor.
How do I troubleshoot issues or seek technical support for part R474I247050A1K?
You can download the R474I247050A1K datasheet or visit the KEMET website for support.
Who is the manufacturer of R474I247050A1K?
KEMET
