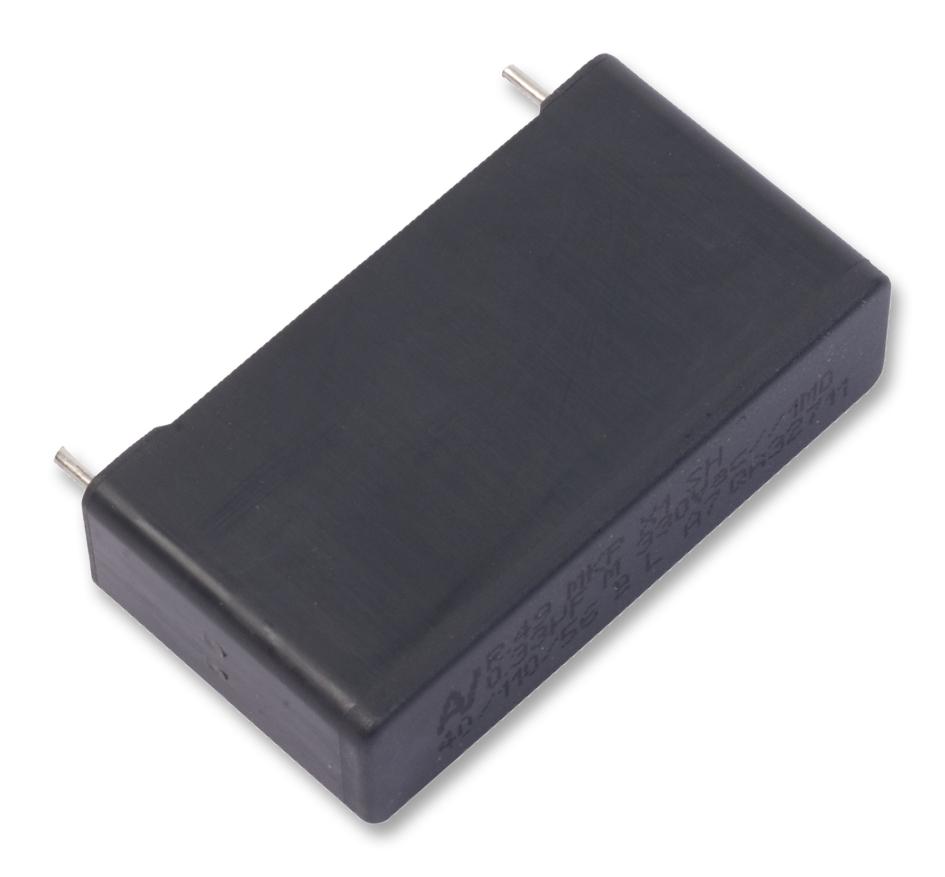

KEMET R49AI24705001K High-Voltage Film Capacitor
The R49A124705001K is a metallized polypropylene film capacitor designed for safety and EMI filtering applications. It features a voltage rating of 310 VAC (X1) and 800 VDC, with a capacitance of 0.047 uF and a tolerance of 10%. The capacitor is leaded with wire leads, has a radial H style construction, and is suitable for high-temperature environments up to 110°C. Its compact physical dimensions are approximately 18mm in length, 12mm in height, and 6mm in thickness, with a lead spacing of 15mm. It complies with RoHS requirements and boasts robust insulation resistance of 100 GOhms.
KEMET R49AI24705001K High-Voltage Film Capacitor Specifications:
- Series: R49 310 VAC
- Dielectric: Metallized Polypropylene
- Style: Radial H
- Features: EMI Safety
- RoHS: Yes
- Lead Type: Wire Leads
- Safety Class: X1
- Qualifications: ENEC, UL, cUL
- Weight: 2.159 g
- Physical Dimensions: Length 18mm +0.3/-0.5mm, Height 12mm +0.1/-0.5mm, Thickness 6mm +0.2/-0.5mm
- Lead Spacing: 15mm +/-0.4mm
- Capacitance: 0.047 uF
- Capacitance Tolerance: 10%
- Voltage AC: 310 VAC (X1)
- Voltage DC: 800 VDC
- Temperature Range: -40/+110°C
- Rated Temperature: 110°C
- Dissipation Factor: 0.1% at 1kHz
- Insulation Resistance: 100 GOhms
- Maximum dV/dt: 500 V/us
- Packaging: Bulk, Bag
- Quantity per Package: 900
Buy the Buy KEMET R49A124705001K Part Number 310VAC Film Capacitor Online
Order the KEMET R49A124705001K film capacitor online today for reliable safety-rated performance in high-voltage applications. With a capacitance of 0.047 uF and voltage ratings of 310 VAC and 800 VDC, this capacitor is designed for EMI safety and durable operation at temperatures up to 110°C. Its radial lead configuration, compact size, and RoHS compliance make it ideal for various industrial and electronic devices. Purchase now to ensure high-quality, secure, and efficient power filtering in your project.
Buy KEMET R49A124705001K now and experience unmatched reliability and safe EMI filtering with high voltage and excellent insulation resistance.
Frequently Asked Questions
Where can I buy KEMET R49AI24705001K?
You can click on the BUY or RFQ button to purchase R49AI24705001K from an authorized KEMET distributor.
How do I troubleshoot issues or seek technical support for part R49AI24705001K?
You can download the R49AI24705001K datasheet or visit the KEMET website for support.
Who is the manufacturer of R49AI24705001K?
KEMET
