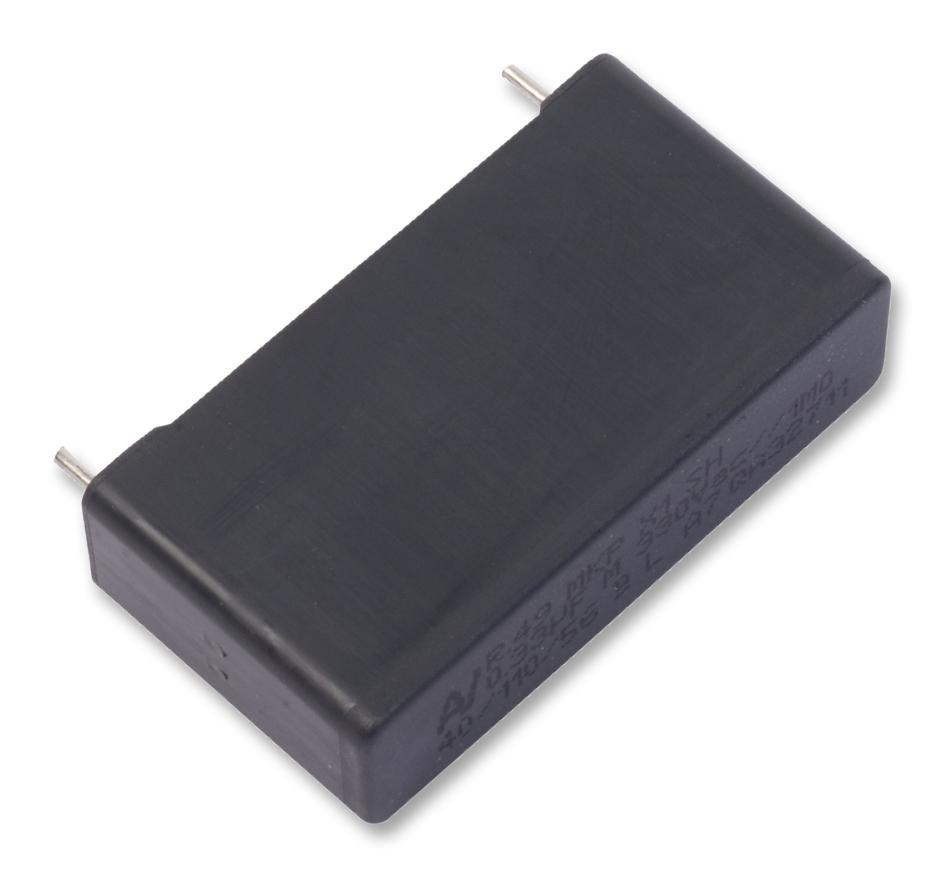

KEMET R49AI31005001K High-Voltage Film Capacitor
The R49A131005001K is a high-quality metallized polypropylene film capacitor designed for safety and EMI filtering applications. It features a capacitance of 0.1 uF with a tolerance of 10%, rated for 310 VAC (X1 safety classification) and 800 VDC. With a temperature range of -40°C to +110°C and a rated temperature of 110°C, this radial leaded capacitor offers excellent insulation resistance of 100 GOhms, low dissipation factor of 0.1% at 1kHz, and maximum dV/dt of 500 V/us, making it ideal for reliable circuit protection and filtering.
KEMET R49AI31005001K High-Voltage Film Capacitor Specifications:
- Series: R49 310 VAC
- Dielectric: Metallized Polypropylene
- H Style: Radial
- Features: EMI Safety
- RoHS: Yes
- Lead Type: Wire Leads
- Safety Class: X1
- Certifications: ENEC, UL, cUL
- Weight: 3.469 grams
- Dimensions: Length 18mm +/-0.5mm, Height 145mm +/-0.5mm, Thickness 8.5mm +0.2/-0.5mm, Lead Spacing 15mm +/-0.4mm, Safety Distance 25mm +2/-1mm
- Capacitance: 0.1 uF
- Capacitance Tolerance: 10%
- Voltage AC: 310 VAC (X1)
- Voltage DC: 800 VDC
- Temperature Range: -40°C to +110°C
- Rated Temperature: 110°C
- Dissipation Factor: 0.1% at 1kHz
- Insulation Resistance: 100 GOhms
- Max dV/dt: 500 V/us
- Packaging: Bulk, Bag (500 units)
Buy the Buy KEMET R49A131005001K Part Number R49A131005001K Online
Purchase the KEMET R49A131005001K capacitor online for reliable safety and EMI filtering. With a capacitance of 0.1 uF, 310 VAC, and 800 VDC, it ensures excellent insulation and high durability. Its radial lead design, RoHS compliance, and temperature tolerance up to 110°C make it ideal for precise electronic filtering and circuit protection. Order now to experience superior quality and performance, perfect for industrial, commercial, and safety-critical applications, ensuring your systems operate efficiently and safely over time.
Get KEMET R49A131005001K today—designed for safety, high-voltage filtering, and long-lasting performance in your electronic applications.
Frequently Asked Questions
Where can I buy KEMET R49AI31005001K?
You can click on the BUY or RFQ button to purchase R49AI31005001K from an authorized KEMET distributor.
How do I troubleshoot issues or seek technical support for part R49AI31005001K?
You can download the R49AI31005001K datasheet or visit the KEMET website for support.
Who is the manufacturer of R49AI31005001K?
KEMET
