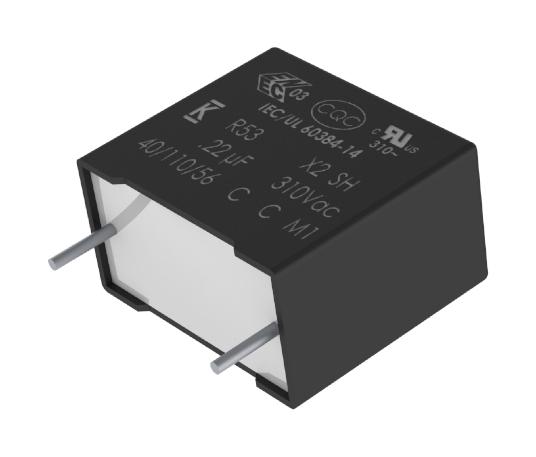

KEMET R533I347050P1M EMI Suppression Capacitor
The R53 series metallized polypropylene film capacitor is designed for EMI suppression in harsh environments, meeting automotive AEC-Q200 standards. Encapsulated in a UL 94 V-0 self-extinguishing resin, it offers high reliability at 310 VAC and operational temperatures up to 110°C. Suitable for across-the-line EMI filtering, it features low halogen content, self-healing properties, and a rugged construction compliant with international approvals including UL, ENEC, and CQC. Its compact size and various lead spacing options make it ideal for automotive and industrial applications under severe ambient conditions.
KEMET R533I347050P1M EMI Suppression Capacitor Specifications:
- Dielectric: Metallized polypropylene film
- Rated Voltage: 310 VAC (50/60 Hz)
- Maximum DC Voltage: <630 VDC
- Capacitance Range: 0.1 - 22 µF
- Capacitance Tolerance: +20%, +10%
- Operating Temperature Range: -40°C to +110°C
- Climatic Category: 40/110/56 IEC 60068-1
- Flammability Standard: UL 94 V-0
- Surge Voltage Test: 1.25 x 630 VDC for 1,000 hours
- Leakage Current: Compliant with IEC standards, Tinned Leads
- Mechanical: Resistant to vibration and shocks per MIL-STD and IEC tests
- Construction: Molded plastic case filled with self-extinguishing resin
- Lead Spacing: 15.0 mm, 22.5 mm, 27.5 mm, 37.5 mm options
- Screening: 100% factory test at 1,900 VDC
- Approval: UL, ENEC, cUL, CQC, AEC-Q200 automotive grade
Buy the Buy KEMET EMI Suppression Capacitor Part Number R533I347050P1M Online
Secure your project with the high-quality KEMET EMI suppression capacitor R533I347050P1M. Designed for automotive and industrial uses, it withstands harsh environments with operating temperatures up to 110°C and a rated voltage of 310 VAC. Featuring top safety approvals, low halogen content, and self-healing properties, this compact component ensures dependable EMI noise filtering. Available in various lead spacings, it’s perfect for across-the-line applications requiring X2 safety classification. Purchase online now for fast delivery and guaranteed reliability.
Order your KEMET Series R533I347050P1M automotive-grade EMI suppression capacitor today and ensure reliable performance in severe environmental conditions.
Frequently Asked Questions
Where can I buy KEMET R533I347050P1M?
You can click on the BUY or RFQ button to purchase R533I347050P1M from an authorized KEMET distributor.
How do I troubleshoot issues or seek technical support for part R533I347050P1M?
You can download the R533I347050P1M datasheet or visit the KEMET website for support.
Who is the manufacturer of R533I347050P1M?
KEMET
