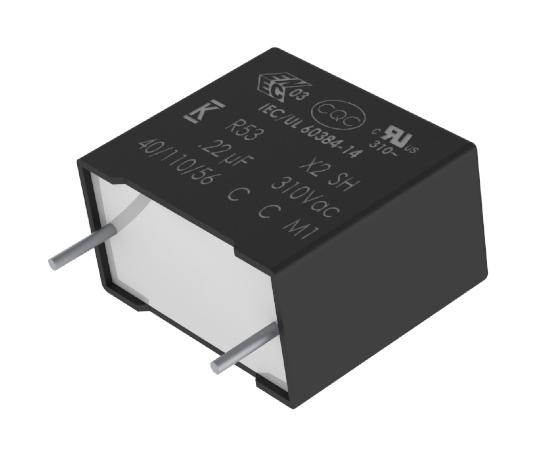

KEMET R533I368050P0K Automotive EMI Capacitor
The R53 series is constructed of metallized polypropylene film encapsulated with self-extinguishing resin, meeting UL 94 V-0 standards. Designed for harsh environments, it qualifies under AEC-Q200 for automotive applications and offers robust EMI suppression in across-the-line settings. With approvals from ENEC, UL, cUL, CQC, and certifications for safety class X2, it features a rated voltage of 310 VAC and a temperature range of -40°C to +110°C. Its low halogen content and self-healing properties make it suitable for severe ambient conditions, including connection in series with mains, power supplies, and automotive energy meters.
KEMET R533I368050P0K Automotive EMI Capacitor Specifications:
- Dielectric: Polypropylene film
- Capacitance: 0.1 - 22 μF
- Rated Voltage: 310 VAC (50/60 Hz)
- Temperature Range: -40°C to +110°C
- Climatic Category: 40/110/56 IEC 60068-1
- Capacitance Tolerance: +20%, +10%
- Approval: ENEC, UL, cUL, CQC
- Flammability: UL 94 V-0
- Lead Spacing: 15.0 - 37.5 mm
- Dimensions: Vary by model, typical height approx 18-45 mm, length 18-42 mm
- Self-Healing Properties: Yes
- Compliance: RoHS, Lead-Free
- Construction: Metal layer deposited by vacuum evaporation, non-inductive winding, plastic case with self-extinguishing resin
- Maximum Humidity Storage: 85°C, 85% RH for 1000 hours
- Vibration and Shock Resistance: MIL-STD-202, IEC 60384-14 endurance
- Approvals: Automotive AEC-Q200, ENEC, UL, cUL, CQC
Buy the KEMET R53 Automotive EMI Suppression Capacitor – Reliable Automotive Grade for Harsh Environmental Conditions
Purchase the KEMET R53 metallized polypropylene EMI suppression capacitor online today—engineered for automotive and industrial environments. Featuring a rated voltage of 310 VAC and capable of operating from -40°C to +110°C, this durable capacitor meets UL 94 V-0 flammability standards, certifications from ENEC, UL, cUL, and CQC, and complies with RoHS directives. Its self-healing properties, low halogen content, and robust construction make it ideal for harsh ambient conditions such as connection in series with mains, power supplies, and energy meters. Reliable, safe, and high-performing, order now for prompt delivery and quality assurance.
Get KEMET R53 series today—built for precision and long-lasting durability in automotive and industrial applications.
