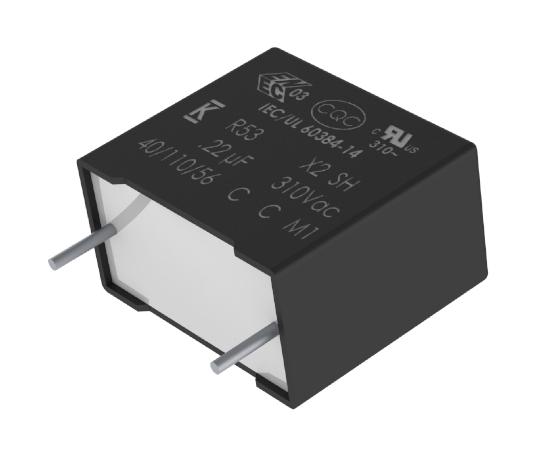

KEMET R533N412050P0K EMI Suppression Capacitor
The R53 series is a miniature metallized polypropylene film capacitor designed for EMI suppression in harsh environments. Rated at 310 VAC and operating up to 110°C, it complies with automotive and industrial standards including AEC-Q200. Encapsulated with self-extinguishing resin in UL 94 V-0 compliant material, it offers high reliability, low halogen content, and self-healing properties. Applications include across-the-line EMI filters, energy meters, and automotive electronics, especially for severe ambient conditions. Suitable for series connection in power supplies and mains connections with X2 safety classification.
KEMET R533N412050P0K EMI Suppression Capacitor Specifications:
- Capacitance range: 0.1 - 22 μF
- RatedVoltage: 310 VAC (50/60 Hz)
- Maximum DC Voltage: < 630 VDC
- Operating Temperature Range: -40°C to +110°C
- Climatic Category: 40/110/56 IEC 60068-1
- Dielectric: Polypropylene film
- Protection: Plastic case with self-extinguishing resin, UL 94 V-0
- Leakage Current: Specified at test voltage
- Insulation Resistance: Min. values measured at +25°C +5°C
- Capacitance Tolerance: +20%, +10%
- Approvals: UL, ENEC, cUL, CQC
- RoHS Compliant and Lead-Free Terminations
- Self-Healing Properties
- Lead Spacing: 15 mm, 22.5 mm, 27.5 mm, 37.5 mm
- Film Material: Metallized polypropylene
- Application: EMI suppression, automotive electronics, energy meters
- Encapsulation: Self-extinguishing resin in UL 94 V-0 compliant box
Buy the Buy KEMET EMI Suppression Capacitor Part Number R533N412050P0K Online
Purchase the KEMET EMI suppression capacitor R533N412050P0K online today. Engineered for harsh environments with automotive-grade reliability, rated at 310 VAC and operating at 110°C. It features self-healing properties, UL 94 V-0 encapsulation, and RoHS compliance. Perfect for EMI filtering applications in automotive, energy meters, and industrial power supplies. With various lead spacing options, this capacitor ensures high performance, durability, and safety standards. Order now for fast delivery and trusted quality.
Get KEMET R533N412050P0K today—built for precision and long-lasting durability in harsh environmental conditions.
Frequently Asked Questions
Where can I buy KEMET R533N412050P0K?
You can click on the BUY or RFQ button to purchase R533N412050P0K from an authorized KEMET distributor.
How do I troubleshoot issues or seek technical support for part R533N412050P0K?
You can download the R533N412050P0K datasheet or visit the KEMET website for support.
Who is the manufacturer of R533N412050P0K?
KEMET
