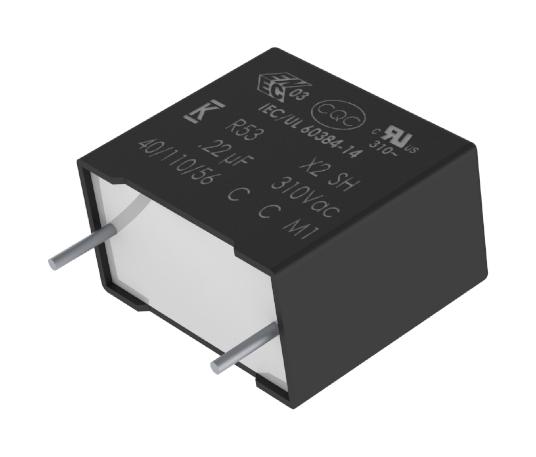

KEMET R533N418050P0K EMI Suppression Capacitor
The R533N418050P0K is a miniature metallized polypropylene film capacitor designed for EMI suppression in harsh environments and automotive applications. With a rated voltage of 310 VAC and operating temperature up to 110°C, it meets automotive and industrial standards including AEC-Q200 qualification. Encapsulated in self-extinguishing resin and meeting UL 94 V-0, it offers high reliability, low halogen content, and self-healing properties. Suitable for across-the-line EMI filtering, power supplies, and energy meters, it ensures dependable performance under severe ambient conditions.
KEMET R533N418050P0K EMI Suppression Capacitor Specifications:
- Dielectric: Polypropylene film
- Plates: Metal layer deposited by evaporation under vacuum
- Winding: Non-inductive type
- Leads: Tinned wire
- Protection: Plastic case with self-extinguishing resin, flame retardant UL94 V-0
- Rated Voltage: 310 VAC (50/60 Hz)
- DC Voltage: Recommended < 630 VDC
- Capacitance Range: 0.1 - 22 µF
- Capacitance Tolerance: +20%, +10%
- Temperature Range: -40°C to +110°C
- Climatic Category: 40/110/56 IEC 60068-1
- Approval: ENEC, UL, cUL, CQC; meets AEC-Q200 for automotive
- Test Voltage: 1,900 VDC (100% screening)
- Self-healing properties, RoHS compliant, low halogen
- Lead Spacing: 15.0 - 37.5 mm
- Construction: Molded plastic case, metallized polypropylene winding
Buy the Buy KEMET EMI Suppression Capacitor Part Number R533N418050P0K Online
Purchase the KEMET R533N418050P0K EMI suppression capacitor online today. Designed for automotive and industrial use, it offers rated 310 VAC, operating up to 110°C, with UL, ENEC, and cUL approvals. Encapsulated in flame-retardant self-extinguishing resin, it features low halogen content, self-healing properties, and a wide capacitance range of 0.1 to 22 µF. Ideal for EMI filtering in power supplies, energy meters, and across-the-line applications in severe environmental conditions. Reliable, RoHS compliant, and available for quick delivery to meet your demanding projects.
Order your KEMET series R533N418050P0K automotive-grade EMI capacitor today and ensure reliable EMI suppression in harsh environments.
