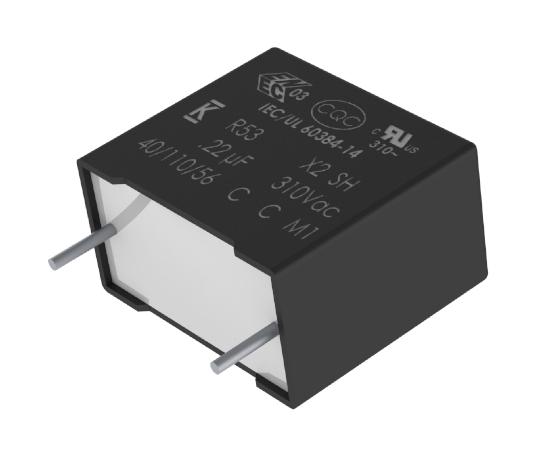

KEMET R533N418050P1M EMI Suppression Capacitor
The R53 series features miniature metallized polypropylene film capacitors designed for EMI suppression in harsh environments, including automotive applications. These X2 class capacitors operate at 310 VAC and up to 110°C, with self-healing properties and UL 94 V-0 flame retardant encapsulation. Ideal for across-the-line EMI filtering, energy meters, and power supplies, they meet automotive (AEC-Q200), ENEC, UL, and CQC standards. Available with various lead spacings and packaging options, these capacitors ensure durability and compliance in severe ambient conditions.
KEMET R533N418050P1M EMI Suppression Capacitor Specifications:
- Dielectric: Polypropylene film
- Plates: Metal layer deposited by evaporation under vacuum
- Winding: Non-inductive type
- Leads: Tinned wire
- Protection: Plastic case with self-extinguishing resin, UL94 V-0 compliant
- Rated Voltage: 310 VAC (50/60 Hz)
- Maximum DC Voltage: < 630 VDC
- Capacitance Range: 0.1 - 22 μF
- Capacitance Tolerance: +20%, +10%
- Operating Temperature Range: -40°C to +110°C
- Climatic Category: 40/110/56 IEC 60068-1
- Ramp-up Voltage: 1,900 VDC factory test
- Approvals: ENEC, UL, cUL, CQC
- Flammability: UL 94 V-0
- Self-healing Properties: Yes
- Lead Spacing: 15.0 - 37.5 mm
- Environmental Resistance: Vibration, mechanical shock tested per MIL STD-202
- Certification: Automotive (AEC-Q200)
Buy the KEMET Series R53 EMI Suppression Capacitors: R533N418050P1M
Order the KEMET R533N418050P1M EMI suppression capacitor online today. This automotive-grade, high-temperature, self-healing capacitor is ideal for harsh environments, providing reliable EMI filtering. With approvals including UL, ENEC, and CQC, it ensures industry-leading safety and durability. Available with various lead spacings and packaging options, buy now to secure superior performance for power supplies, energy meters, and across-the-line EMI suppression applications. Enjoy fast delivery and trusted quality with every purchase.
Buy KEMET R533N418050P1M now and experience unmatched reliability and automotive-grade performance.
