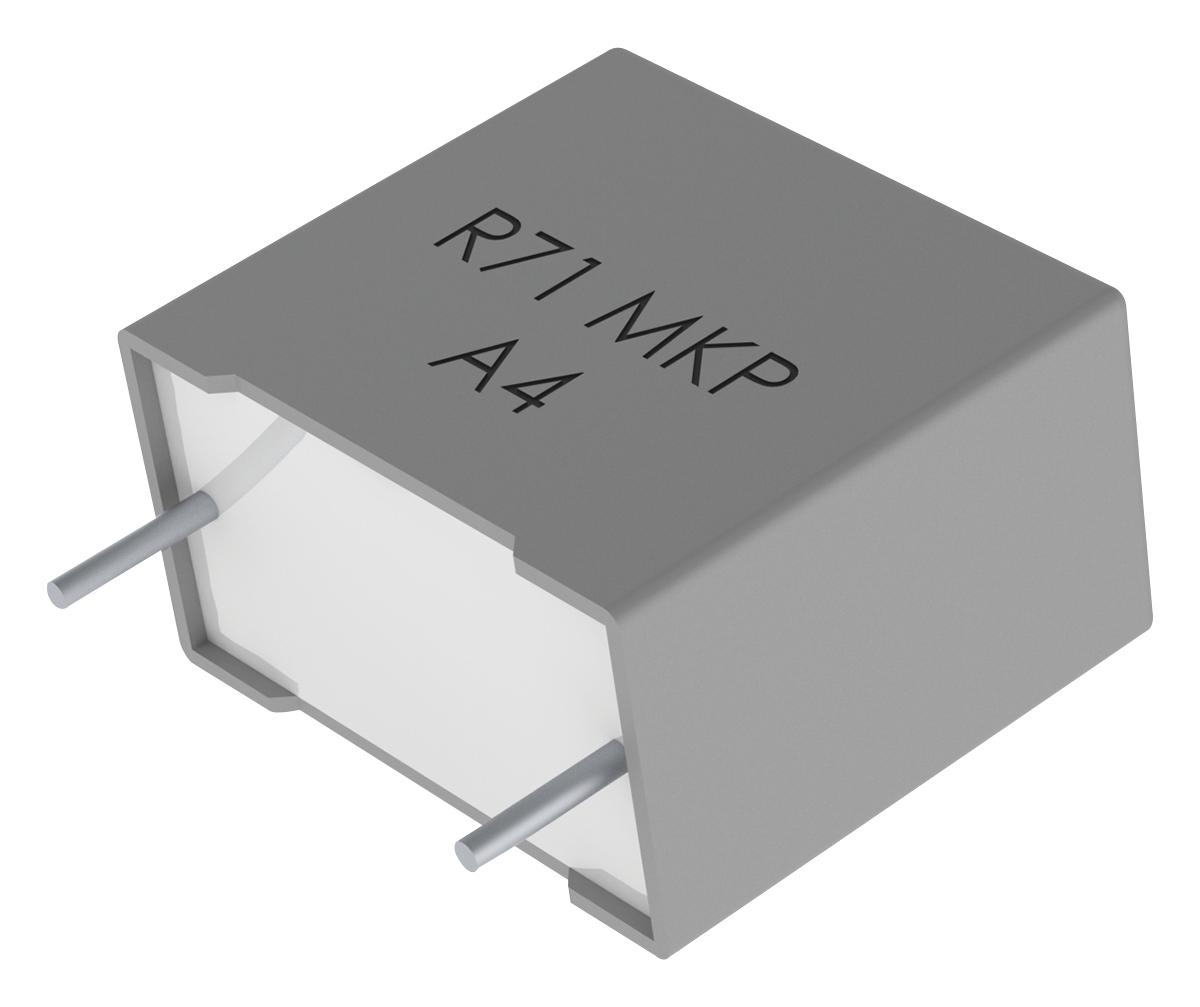

KEMET R71PI31004030K Film Capacitor
The R71P series film capacitor features metallized polypropylene dielectric, offering broad applications in power factor correction and pulse circuits. With a capacitance of 0.1 uF and a 10% tolerance, it supports high voltage applications up to 630 VDC and 275 VAC. Designed to operate between -40°C and +110°C, it features wire lead connections, RoHS compliance, and a low dissipation factor of 0.1%. This capacitor provides reliable performance in industrial and electronic systems, ensuring stability and durability under demanding conditions.
KEMET R71PI31004030K Film Capacitor Specifications:
- Dielectric: Metallized Polypropylene
- Capacitance: 0.1 uF
- Capacitance Tolerance: 10%
- Voltage DC: 630 VDC
- Voltage AC: 275 VAC
- Temperature Range: -40°C to +110°C
- Lead Spacing: 15 mm
- Diameter: 5 mm +0.2/-0.5 mm
- Length: 18 mm +0.3/-0.5 mm
- Dissipation Factor: 0.1% at 25°C
- Insulation Resistance: 100 GOhms
- Maximum Impulse Voltage: 250 V
- Resistance: 397.9 mOhms at 100 kHz
- Inductance: 10 nH
Buy the KEMET Series R71 Metallized Polypropylene Capacitor: R71P1I31004030K
Purchase the KEMET R71P1I31004030K film capacitor online for dependable performance in power correction and pulse circuit applications. This high-voltage capacitor features metallized polypropylene dielectric, 0.1 uF capacitance, 630 VDC support, and a temperature range from -40°C to +110°C. Its wire leads facilitate easy installation, while RoHS compliance ensures environmental safety. Ideal for industrial, electronic, and power systems requiring long-lasting durability and stability, this capacitor guarantees efficient operation under demanding conditions. Order now to ensure your project’s success with top-quality components.
Get KEMET R71P1I31004030K today—built for high-voltage power correction and pulse applications with reliable stability and durability.
Frequently Asked Questions
Where can I buy KEMET R71PI31004030K?
You can click on the BUY or RFQ button to purchase R71PI31004030K from an authorized KEMET distributor.
How do I troubleshoot issues or seek technical support for part R71PI31004030K?
You can download the R71PI31004030K datasheet or visit the KEMET website for support.
Who is the manufacturer of R71PI31004030K?
KEMET
