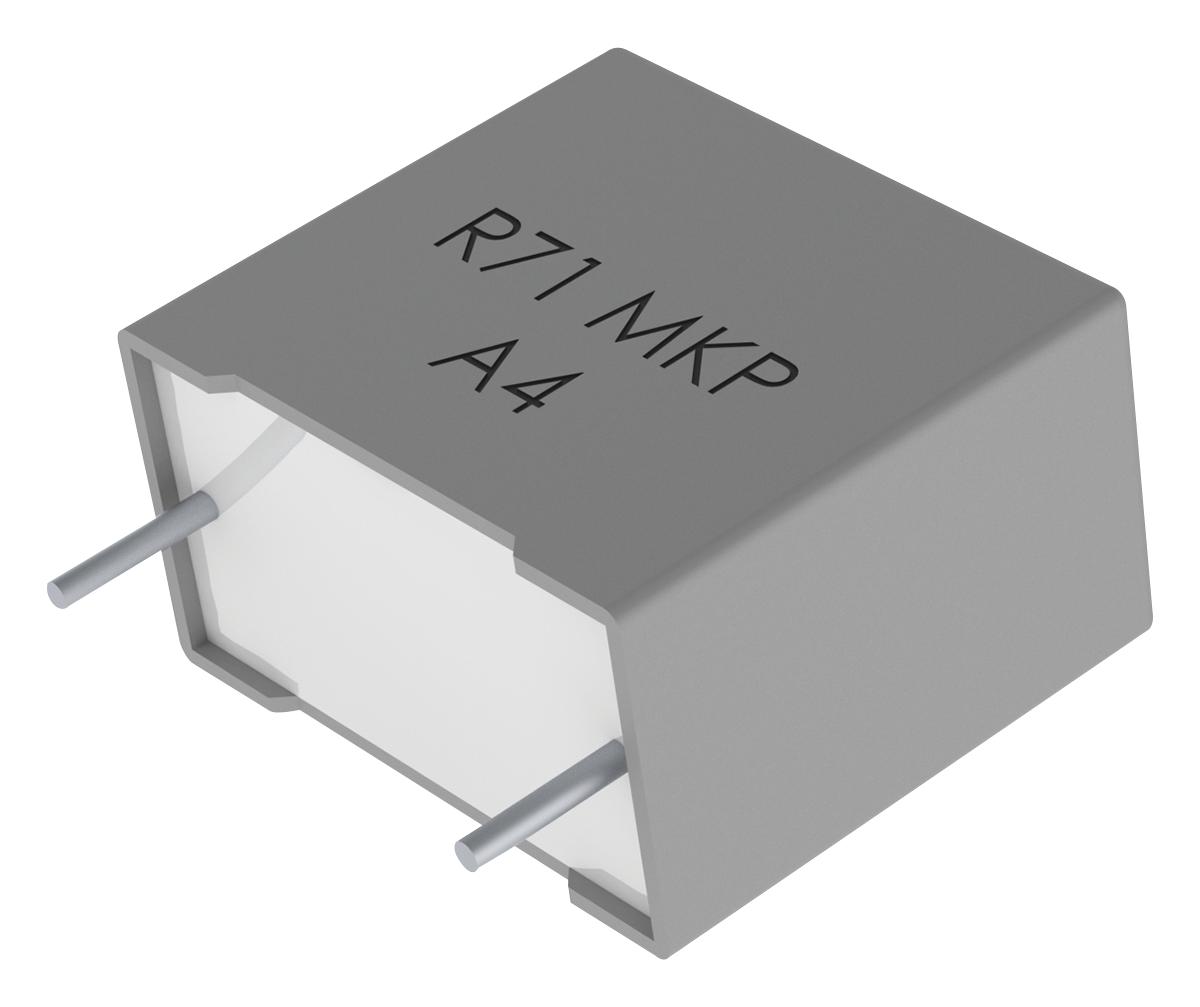

KEMET R71PI33304030K Polypropylene Film Capacitor
The R71PI33304030K is a metallized polypropylene film capacitor designed for general-purpose applications. It features a 0.33 µF capacitance, 10% tolerance, and a voltage rating of 630 VDC, with a maximum operating temperature of 105°C. The capacitor includes wire leads with a lead spacing of 15mm and is suitable for PFC and pulse applications. Its robust dielectric and insulation resistance of 100 GOhms ensure reliable performance across a wide temperature range from -40°C to +110°C, making it ideal for power electronics and industrial circuits.
KEMET R71PI33304030K Polypropylene Film Capacitor Specifications:
- Series: R71
- Dielectric: Metallized Polypropylene
- Type: Radial
- Features: PFC and Pulse
- RoHS: Yes
- Lead: Wire Leads
- Capacitance: 0.33 µF
- Tolerance: ±10%
- Voltage DC: 630 VDC
- Voltage AC: 275 VAC
- Temperature Range: -40°C to +110°C
- Rated Temperature: 105°C
- Insulation Resistance: 100 GOhms
- Dissipation Factor: 0.1% at 25°C
- Lead Spacing: 15 mm
- Dimensions: Length 18 mm ±0.5 mm, Diameter 8.5 mm +0.2/-0.5 mm
- Packaging: Bulk, Bag
- Resistance: 168.8 mOhms at 100 kHz
- Ripple Current: 82.5 mA at 85°C
- Inductance: 10 nH
Buy the KEMET R71PI33304030K – Reliable Polypropylene Film Capacitor for Industrial Applications
Secure the KEMET R71PI33304030K online today and enhance your power electronics with this high-quality metallized polypropylene film capacitor. Designed for durability and performance, it offers 0.33 µF capacitance at 630 VDC with a maximum temperature of 105°C. Its radial lead configuration simplifies installation, making it suitable for PFC and pulse applications in industrial machinery and power supplies. Purchase now for reliable operation, excellent insulation resistance, and long-lasting performance in demanding environments.
Buy KEMET R71PI33304030K now and experience unmatched reliability and performance in power electronics and industrial circuits.
Frequently Asked Questions
Where can I buy KEMET R71PI33304030K?
You can click on the BUY or RFQ button to purchase R71PI33304030K from an authorized KEMET distributor.
How do I troubleshoot issues or seek technical support for part R71PI33304030K?
You can download the R71PI33304030K datasheet or visit the KEMET website for support.
Who is the manufacturer of R71PI33304030K?
KEMET
