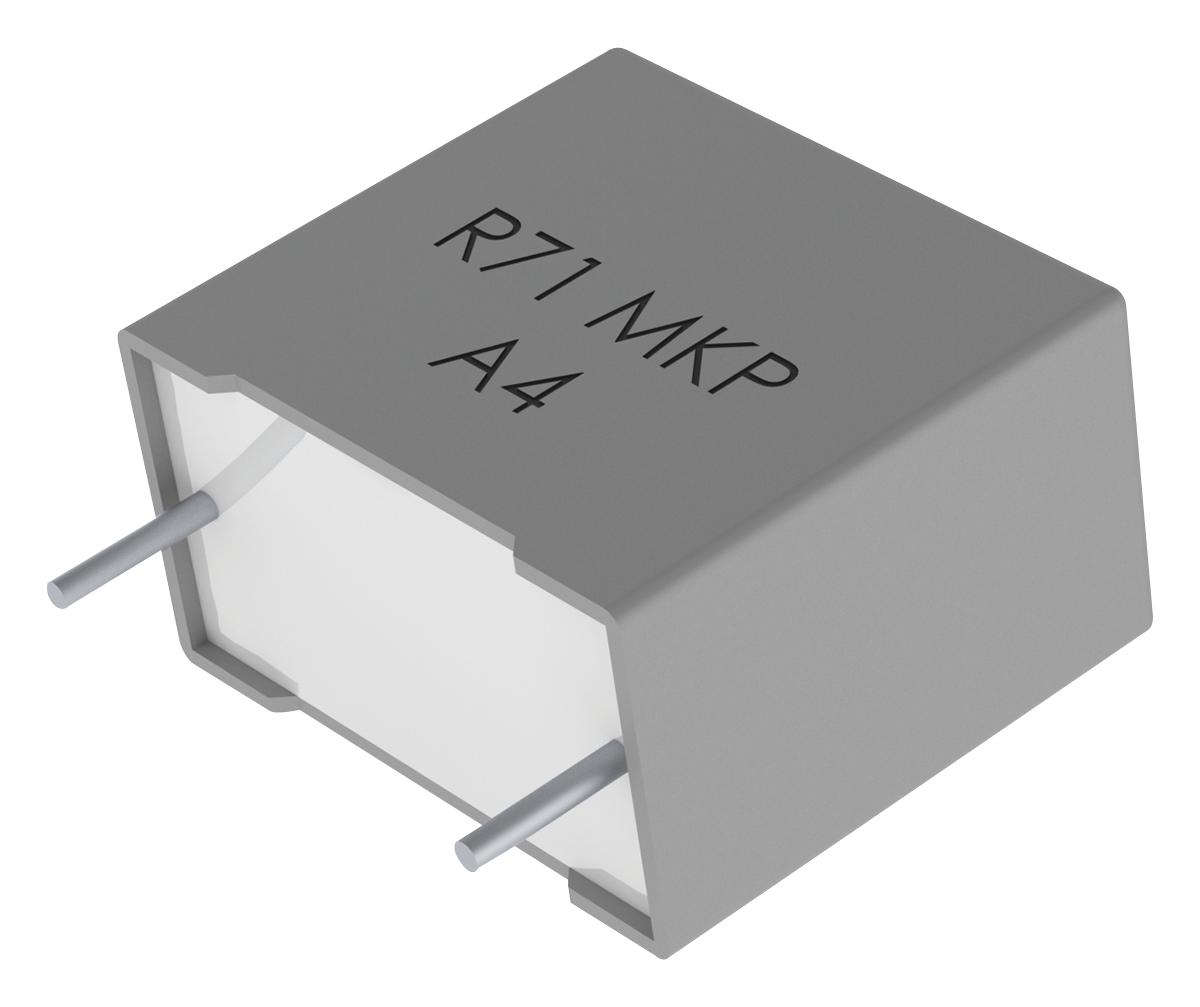

KEMET R71PN34704030K General Purpose Film Capacitor
The R71PN34704030K is a high-quality metallized polypropylene film capacitor with a capacitance of 0.47 microfarads (μF), a voltage rating of 630 VDC, and a temperature range of -40°C to +110°C. Designed for general-purpose applications, it features radial lead configuration, RoHS compliance, and low dissipation factor of 0.1%. Ideal for pulse and power factor correction (PFC) applications, it offers reliable performance with a dielectric made from metallized polypropylene, ensuring long-term stability and durability in demanding electrical environments.
KEMET R71PN34704030K General Purpose Film Capacitor Specifications:
- Dielectric: Metallized Polypropylene
- Capacitance: 0.47 μF
- Capacitance Tolerance: ±10%
- Voltage DC: 630 VDC
- Voltage AC: 275 VAC
- Temperature Range: -40°C to +110°C
- Dimensions: Length 26.5mm +0.3/-0.5mm, Lead Spacing 22.5mm ±0.4mm, Thickness 7mm +0.2/0.6mm
- Dissipation Factor: 0.1% at 25°C
- Insulation Resistance: 63.83 GOhms
- RoHS Compliant: Yes
- Packaging: Bulk, Bag
- Maximum Voltage Surge: 160 V
- Lead Type: Wire Leads
- Rated Temperature: 105°C
- Deringing: 4%/°C derating above 105°C
- Inductance: 18 nH
- Resistance: 203.2 mOhms at 10kHz
Buy the KEMET Series R71 Metalized Polypropylene Capacitor: R71PN34704030K
Purchase the KEMET R71PN34704030K online today to ensure reliable operation in your power and pulse applications. This metallized polypropylene capacitor offers 0.47μF capacitance, 630VDC voltage, and temperature resilience from -40°C to +110°C. Its radial lead design simplifies installation, while RoHS compliance guarantees environmental safety. Ideal for power factor correction, pulse handling, and demanding electrical environments, this capacitor provides exceptional performance, durability, and stability, making it the best choice for your electronic and industrial projects.
Get KEMET R71PN34704030K today—built for high-voltage applications and long-lasting durability.
Frequently Asked Questions
Where can I buy KEMET R71PN34704030K?
You can click on the BUY or RFQ button to purchase R71PN34704030K from an authorized KEMET distributor.
How do I troubleshoot issues or seek technical support for part R71PN34704030K?
You can download the R71PN34704030K datasheet or visit the KEMET website for support.
Who is the manufacturer of R71PN34704030K?
KEMET
