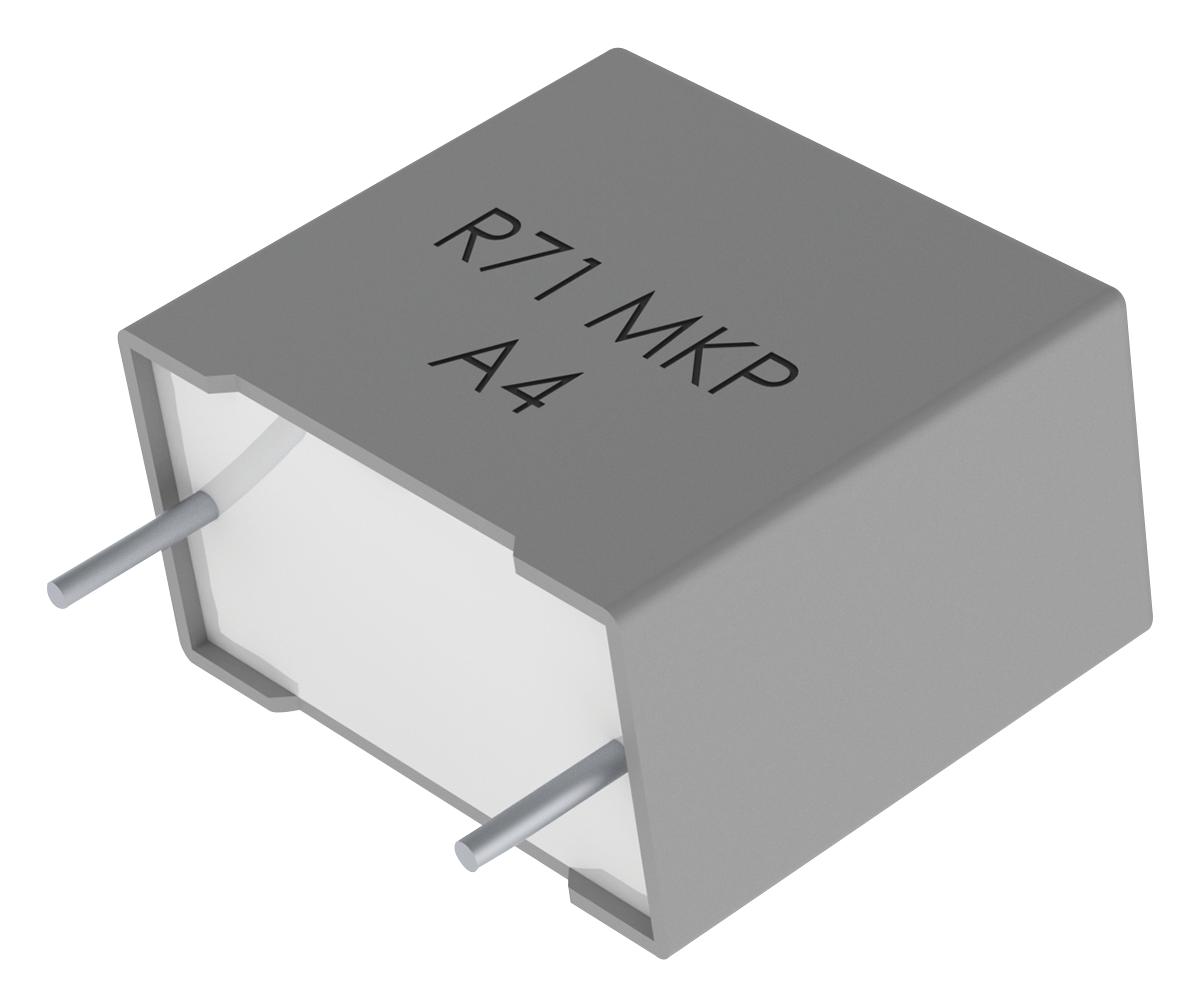

KEMET R71VN41004030K Metallized Polypropylene Capacitor
The R71VN41004030K is a metallized polypropylene film capacitor designed for general-purpose applications, offering high voltage and stability. It features a capacitance of 1uF with a tolerance of 10%, rated at 520 VDC and 105°C operating temperature. With wire leads and a radial style, this capacitor supports power factor correction and pulse operations. Its robust construction includes RoHS compliance, a dissipation factor of 0.1%, and an insulation resistance of 30 GOhms, making it suitable for demanding electronic circuits in industrial and commercial settings.
KEMET R71VN41004030K Metallized Polypropylene Capacitor Specifications:
- Capacitance: 1uF
- Capacitance Tolerance: 10%
- Voltage DC: 520 VDC
- Voltage AC: 250 VAC
- Operating Temperature Range: -40°C to +110°C
- Rated Temperature: 105°C
- Dissipation Factor: 0.1% at 25°C
- Insulation Resistance: 30 GOhms
- Lead Spacing: 22.5mm
- Dimensions: Length 26.5mm +0.3/-0.5mm, Diameter 10mm +0.2/-0.5mm
- Wire Leads: Yes
- RoHS Compliant: Yes
- Packaging: Bulk, 300 units per bag
- Series: R71
- Features: PFC and Pulse support
- Dissipation Derating: 4%/°C above 105°C
- Weight: 6.449 g
- Leakage Current Max dV/dt: 120 V/μs
Buy the KEMET R71VN41004030K – Reliable Capacitor for Industrial Applications
Enhance your electronic projects with the high-quality KEMET R71VN41004030K metallized polypropylene capacitor. Designed for general purpose, it supports high voltage, pulse, and power correction applications. Its 1uF capacitance, 520 VDC rating, and temperature stability up to 105°C ensure reliable performance. Perfect for industrial, commercial, and electronic system use, this capacitor features wire leads, RoHS compliance, and robust construction. Purchase online now to ensure your circuits operate with professional-grade components delivering longevity and maximum efficiency.
Buy KEMET R71VN41004030K now and experience unmatched reliability and performance for power correction and pulse circuit needs.
Frequently Asked Questions
Where can I buy KEMET R71VN41004030K?
You can click on the BUY or RFQ button to purchase R71VN41004030K from an authorized KEMET distributor.
How do I troubleshoot issues or seek technical support for part R71VN41004030K?
You can download the R71VN41004030K datasheet or visit the KEMET website for support.
Who is the manufacturer of R71VN41004030K?
KEMET
